356FCA
Lumen X® AMP Oval CA Title 13 Auxiliary Mid-Turn Light w / Reflex, Clear Lens, flange, poly bag
356FCA
Lumen X® AMP Oval CA Title 13 Auxiliary Mid-Turn Light w / Reflex, Clear Lens, flange, poly bag

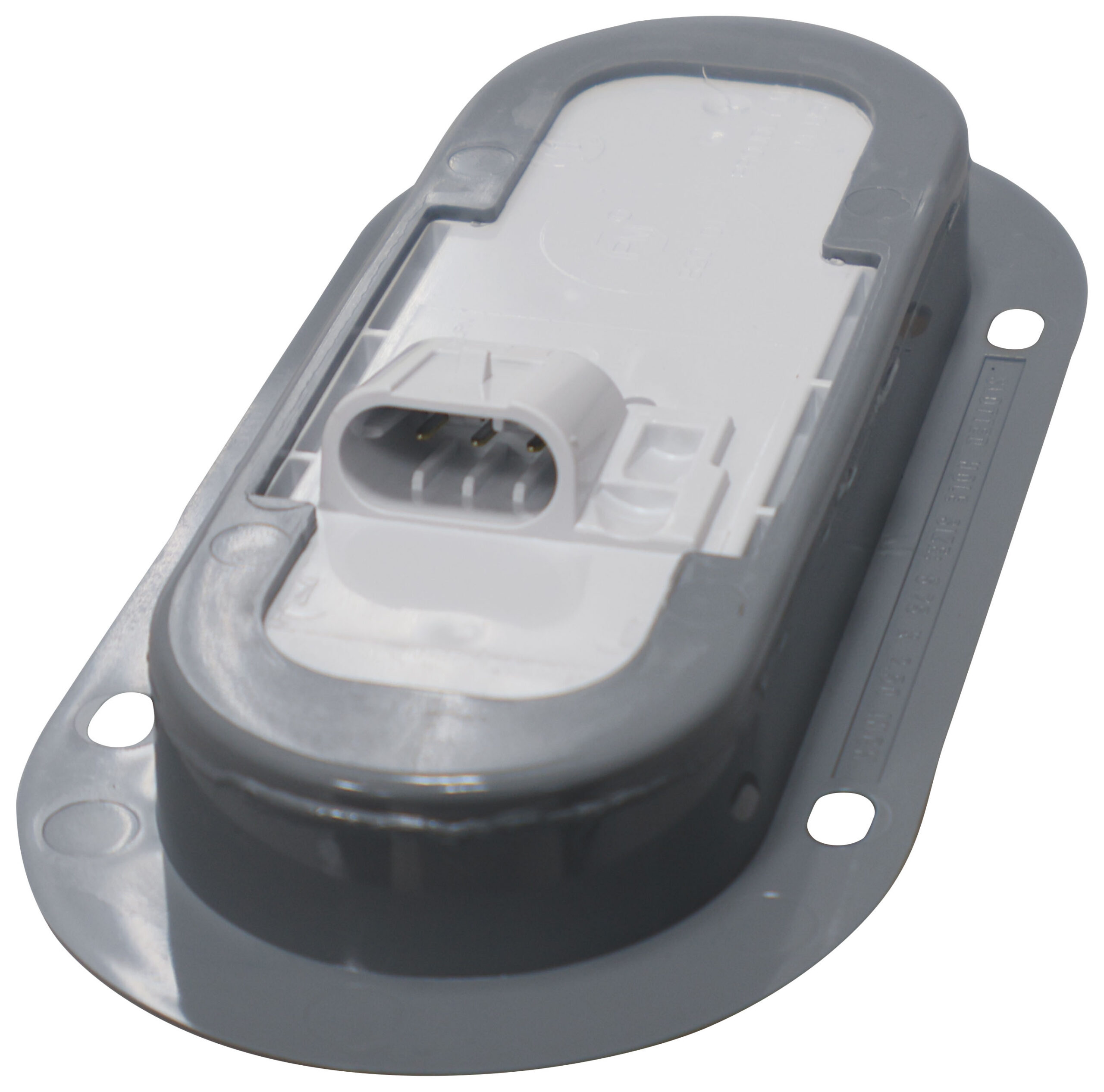

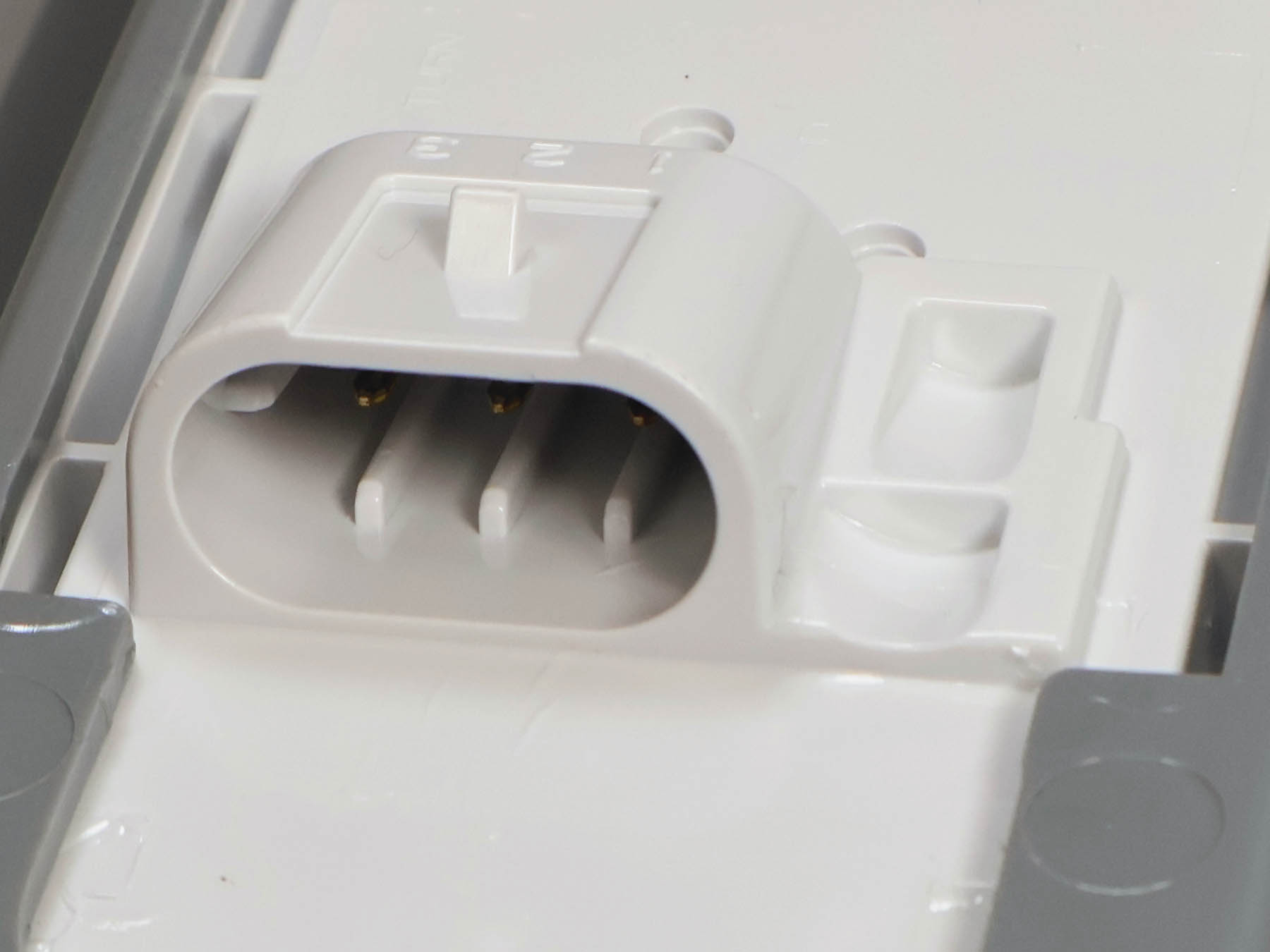

- 30° angle, 3-wire, silicone-sealed AMP receptacle integrated into housing.
- 356KA-MP kit contains light, 421-18 grommet, and 417-491MP conversion pigtail.
- 356KAF-MP kit contains light and 417-491MP conversion pigtail
- Auxiliary Mid-Turn Light w / Reflex
- Meets SAE J914B, SAE J2039 specifications.
- Meets State of California Title 13 requirements.
- Two-function light provides auxiliary mid-turn and intermediate side marker light and side reflector.
Standard Order Quantity: 6
| 356KAF-MP | Lumen X® AMP Oval CA Title 13 Auxiliary Mid-Turn Light w / Reflex, flange, kit, poly bag |
| 356KA-MP | Lumen X® AMP Oval CA Title 13 Auxiliary Mid-Turn Light w / Reflex, grommet, kit, poly bag |
| M356FCA | Lumen X® AMP Oval CA Title 13 Auxiliary Mid-Turn Light w / Reflex, Clear Lens, flange, bulk pack |
| M356CA | Lumen X® AMP Oval CA Title 13 Auxiliary Mid-Turn Light w / Reflex, Clear Lens, grommet, bulk pack |
| 356CA | Lumen X® AMP Oval CA Title 13 Auxiliary Mid-Turn Light w / Reflex, Clear Lens, grommet, poly bag |
| M356AF | Lumen X® AMP Oval CA Title 13 Auxiliary Mid-Turn Light w / Reflex, flange, bulk pack |
| M356A | Lumen X® AMP Oval CA Title 13 Auxiliary Mid-Turn Light w / Reflex, grommet, bulk pack |
| 356AF | Lumen X® AMP Oval CA Title 13 Auxiliary Mid-Turn Light w / Reflex, flange, poly bag |
| 356A | Lumen X® AMP Oval CA Title 13 Auxiliary Mid-Turn Light w / Reflex, grommet, poly bag |
| Length | 6.5 Inch |
| Lens Color | Amber |
| Shape | Oval |
| Width | 2.5 Inch |
| Mounting Type | Flange |
| Voltage | 12 Volts |
| Container Type | Poly Bag |
| Regulatory Compliance | DOT + SAE |
| Bulb/Diode Count | 15 |
| termination | AMP |
| Light Color | Amber |
| Multi-Volt | No |
| Bulb Technology | LED |
| Maximum Voltage | 16 Volts |
| Minimum Voltage | 9 Volts |
| Height | 2.31 Inch |
| Integral Reflex | Yes |
| Submersible | Yes |
| Grote Interchange | 54193 |
| Truck-Lite Interchange | 60315Y |
