M356CA
Lumen X ® AMP Oval CA Title 13 Auxiliary Mid-Turn Light w/ Reflex; grommet; bulk pack
M356CA
Lumen X ® AMP Oval CA Title 13 Auxiliary Mid-Turn Light w/ Reflex; grommet; bulk pack

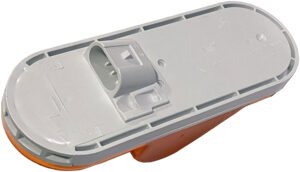

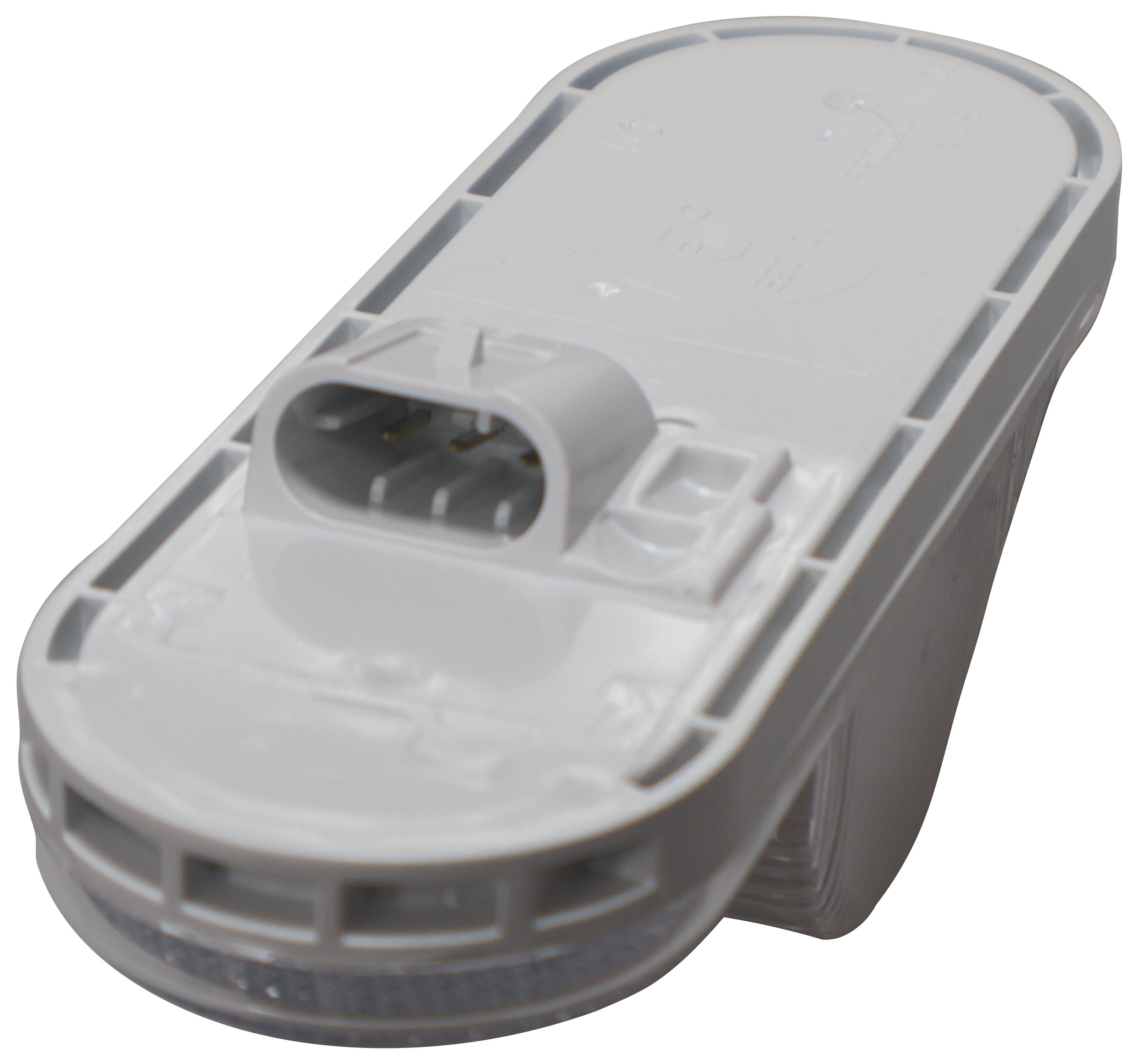

- 30 degree angle, 3-wire, silicone-sealed AMP receptacle integrated into housing.
- 356KA-MP kit contains light, 421-18 grommet, and 417-491MP conversion pigtail.
- 356KAF-MP kit contains light and 417-491MP conversion pigtail
- Auxiliary Mid-Turn Light w/ Reflex
- Meets SAE J914B, SAE J2039 specifications.
- Meets State of California Title 13 requirements.
- Two-function light provides auxiliary mid-turn and intermediate side marker light and side reflector.
Standard Order Quantity: 50
| 356KAF-MP | Lumen X ® AMP Oval CA Title 13 Auxiliary Mid-Turn Light w/ Reflex; flange kit; poly bag |
| 356KA-MP | Lumen X ® AMP Oval CA Title 13 Auxiliary Mid-Turn Light w/ Reflex; grommet kit; poly bag |
| M356FCA | Lumen X ® AMP Oval CA Title 13 Auxiliary Mid-Turn Light w/ Reflex; flange; bulk pack |
| 356FCA | Lumen X ® AMP Oval CA Title 13 Auxiliary Mid-Turn Light w/ Reflex; flange; poly bag |
| 356CA | Lumen X ® AMP Oval CA Title 13 Auxiliary Mid-Turn Light w/ Reflex; grommet; poly bag |
| M356AF | Lumen X ® AMP Oval CA Title 13 Auxiliary Mid-Turn Light w/ Reflex; flange; bulk pack |
| M356A | Lumen X ® AMP Oval CA Title 13 Auxiliary Mid-Turn Light w/ Reflex; grommet; bulk pack |
| 356AF | Lumen X ® AMP Oval CA Title 13 Auxiliary Mid-Turn Light w/ Reflex; flange; poly bag |
| 356A | Lumen X ® AMP Oval CA Title 13 Auxiliary Mid-Turn Light w/ Reflex; grommet; poly bag |

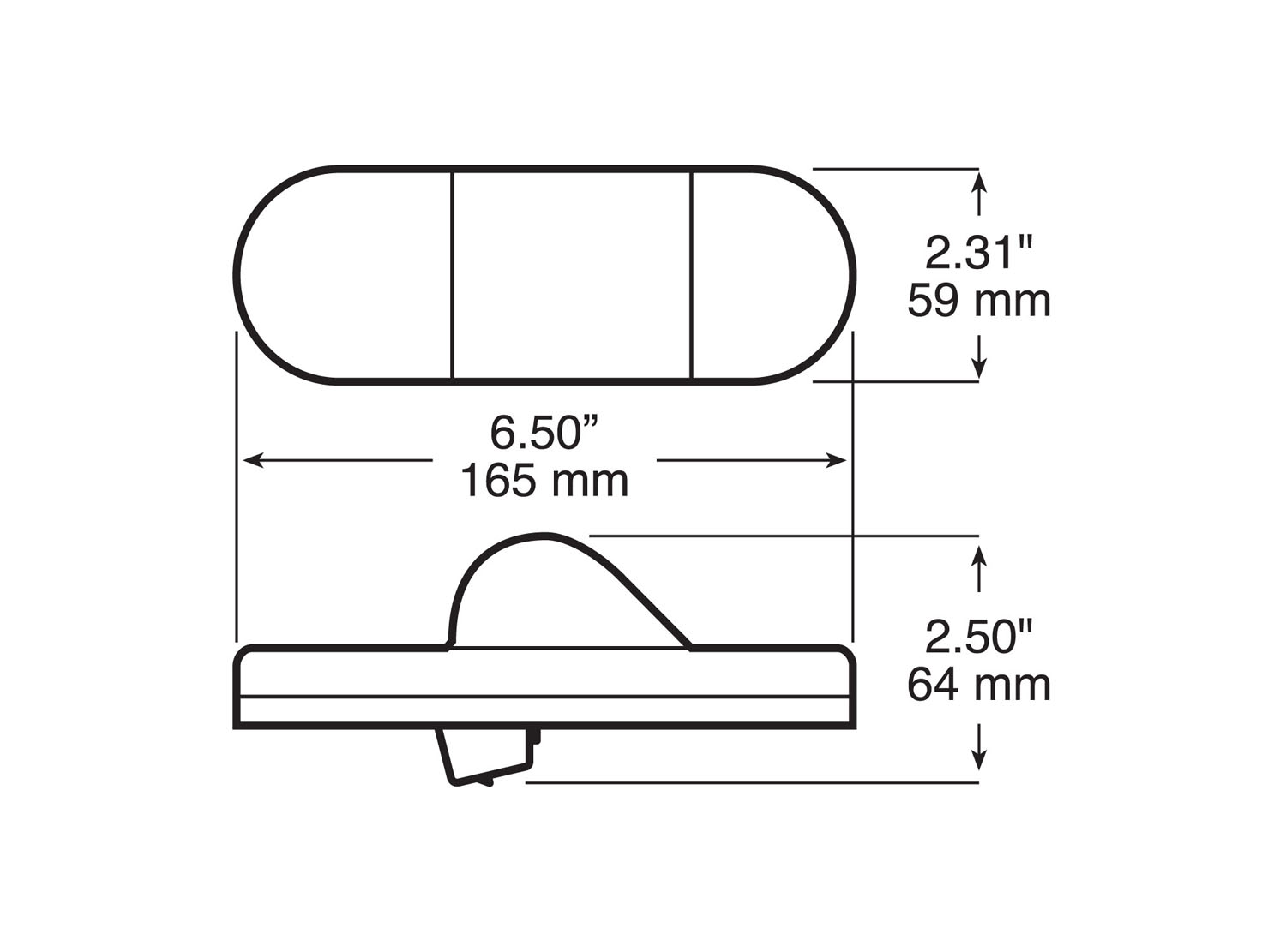

| Length | 6.5 Inch |
| Lens Color | Amber |
| Shape | Oval |
| Width | 2.5 Inch |
| Mounting Type | Grommet |
| Voltage | 12 Volts |
| Container Type | Bulk Pack |
| Regulatory Compliance | DOT + SAE |
| Bulb/Diode Count | 15 |
| termination | AMP |

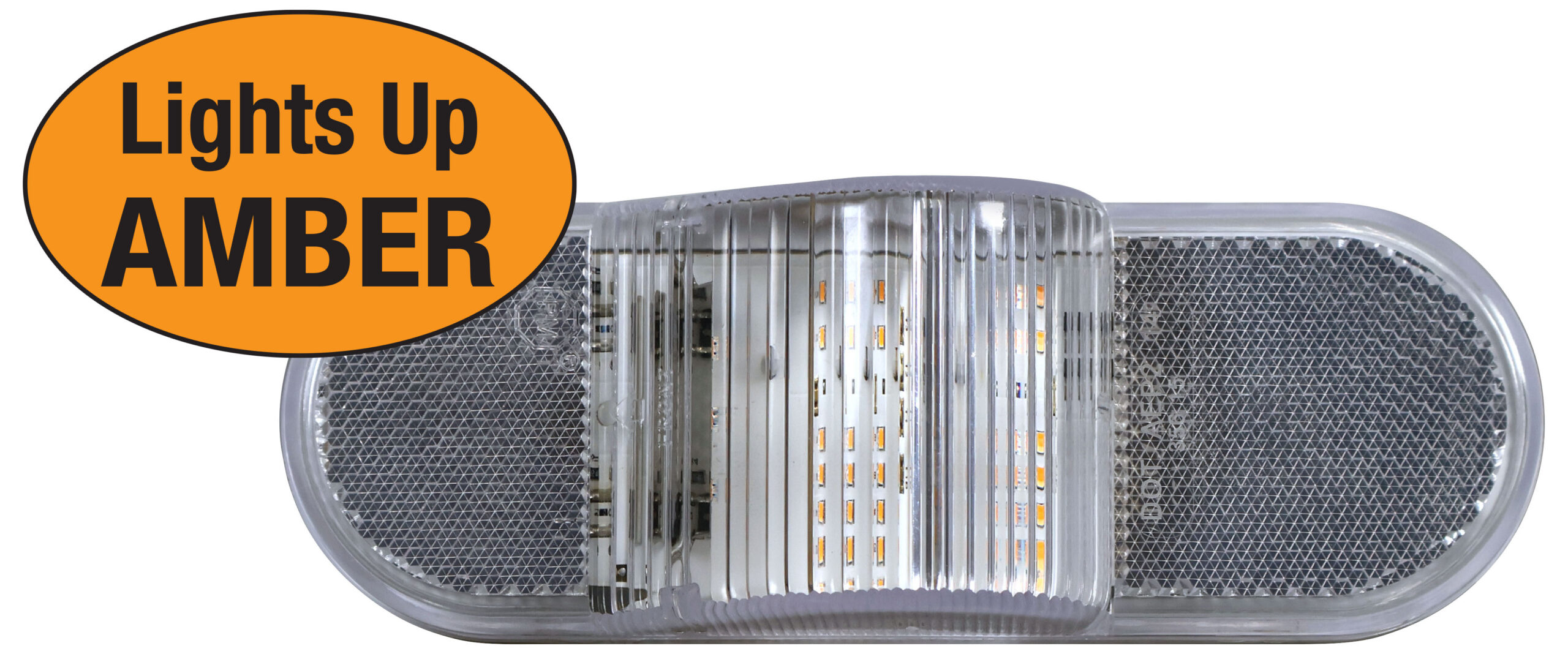

| Light Color | Amber |
| Multi-Volt | No |
| Bulb Technology | LED |
| Maximum Voltage | 16 Volts |
| Minimum Voltage | 9 Volts |
| Height | 2.31 Inch |
| Integral Reflex | Yes |
| Submersible | Yes |
| Grote Interchange | 54193 |
| Truck-Lite Interchange | 60315Y |
