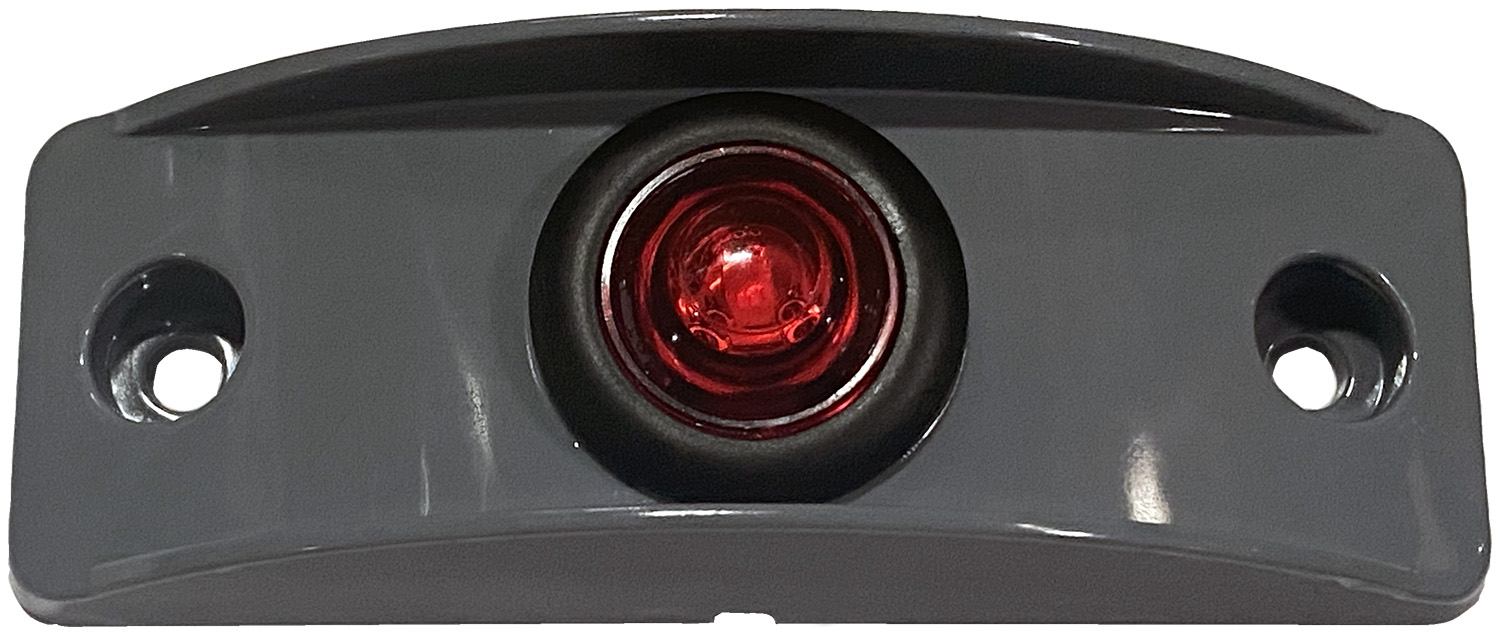

177BKR
3/4 inch PC-Rated Clearance & Side Marker; red bracket kit; poly bag
177BKR
3/4 inch PC-Rated Clearance & Side Marker; red bracket kit; poly bag

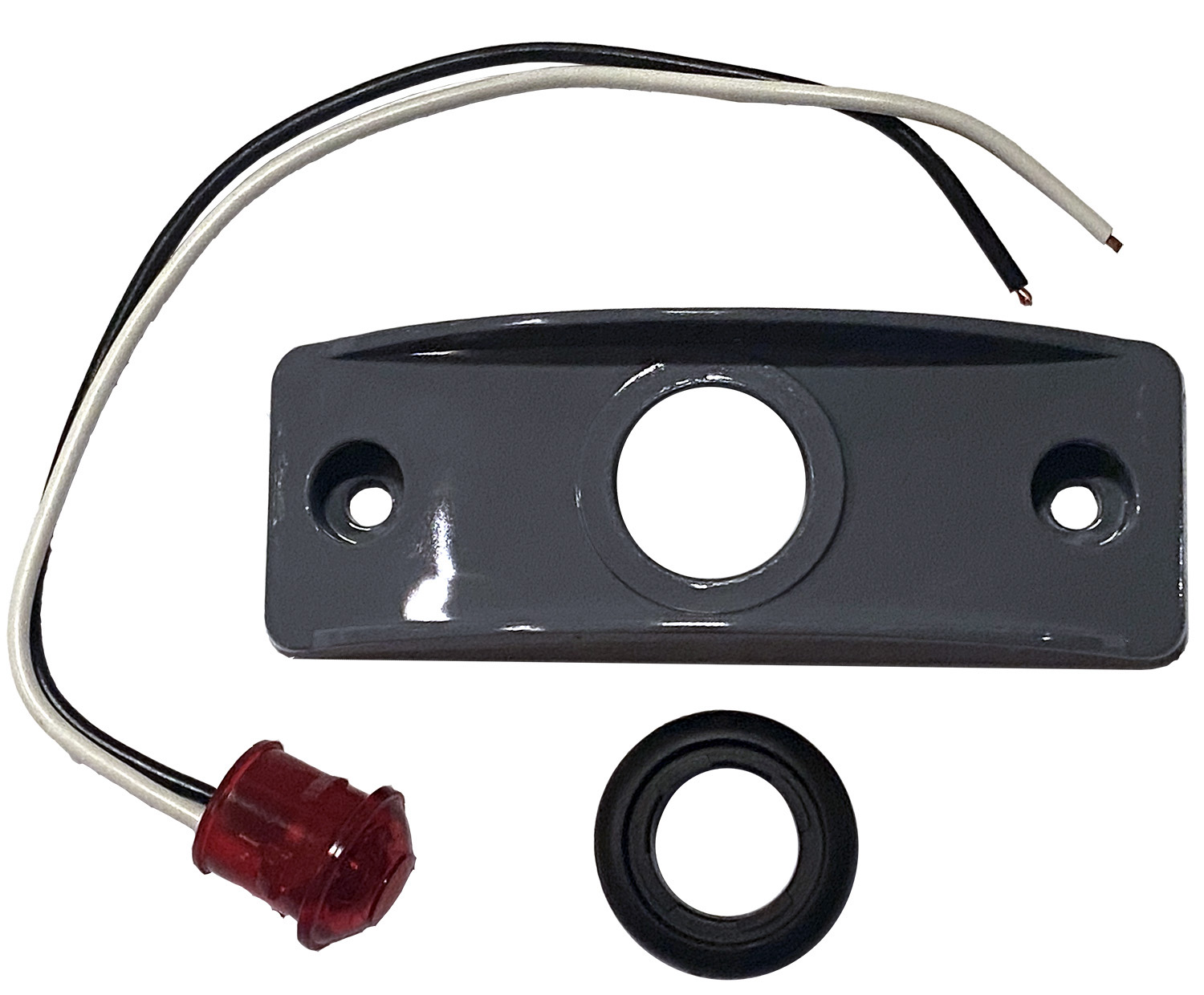

- 177BKA and 177BKR kits include light, grommet, and 176-10 surface-mount bracket.
- Clearance & Side Marker
- Compact single diode design fits 0.75" hole.
- Defender System approval applies to AMP & .180 bullet versions.
- Does not require “Top” positioning.
- Functions as both clearance and side marker when properly mounted.
- Hardwired 8” leads available with multiple termination options.
- Has theft-deterrent security feature when properly mounted.
- Includes rubber mounting grommet.
- See clear lens versions on Peterson LED Catalog page 46.
Standard Order Quantity: 1
| 177CR-BT2 | PC-Rated 3/4 inch Clearance & Side Marker; red clear .180 bullets; poly bag |
| 177CA-BT2 | PC-Rated 3/4 inch Clearance & Side Marker; amber clr .180 bullets; poly bag |
| 177BKA | 3/4 inch PC-Rated Clearance & Side Marker; amber bracket kit; poly bag |
| V177R-BT2 | 3/4 inch PC-Rated Clearance & Side Marker; red .180 bullets; Viz Pack |
| V177R | 3/4 inch PC-Rated Clearance & Side Marker; red; Viz Pack |
| V177A-BT2 | 3/4 inch PC-Rated Clearance & Side Marker; amber .180 bullets; Viz Pack |
| V177A | 3/4 inch PC-Rated Clearance & Side Marker; amber; Viz Pack |
| 177R-AMP | 3/4 inch PC-Rated Clearance & Side Marker; red, AMP; poly bag |
| 177A-AMP | 3/4 inch PC-Rated Clearance & Side Marker; amber, AMP; poly bag |
| M177R-BT2 | 3/4 inch PC-Rated Clearance & Side Marker; red .180 bullets; bulk pack |
| M177R | 3/4 inch PC-Rated Clearance & Side Marker; red; bulk pack |
| M177R-P | 3/4 inch PC-Rated Clearance & Side Marker; red, PL10 female; bulk pack |
| 177A-BT2 | 3/4 inch PC-Rated Clearance & Side Marker; amber .180 bullets; poly bag |
| M177CR-BT2 | PC-Rated 3/4 inch Clearance & Side Marker; red clear .180 bullets; bulk pack |
| M177A-P | 3/4 inch PC-Rated Clearance & Side Marker; amber, PL10 female; bulk pack |
| 177R-BT2 | 3/4 inch PC-Rated Clearance & Side Marker; red .180 bullets; poly bag |
| M177CA-BT2 | PC-Rated 3/4 inch Clearance & Side Marker; amber clr .180 bullets; bulk pack |
| 177R | 3/4 inch PC-Rated Clearance & Side Marker; red; poly bag |
| M177A-BT2 | LED 3/4 inch PC-Rated Clearance/Marker Light; amber w/.180 bullets; bulk pack |
| 177A | 3/4 inch PC-Rated Clearance & Side Marker; amber; poly bag |
| M177A | 3/4 inch PC-Rated Clearance & Side Marker; amber; bulk pack |
| M177R-AMP | 3/4 inch PC-Rated Clearance & Side Marker; red, AMP; bulk pack |
| M177A-AMP | 3/4 inch PC-Rated Clearance & Side Marker; amber, AMP; bulk pack |
| Maximum Voltage | 16 Volts |
| Minimum Voltage | 9 Volts |

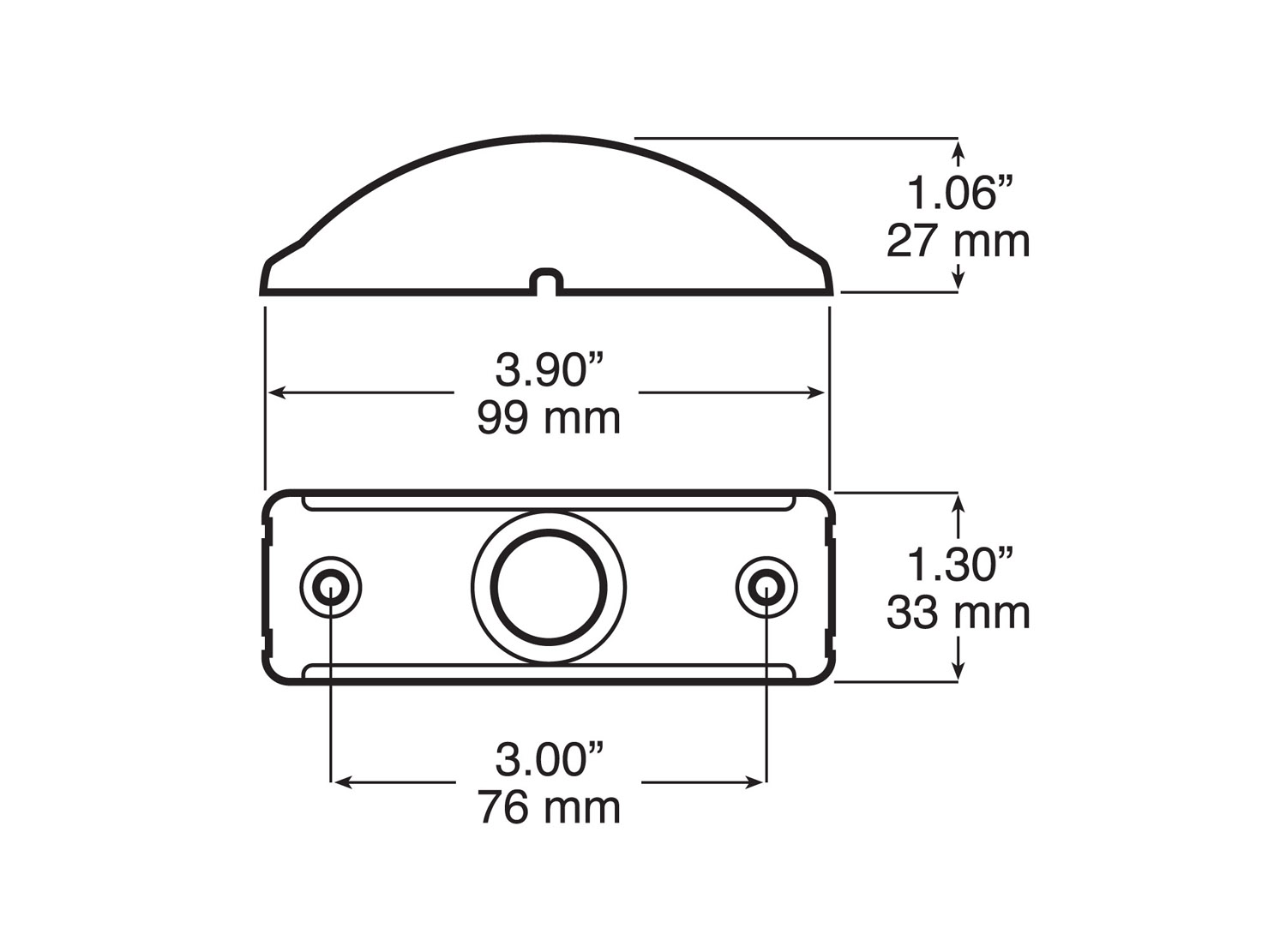

| Length | 1.06 Inch |
| Voltage | 12 Volts |
| Width | 3.9 Inch |
| Integral Reflex | No |
| Mounting Type | Grommet |
| PC Rated | Yes |
| Light Color | Red |
| Bulb/Diode Count | 1 |
| Lens Color | Red |
| Bulb Technology | LED |
| Regulatory Compliance | DOT |
| Shape | 3/4-inch Round |
| Container Type | Poly Bag |
| Multi-Volt | No |
| Submersible | Yes |
| Height | 1.30 Inch |
