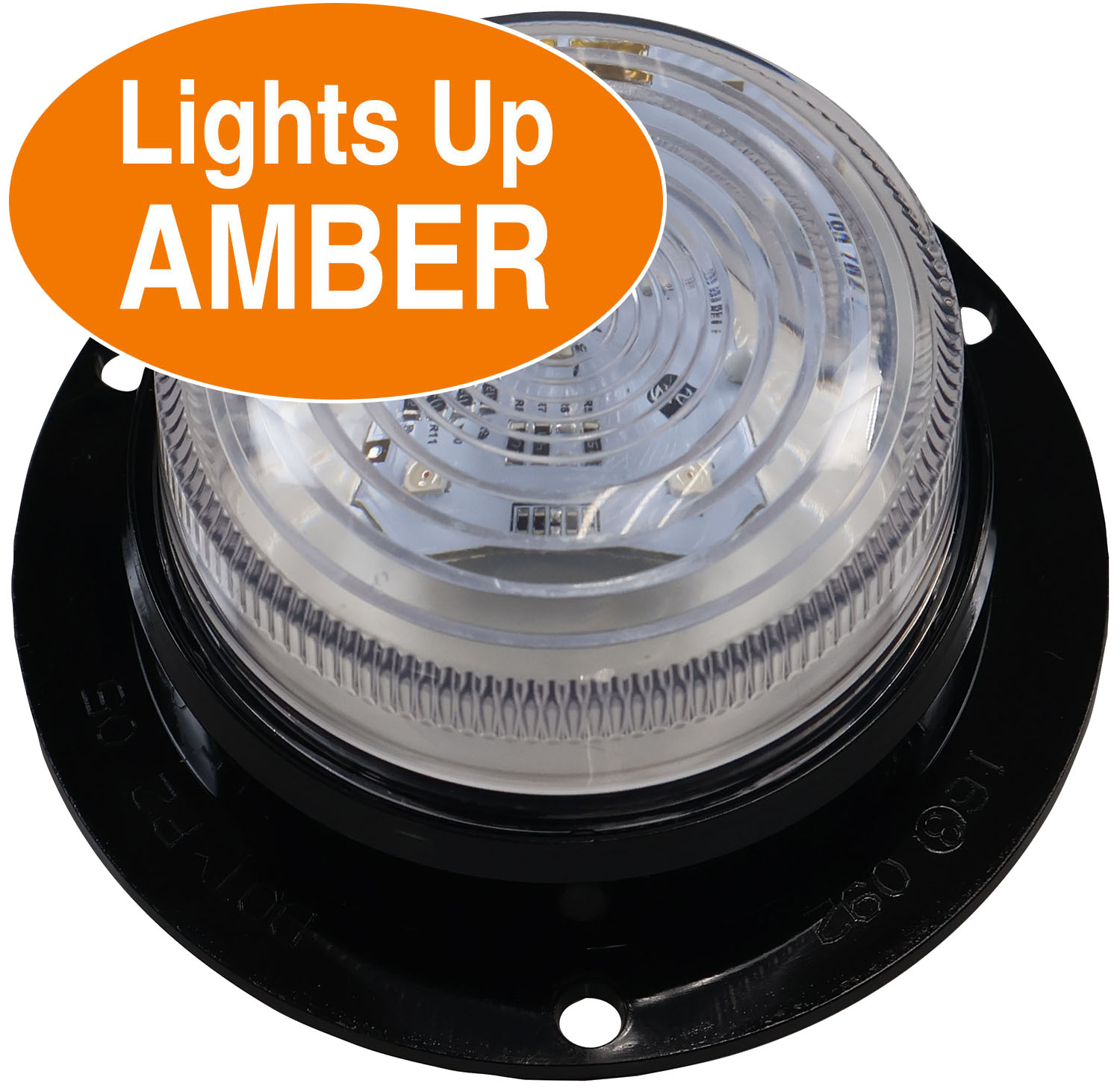

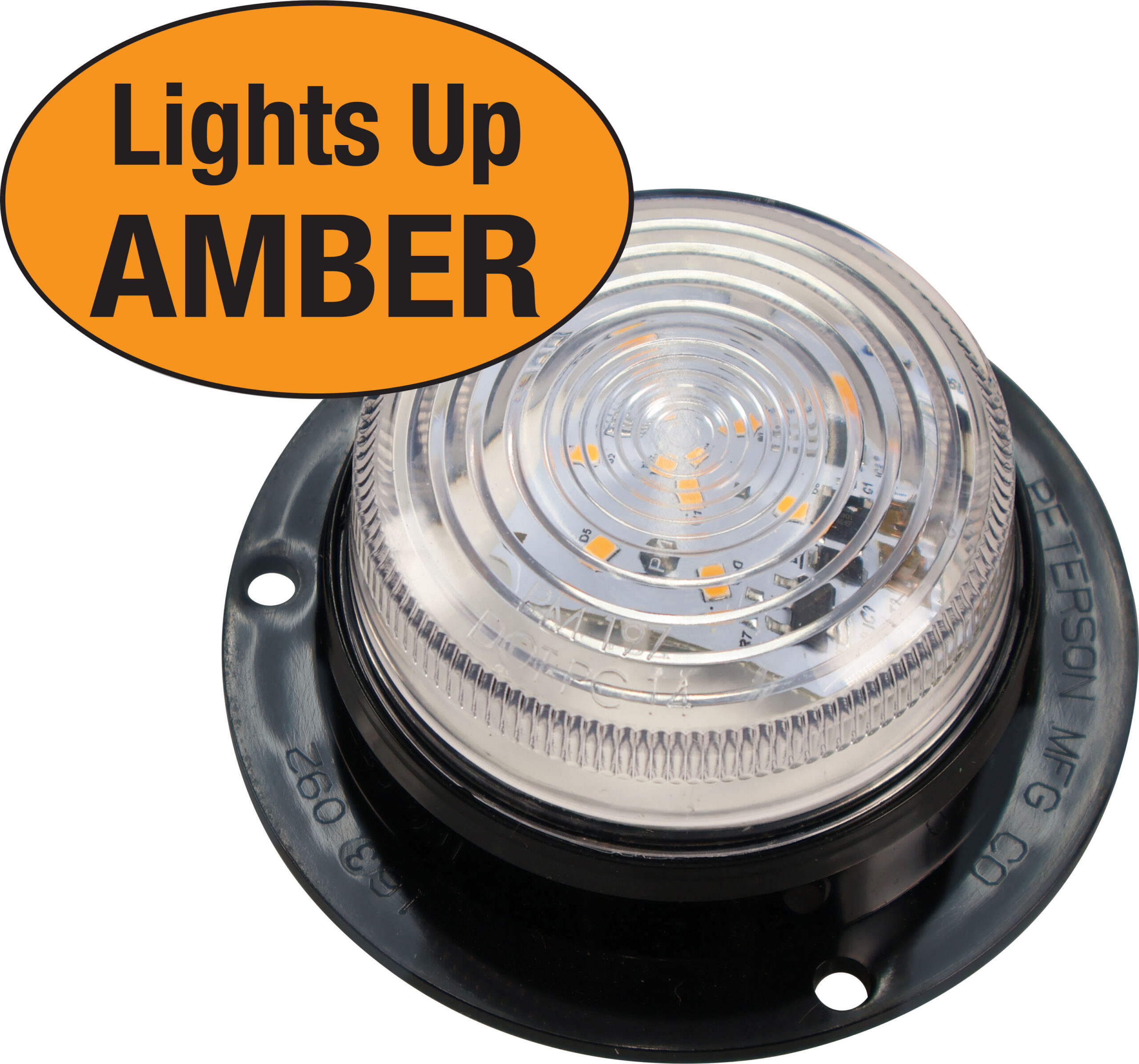

207SCA
LED Marker/Clearance PC-Rated, Round Clear Lens AMP w/ SM Flange 2.5″
207SCA
LED Marker/Clearance PC-Rated, Round Clear Lens AMP w/ SM Flange 2.5″
LED MARKER/CLEARANCE
- Clearance & Side Marker Light
- PC-rated light functions as both clearance and side marker when properly mounted.

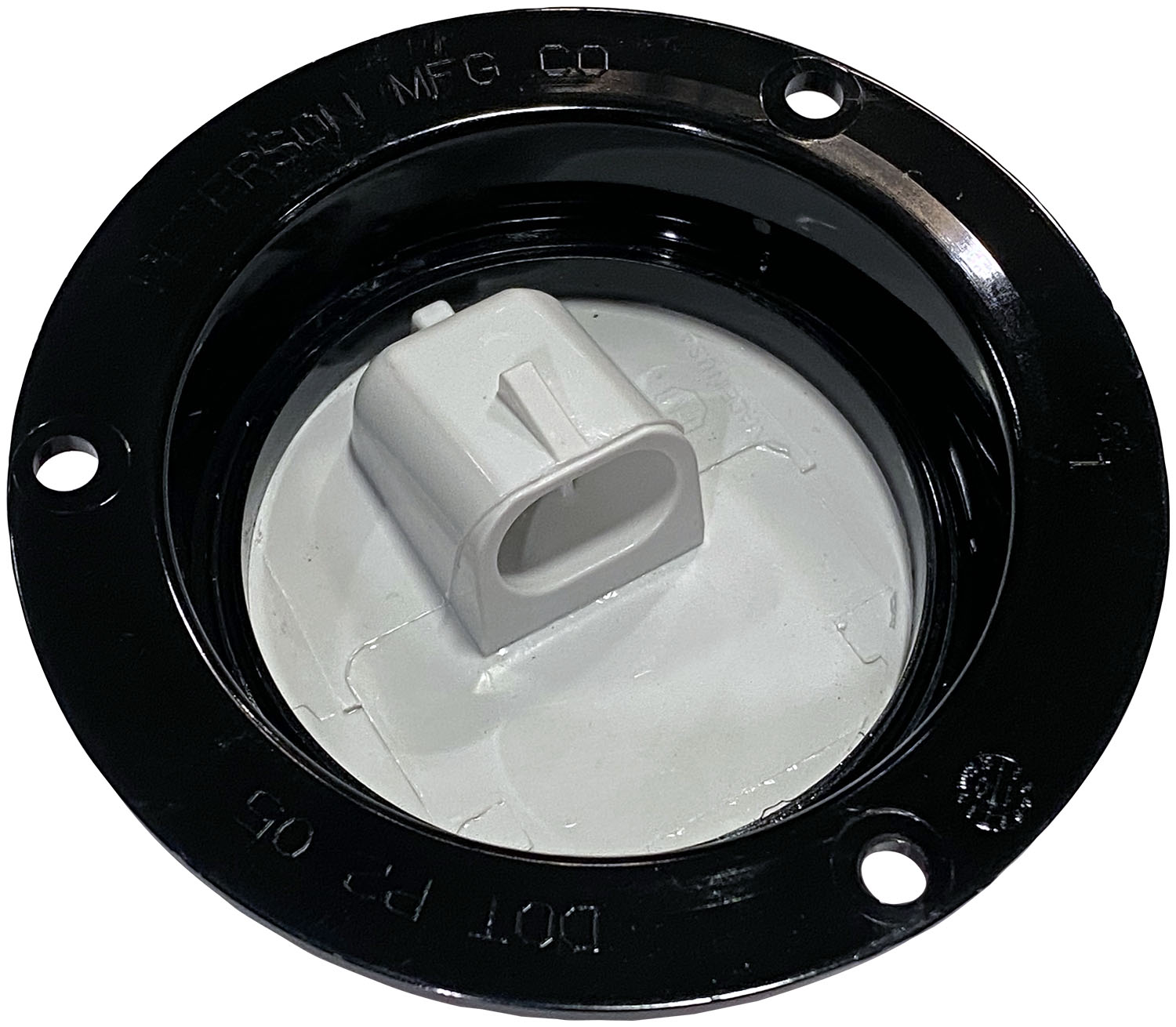

- 30° angle, 2-wire, silicone-sealed AMP receptacle integrated into housing.
- Available in grommet, flange and surface-mount versions.
| M207CR | LED Marker/Clearance PC-Rated, Round AMP 2.5″ |
| M207CA | LED Marker/Clearance PC-Rated, Round AMP 2.5″ |
| 207CR | LED Marker/Clearance PC-Rated, Round AMP 2.5″ |
| 207CA | LED Marker/Clearance PC-Rated, Round AMP 2.5″ |
| M207SCA | LED Marker/Clearance PC-Rated, Round Clear Lens AMP w/ SM Flange 2.5″ |
| 207SCR | LED Marker/Clearance PC-Rated, Round Clear Lens AMP w/ SM Flange 2.5″ |
| M207SR | LED Marker/Clearance PC-Rated, Round AMP w/ Flange 2.5″ |
| 207R | LED Marker/Clearance PC-Rated, Round AMP 2.5″ |
| M207SCR | LED Marker/Clearance PC-Rated, Round Clear Lens AMP w/ SM Flange 2.5″ |
| 207FR | LED Marker/Clearance PC-Rated, Round AMP w/ Flange 2.5″ |
| 207FCR | LED Marker/Clearance PC-Rated, Round Clear Lens AMP w/ Flange 2.5″ |
| M207SA | LED Marker/Clearance PC-Rated, Round AMP w/ Flange 2.5″ |
| 207FA | LED Marker/Clearance PC-Rated, Round AMP w/ Flange 2.5″ |
| 207FCA | LED Marker/Clearance PC-Rated, Round AMP w/ Flange 2.5″ |
| M207R | LED Marker/Clearance PC-Rated, Round AMP 2.5″ |
| 207A | LED Marker/Clearance PC-Rated, Round AMP 2.5″ |
| M207FR | LED Marker/Clearance PC-Rated, Round AMP w/ Flange 2.5″ |
| M207FCR | LED Marker/Clearance PC-Rated, Round Clear Lens AMP w/ Flange 2.5″ |
| M207FCA | LED Marker/Clearance PC-Rated, Round AMP w/ Flange 2.5″ |
| M207FA | LED Marker/Clearance PC-Rated, Round AMP w/ Flange 2.5″ |
| M207A | LED Marker/Clearance PC-Rated, Round AMP 2.5″ |
| California Proposition 65 | Warning-cancer-and-or-reproductive-harm-www-p65warnings-ca-gov |
| Maximum Voltage | 16-volts |
| Minimum Voltage | 9-volts |
| Diameter | 3-37-inch |
| Height | 3-37-inch |
| Length | 1-6-inch |
| Voltage | 12-volts |
| Width | 3-37-inch |
| Integral Reflex | No |
| Mounting Type | Surface |
| PC Rated | Yes |
| Light Color | Amber |
| Bulb/Diode Count | 9 |
| Lens Color | Clear |
| Bulb Technology | LED |
| Regulatory Compliance | DOT |
| Shape | 2-1-2-inch-round |
| Container Type | Poly-bag |
| Multi-Volt | No |
| California Prop65 Required | Yes |
| Submersible | Yes |
