822KC-7

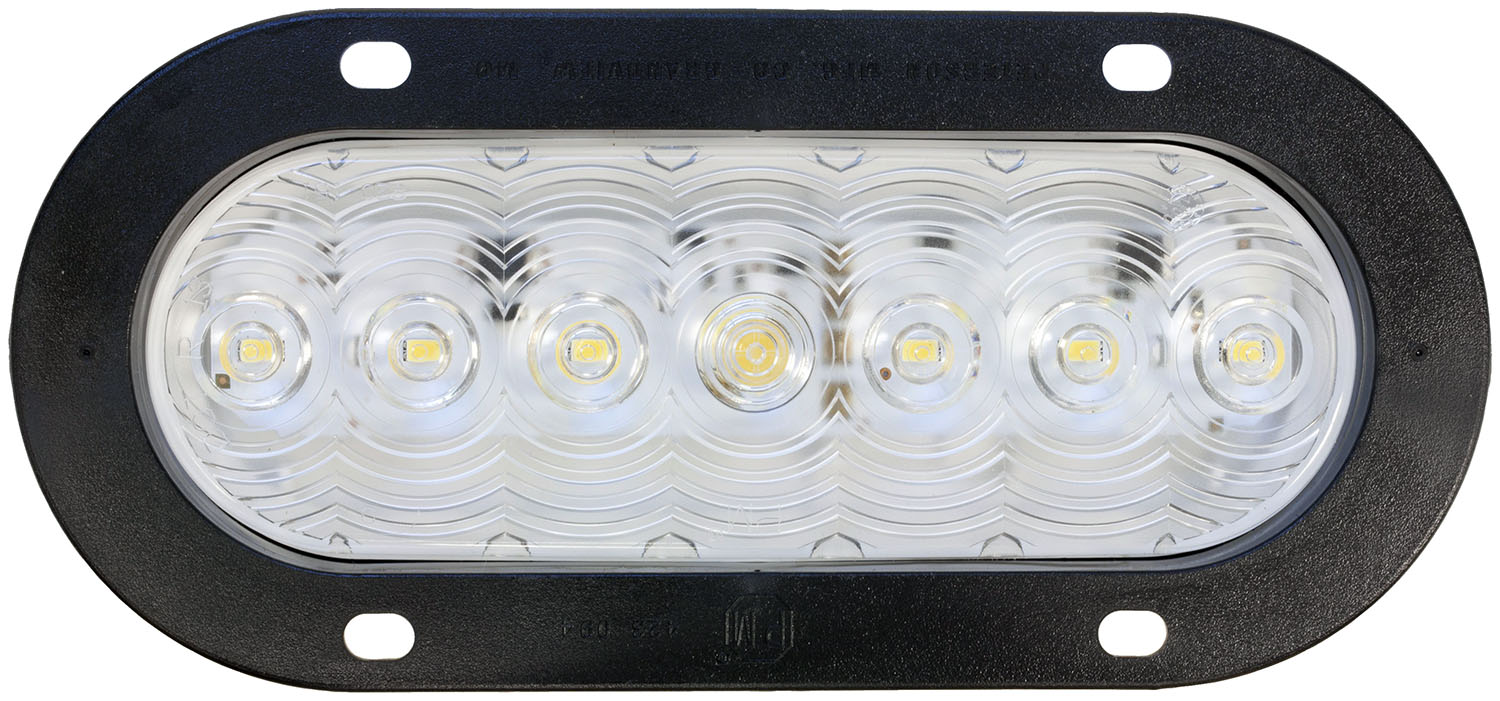

Lumen X ® PL3 Oval Back-Up Light, flange kit, poly bag
822KC-7
Lumen X ® PL3 Oval Back-Up Light, flange kit, poly bag
- Oval Back-Up Light

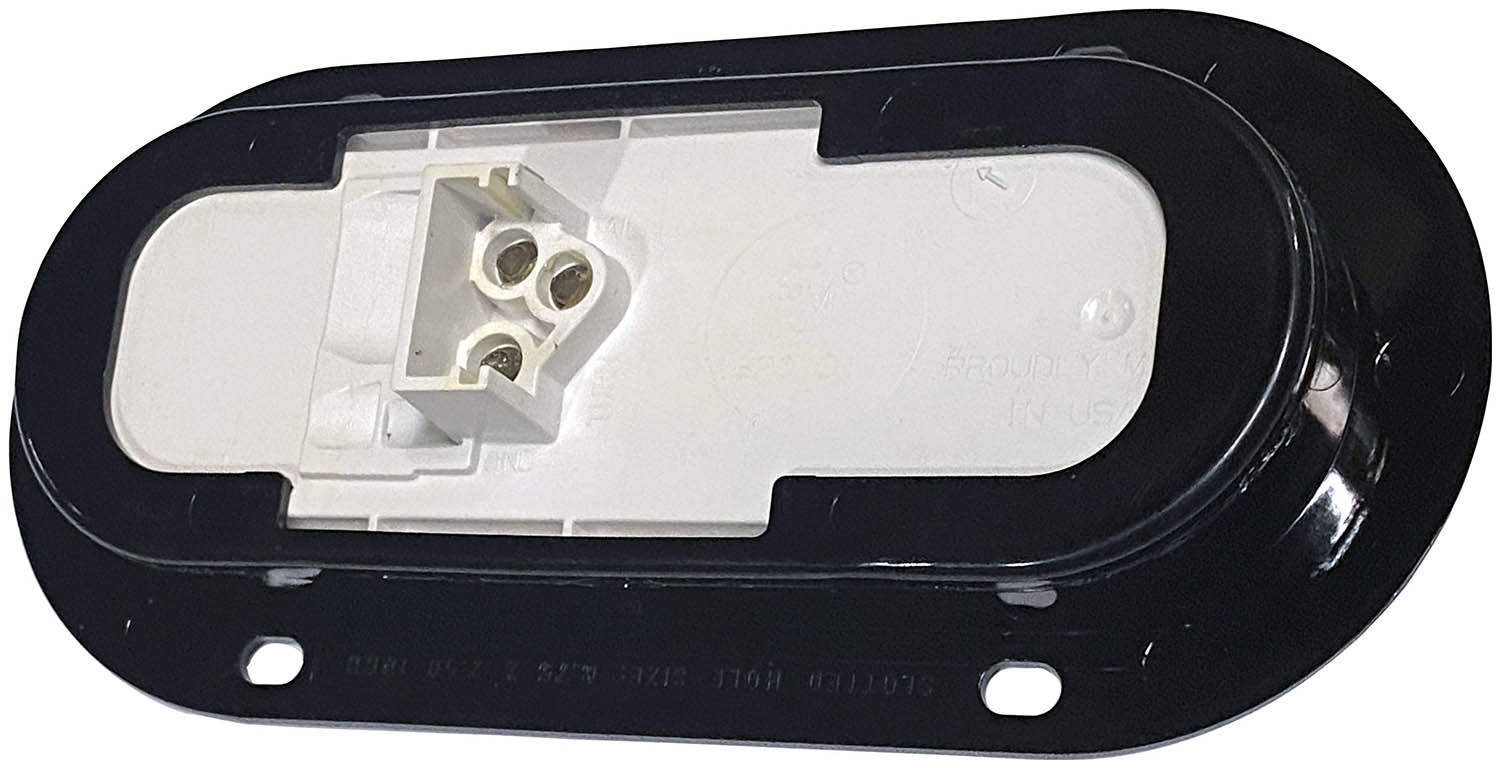

- PL3 socket integrated into housing.
- Single light meets DOT requirements when properly mounted.
- Meets DOT requirements in any horizontal / vertical / 360 degree position.
- 821 kit includes light, grommet and 421-49 plug.
- 822 kit includes light and 421-49 plug.
- See matching stop / turn / tail light on page 5.
- See matching turn signal light on page 15.
Standard Order Quantity: 6
| 821C-7 | Lumen X ® PL3 Oval Back-Up Light, grommet, poly bag |
| 822C-7 | Lumen X ® PL3 Oval Back-Up Light, flange, poly bag |
| M821C-7 | Lumen X ® PL3 Oval Back-Up Light, grommet, bulk pack |
| V822KC-7 | Lumen X ® PL3 Oval Back-Up Light, flange kit, Viz Pack |
| V821KC-7 | Lumen X ® PL3 Oval Back-Up Light, grommet kit, Viz Pack |
| M822C-7 | Lumen X ® PL3 Oval Back-Up Light, flange, bulk pack |
| 821KC-7 | Lumen X ® PL3 Oval Back-Up Light, grommet kit, poly bag |
| Voltage | 12 Volts |
| Lens Color | Clear |
| Multi-Volt | No |
| Regulatory Compliance | DOT |
| Shape | Oval |
| Bulb/Diode Count | 7 |
| Mounting Type | Flange |
| Light Color | White |
| termination | PL3 |
| Bulb Technology | LED |
| Container Type | Poly Bag |
| Maximum Voltage | 16 Volts |
| Minimum Voltage | 9 Volts |

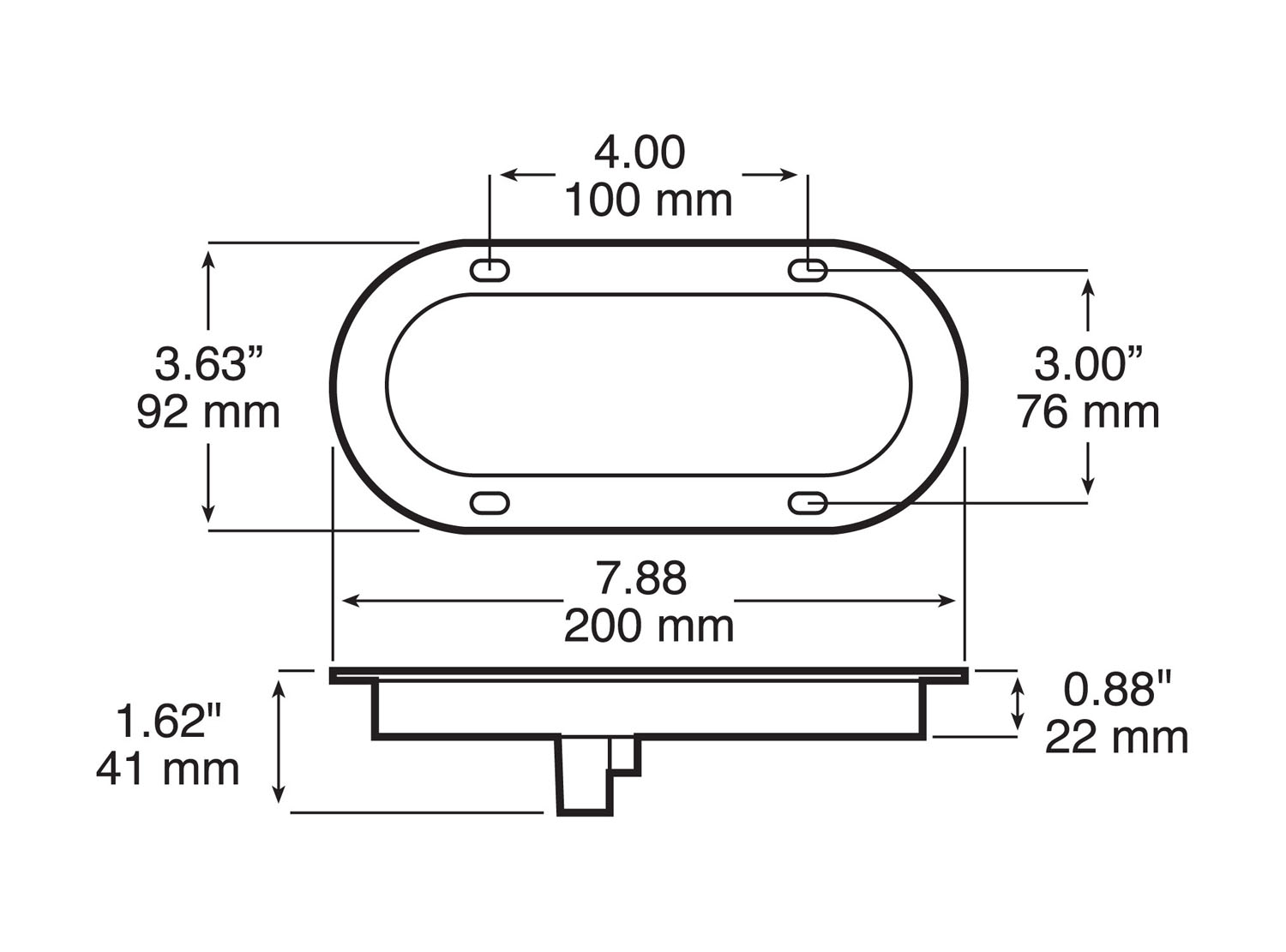

| Height | 3.63 Inch |
| Length | 7.88 Inch |
| Width | 1.62 Inch |
| Submersible | Yes |
