M150-3R

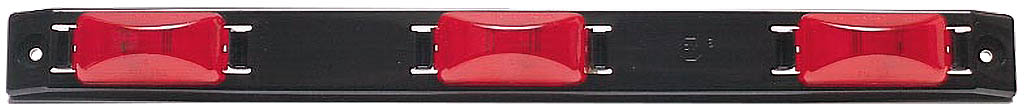

Light Bar, Submersible, 17 inch x 1.47 inch, red, bulk pack
M150-3R
Light Bar, Submersible, 17 inch x 1.47 inch, red, bulk pack
- 0.20 " mounting holes accept #10 screws.
- 150 lights snap on/off for easy service.
- All versions have 6" ground wire w/ ring terminal and 50" hot wire.
- Black polycarbonate bar is corrosion-proof with three 150 sealed lights attached.
- Field upgradable to LEDs – bar also accepts 203 series on Peterson Master Catalog page 70.
- For an LED alternative, consider Peterson M203-3R
- Includes three-plug harness with two lead wires.
- Long life bulb.
- Mounts on 16" centers.
- Recommended for marine trailer use.
- Submersible identification bar light for over 80" applications.
Standard Order Quantity: 48
| LED Equivalent | M203-3R |
| Filament Quantity | 1 |
| Lens Color | Red |
| Shape | Bar |
| Voltage | 12 Volts |
| Bulb/Diode Count | 3 |
| Bulb Technology | Incandescent |
| Ground Type | Wire |
| Replaceable Bulb | No |
| Removable Lens | No |
| Regulatory Compliance | DOT |
| termination | Stripped Wire |
| Light Color | Red |
| Mounting Type | Surface |
| Container Type | Bulk Pack |

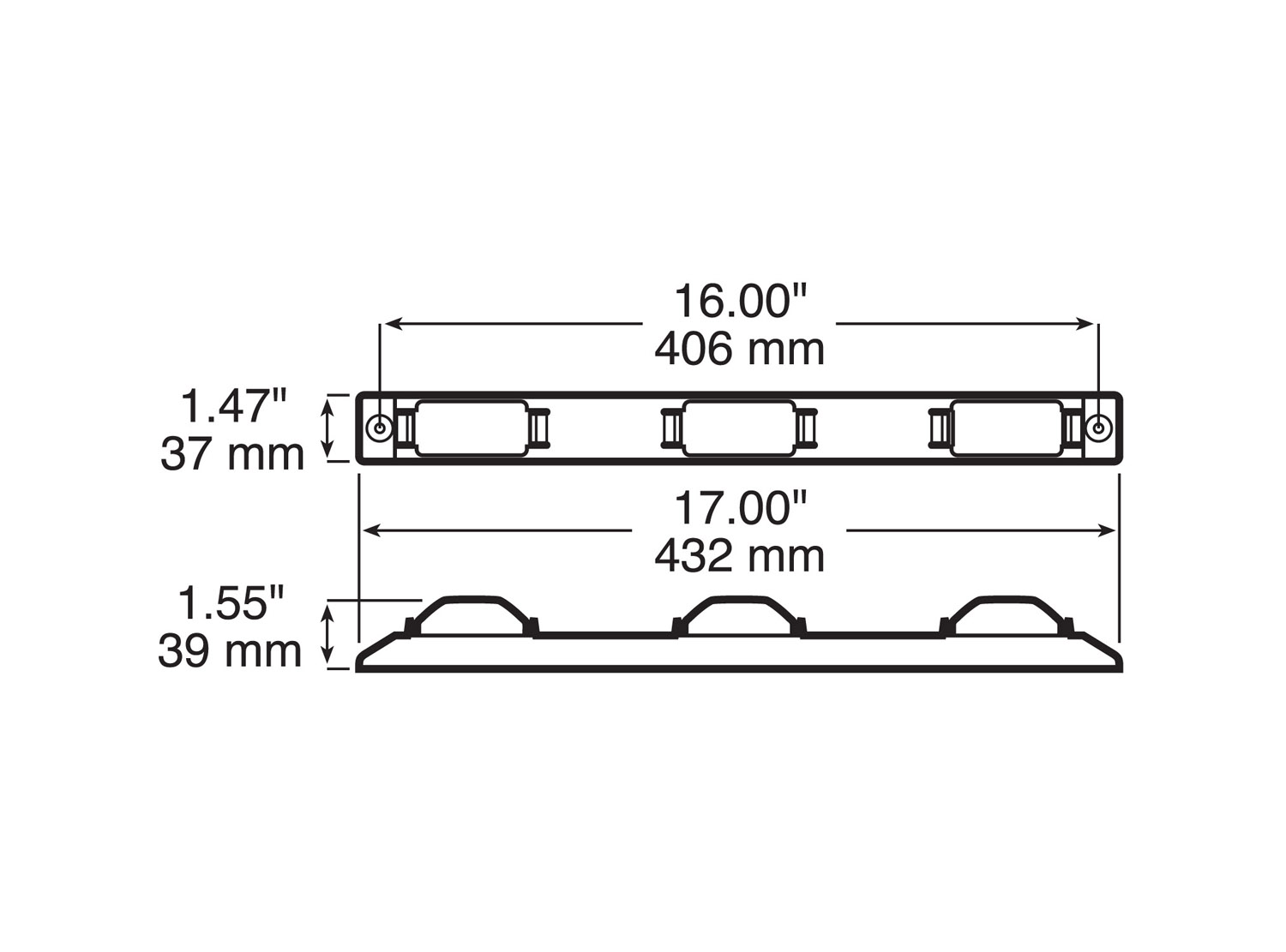

| Mounting Centers | 16.125 Inch |
| Height | 1.47 Inch |
| Length | 17 Inch |
| Width | 1.55 Inch |
| Submersible | Yes |
