150-49
Id Bar Lamp Harness; 6.7 inch centers; poly bag
150-49
Id Bar Lamp Harness; 6.7 inch centers; poly bag

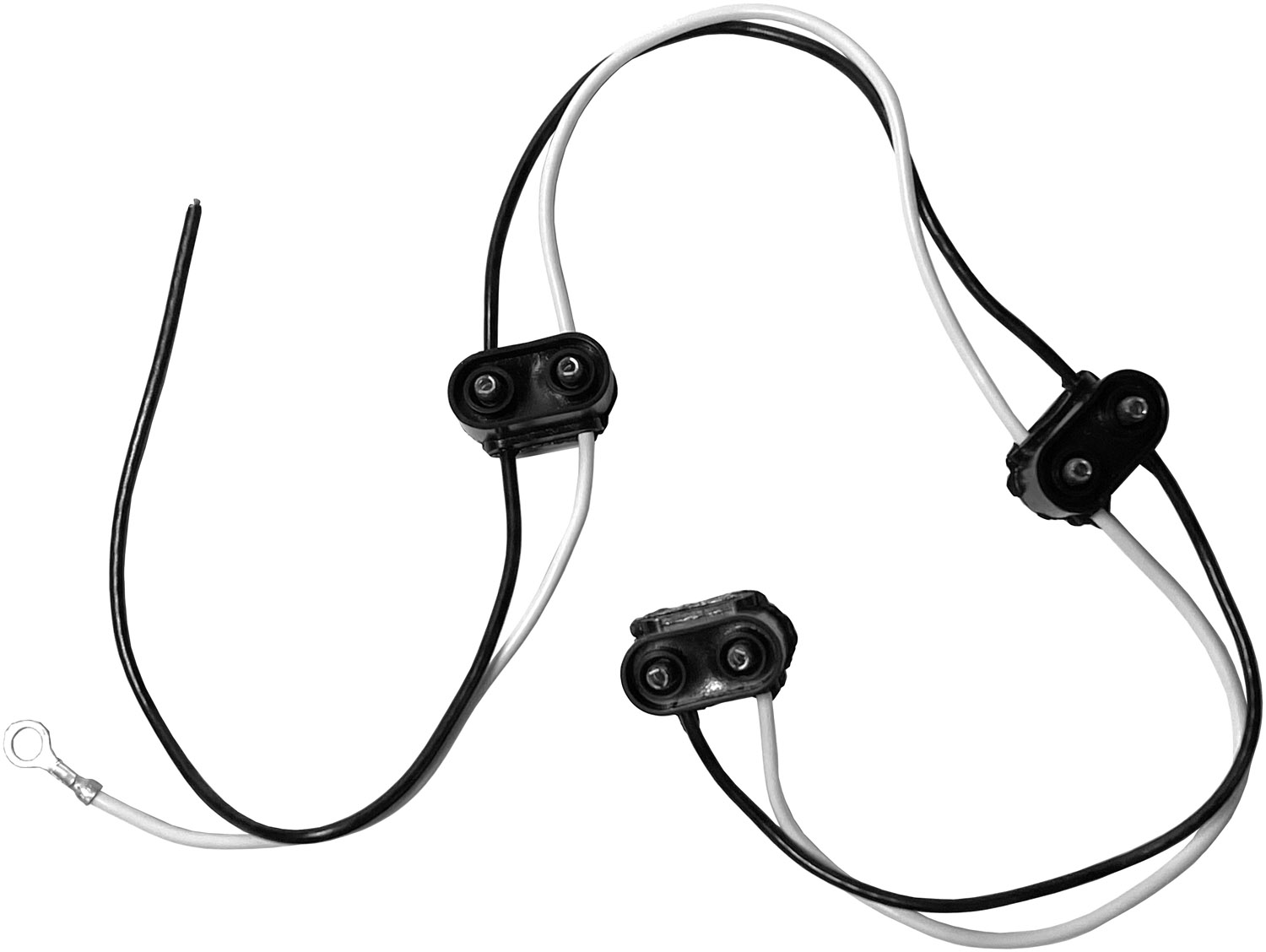

- Id Bar Lamp Harness
- Fits lights requiring PL10 style plug, including competitive models.

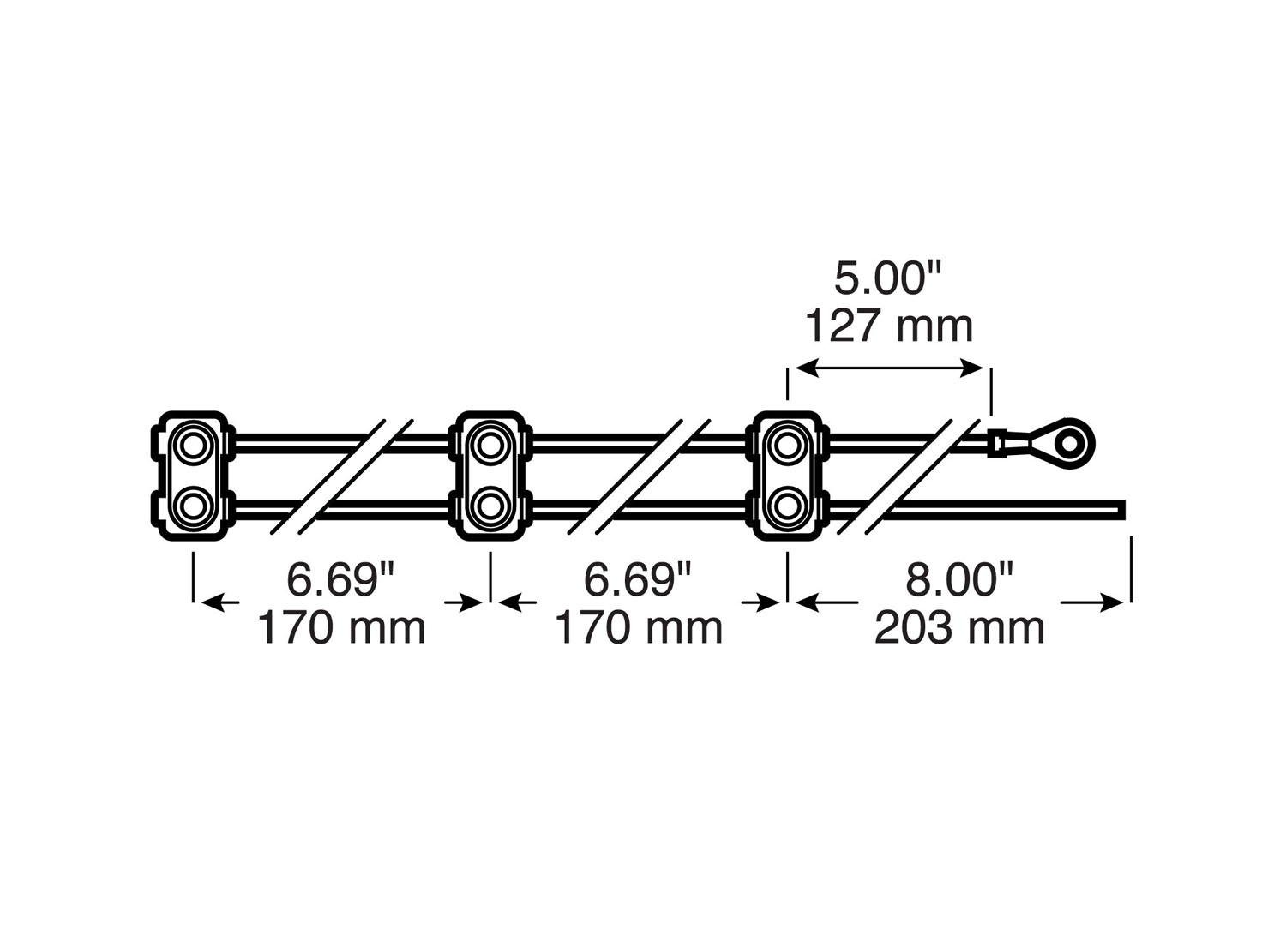

- Choice of 6.70" or 8.25" between receptacles.
- 150-49 replaces wire harness on 150-3 series identification light bar.
- 5" ground wire w/ ring terminal and 8" hot wire.
- Includes #10 ring terminal on ground wire; hot wire is stripped.
- May be used as harness for individual corner or ID lights.
Standard Order Quantity: 1
| Container Type | Poly Bag |
| Daisy Chain | Yes |
| Height | 0.71 Inch |
| Length | 21.5 Inch |
| termination | PL10 |
| Termination 2 | Stripped Wire + Ring |
| Width | 1 Inch |
