910-MV
Pedestal Work Light; stripped leads; box
910-MV
Pedestal Work Light; stripped leads; box

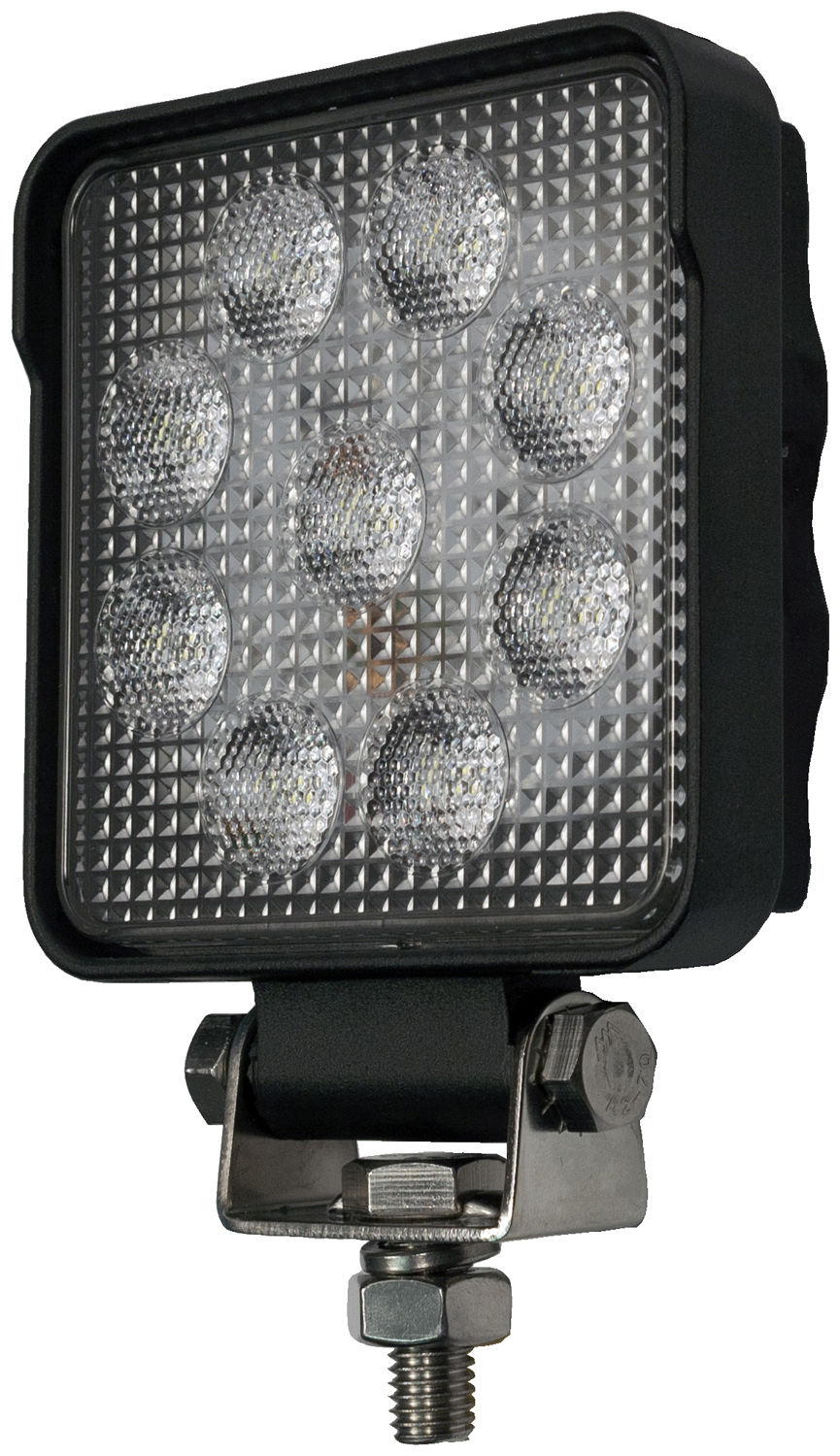

- Pedestal Work Light
- Rugged, die-cast aluminum body with heat dissipating fins.
- Multi-volt circuitry is compatible with 12V and 24V vehicles.
- Hardwired leads available stripped, or terminated with .180 bullets or Packard connector.
- Draws 1.2A @ 13.5V, 0.59A @ 28V.
- Certified to meet IP67 ingress protection rating.
- RoHS compliant & certified to ECE Reg 10.
- Stainless steel mounting hardware.
- 1350 lumens output.
Standard Order Quantity: 1
| 910-MV-PKD | Pedestal Work Light; w/ hardshell connector; box |
| V910M-MV | Pedestal Work Light, magnetic-mount; w/ switch; Viz Pack |
| 910-MV-BT2 | Pedestal Work Light; w/ .180 bullets; box |
| 910M-MV | Pedestal Work Light, magnetic-mount; w/ switch; box |
| V910-MV | Pedestal Work Light; stripped leads; Viz Pack |
| Voltage | 12V / 24V |
| termination | Stripped Wire |
| Mounting Type | Stud |
| Multi-Volt | Yes |
| Shape | Square |
| Container Type | Box |
| Lens Color | Clear |
| Bulb/Diode Count | 9 |
| Regulatory Compliance | ECE |
| Bulb Technology | LED |
| Beam Pattern | Flood |
| Light Color | White |
| Coil cord | No |
| Maximum Voltage | 30 Volts |
| Minimum Voltage | 10 Volts |

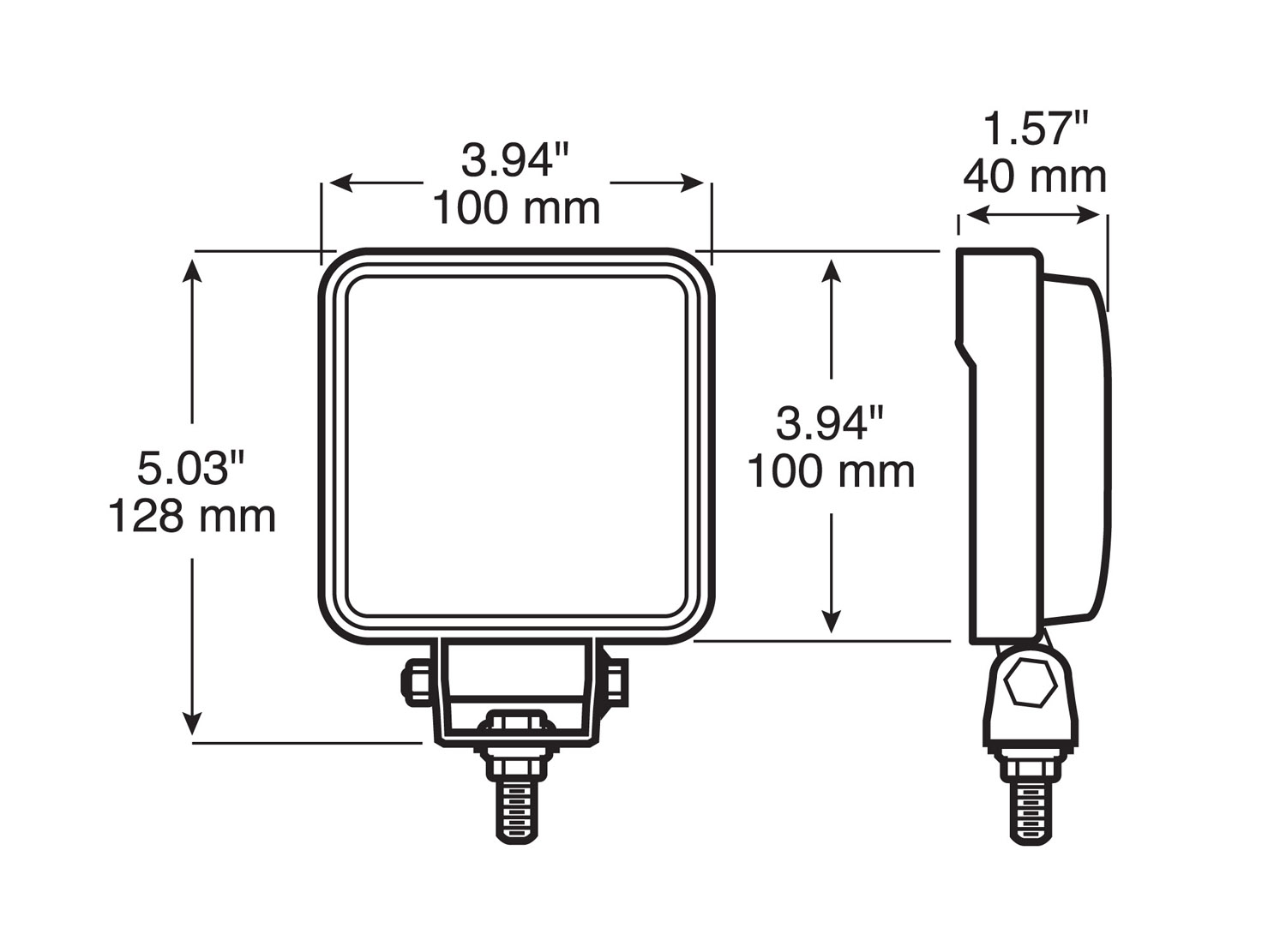

| Height | 5.03 Inch |
| Integral Switch | No |
| Length | 3.94 Inch |
| Width | 1.57 Inch |
| Submersible | No |
| Exterior use | Yes |
| Brightness | 1350 Lumens |
| Bargman Interchange | 54209-002 |
| Grote Interchange | 63981 |
| Truck-Lite Interchange | 81510 |
| Truck-Lite Interchange | 81520 |
| Truck-Lite Interchange | 8160 |
| Truck-Lite Interchange | 8170 |
| Grote Interchange | BZ201-5 |
