320A

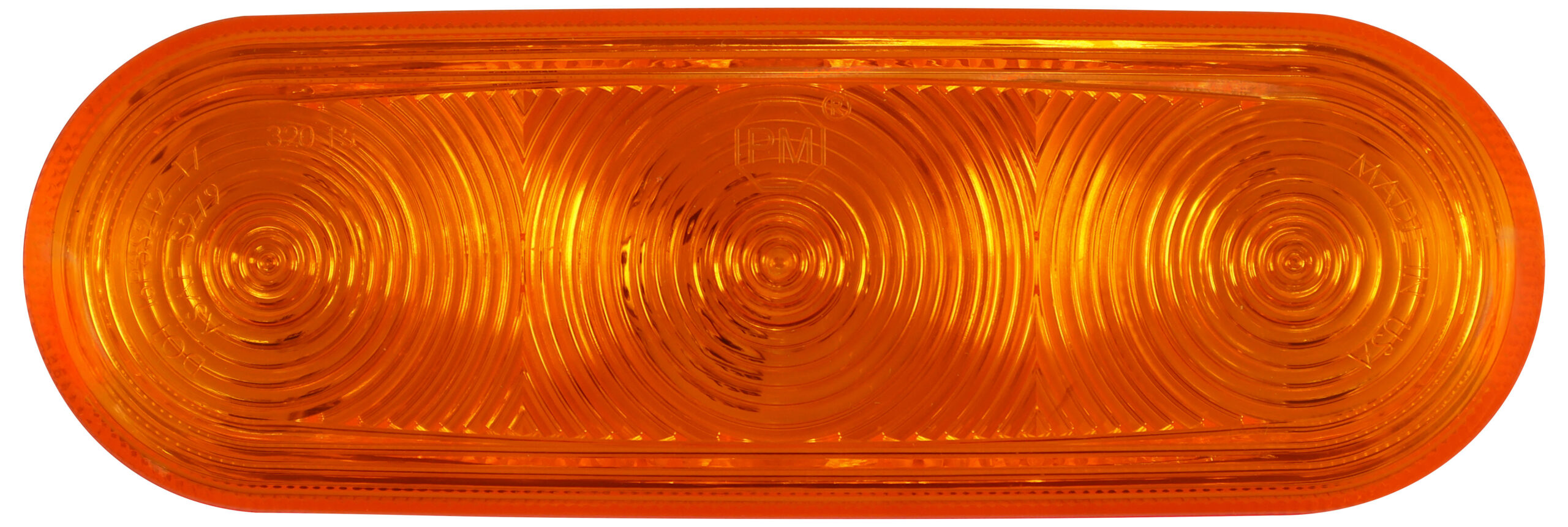

Lumen X ® PL3 Oval Agricultural Turn / Marker / Warning Light; PL3 receptacle; poly bag
320A
Lumen X ® PL3 Oval Agricultural Turn / Marker / Warning Light; PL3 receptacle; poly bag
- Agricultural Turn / Marker / Warning Light
- Also meets FMVSS 108 standards for FRONT and REAR turn signal, parking lamp, clearance, and side marker.
- Fits standard oval mounting grommet.
- Includes both high intensity ag warning / turn, and low intensity park / marker light circuits.
- Meets all applicable requirements in horizontal, vertical or any 360 degree position.
- Meets ASAE S279.17 and U.S. Title 49 Part 562 requirements for agricultural lighting equipment.
- PL3 receptacle integrated into housing.
- Provides a minimum of 4 CP illumination at 90 degrees to lens face in every direction, regardless of orientation.
Standard Order Quantity: 1
| M320A | Lumen X ® AMP Oval Agricultural Turn / Marker / Warning Light; AMP receptacle; bulk pack |
| Bulb Technology | LED |
| Length | 6.5 Inch |
| Lens Color | Amber |
| Shape | Oval |
| Height | 2.25 Inch |
| Integral Reflex | No |
| Maximum Voltage | 16 Volts |
| Minimum Voltage | 9 Volts |
| Width | 1.8 Inch |
| Multi-Volt | No |
| Regulatory Compliance | DOT |
| Light Color | Amber |
| Voltage | 12 Volts |
| Bulb/Diode Count | 3 |
| Mounting Type | Grommet |
| termination | AMP |
| Container Type | Poly Bag |
| Submersible | Yes |
