1217R-9

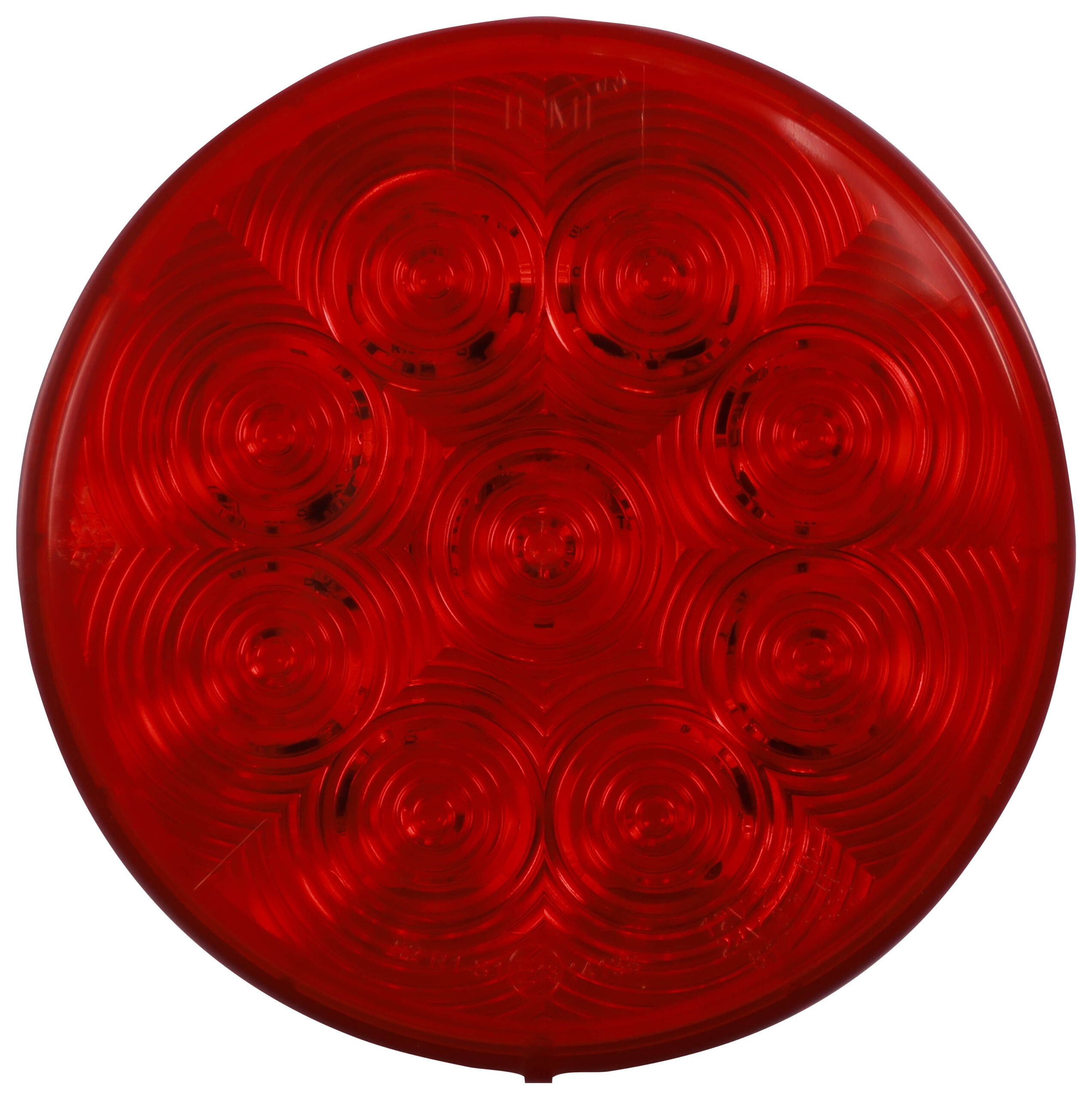

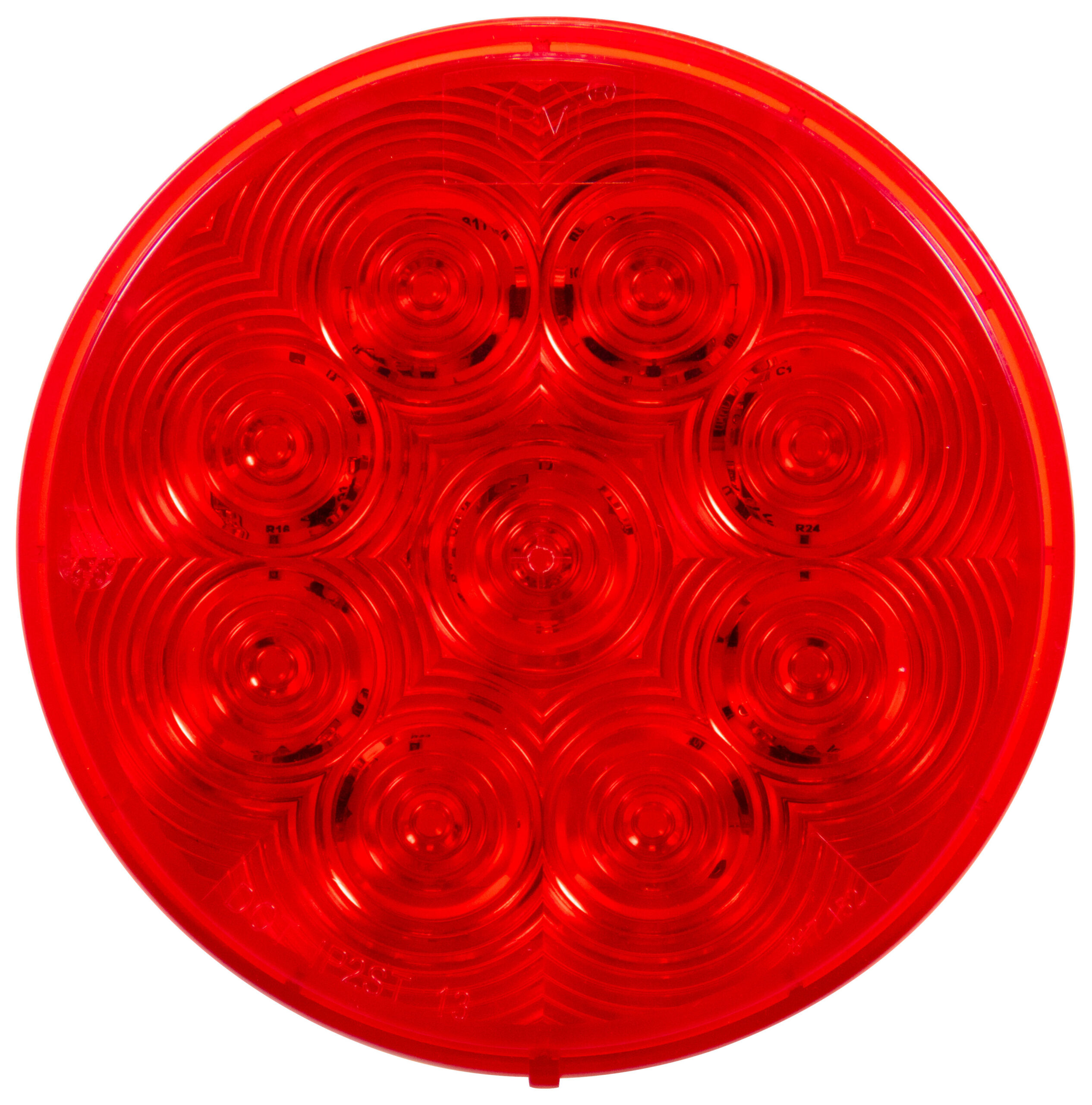

Lumen X ® LED ECE Round Stop/Turn/Tail Light; red grommet mount; poly bag
1217R-9
Lumen X ® LED ECE Round Stop/Turn/Tail Light; red grommet mount; poly bag
- 9 diodes.
- AMP-compatible connector integrated into housing.
- Assembled in USA.
- ECE compliant.
- Grommet version fits 114 mm hole in material up to 6 mm.
- Kits include light and plug. 1217KR-9 also includes grommet.
- Lumen X ® lens and circuitry.
- Multi-volt design is compatible with both 12 and 24 volt systems.
- Multi-volt version available.
- Regulated design provides voltage protection and consistent output.
- Sealed lens and housing meets IP67 ingress level.
- See Peterson Master Catalog pages 184-185 & 187 for mounting options.
- Voltage Regulated.
- White diodes and advanced optics fully illuminate red lens.
Standard Order Quantity: 1
| Bulb Technology | LED |
| Bulb/Diode Count | 9 |
| Container Type | Poly Bag |
| Diameter | 4.25 Inch |
| Ground Type | Wire |
| Height | 4.25 Inch |
| Integral Reflex | No |
| Length | 4.25 Inch |
| Lens Color | Red |
| Light Color | Red |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Mounting Type | Grommet |
| Multi-Volt | Yes |
| Regulatory Compliance | ECE |
| Shape | Round |
| termination | AMP |
| Voltage | 12V / 24V |
| Width | 1.42 Inch |
