817KR-9
Lumen X ® AMP 4 inch Round Stop / Turn / Tail Light; grommet kit; poly bag
817KR-9

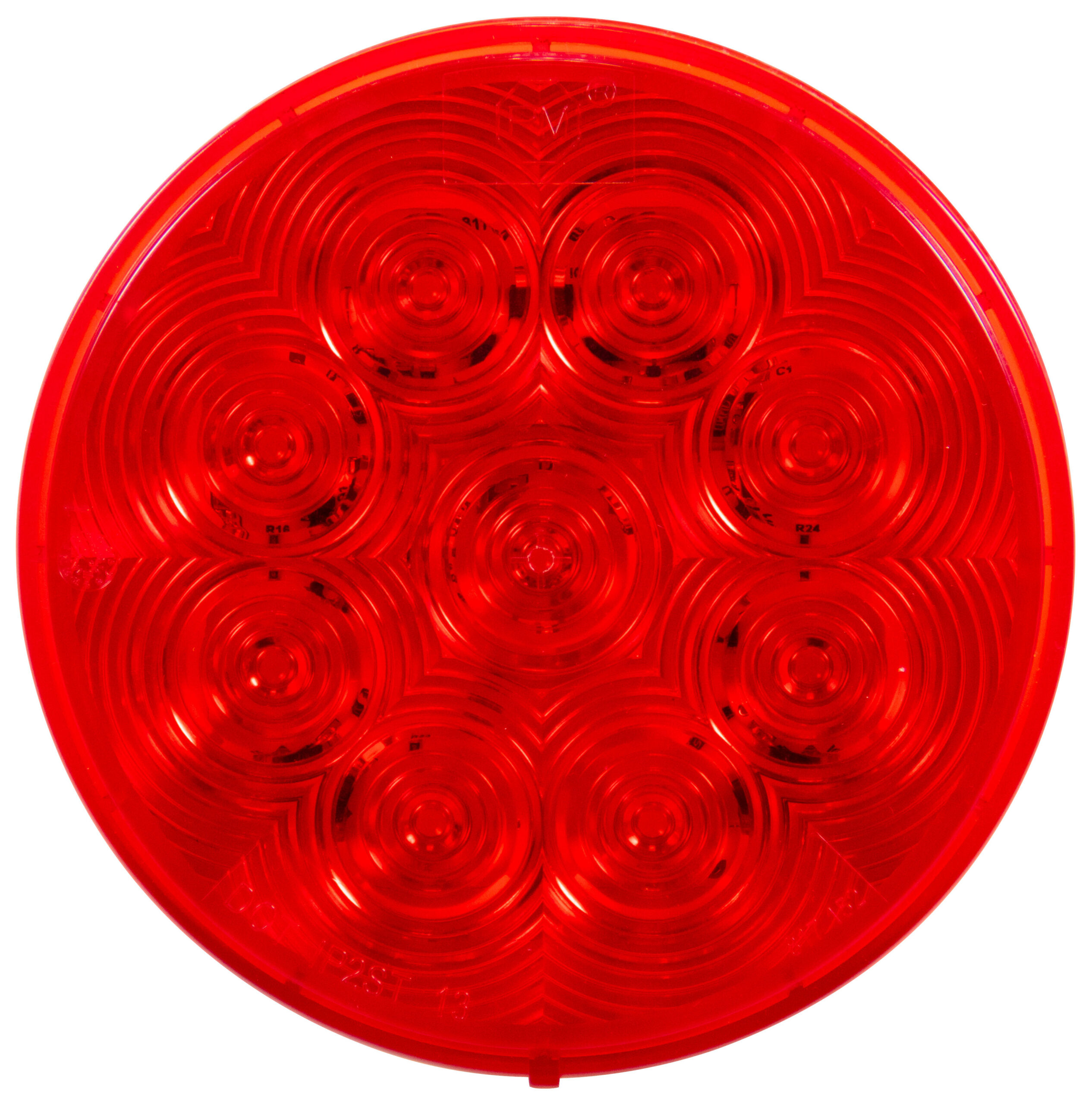

Lumen X ® AMP 4 inch Round Stop / Turn / Tail Light; grommet kit; poly bag
- -MP kit versions substitute 417-491MP converter plug.

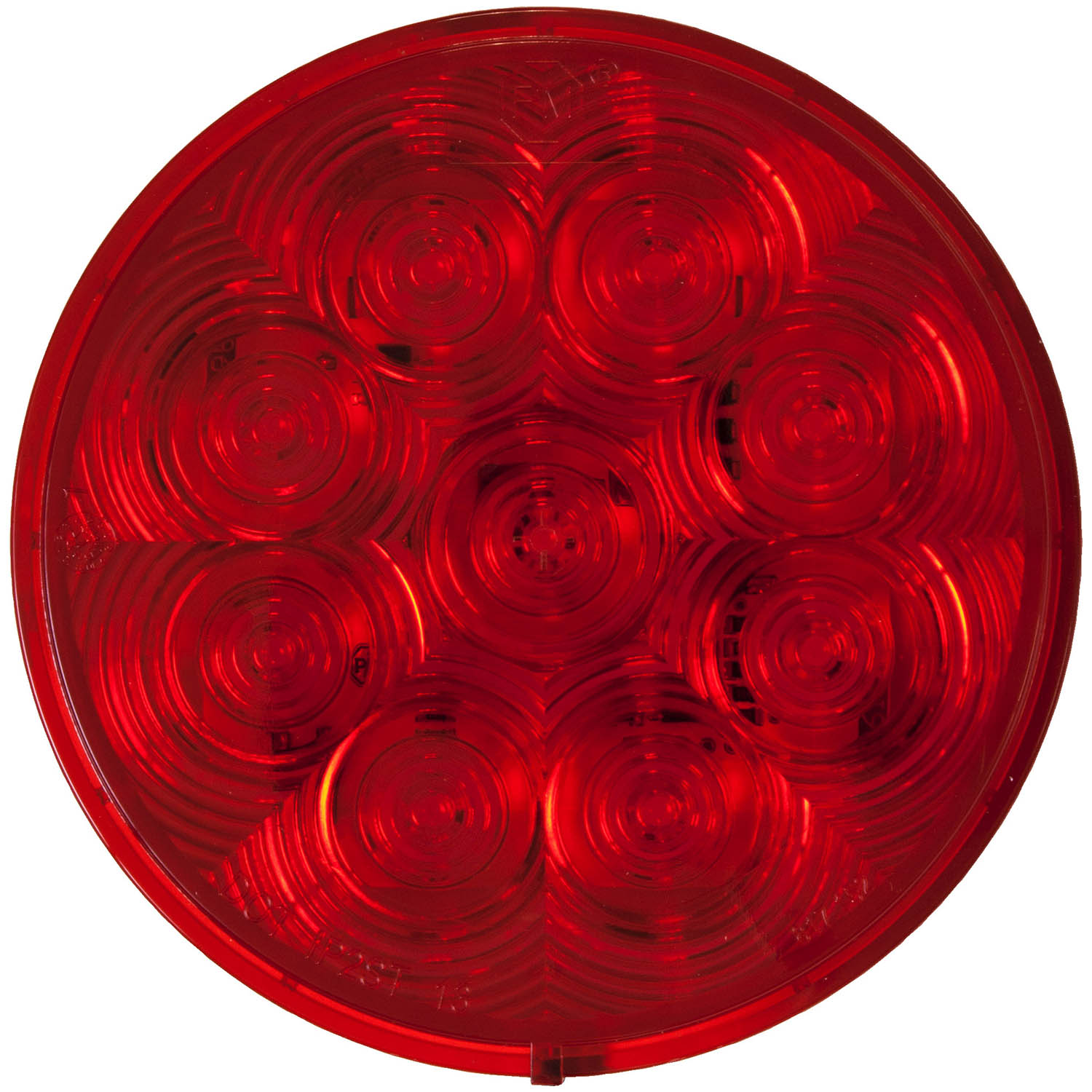

- 4" Round Stop / Turn / Tail Light
- 817 kit includes light, grommet and 817-49 plug.
- 818 kit includes light and 817-49 plug.

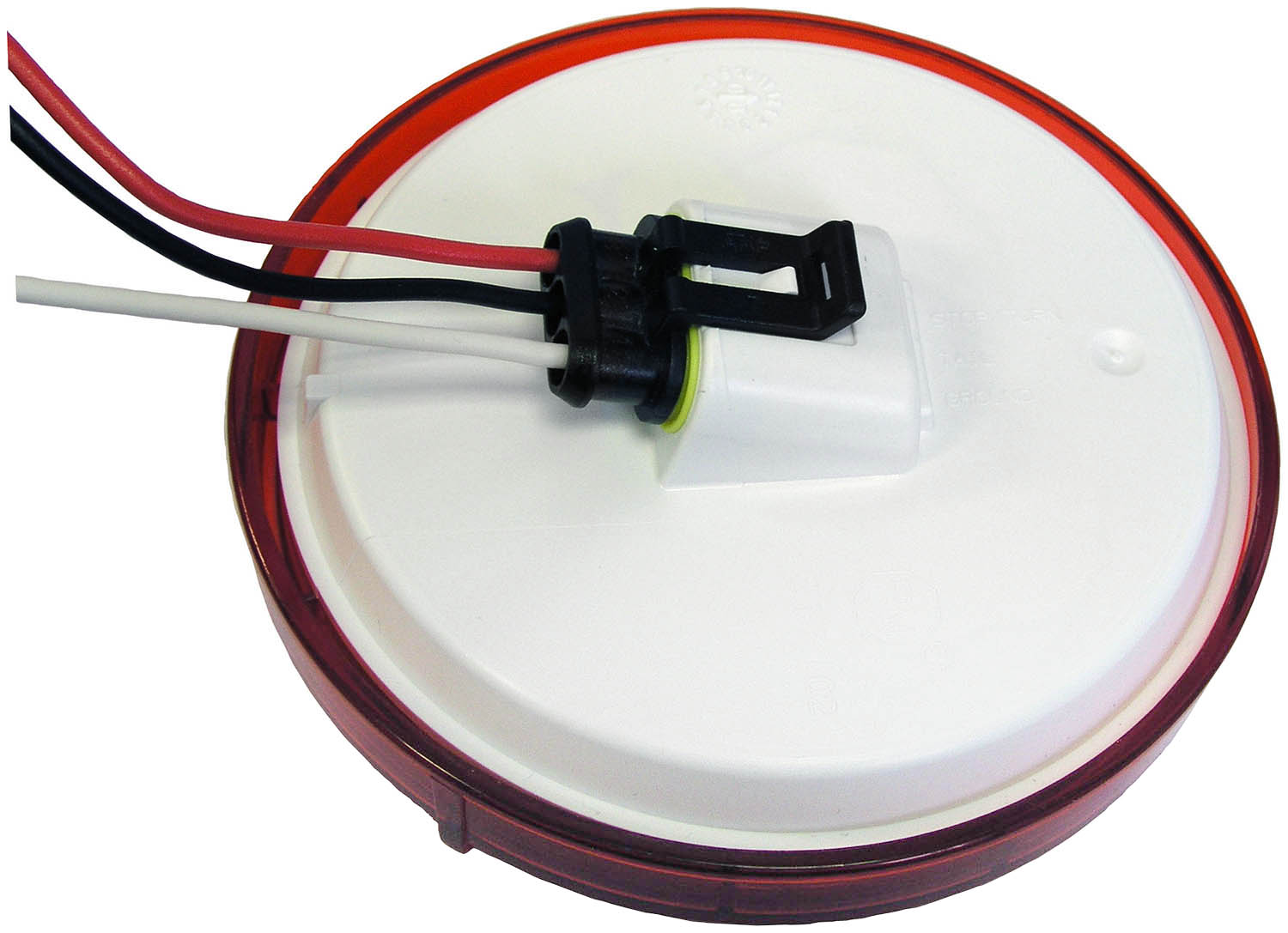

- Integral 30 degree angle silicone-sealed AMP receptacle.
- Multi-volt design compatible with 12 & 24 volt systems.
- See clear lens version on Peterson LED Catalog page 43.
- See matching backup light on Peterson LED Catalog page 47.
- See matching turn signal light on Peterson LED Catalog page 14.
Standard Order Quantity: 1
| 818KR-9-MP | Lumen X ® AMP 4 inch Round Stop / Turn / Tail Light; flange, male plug kit; poly bag |
| 817KR-9-MP | Lumen X ® AMP 4 inch Round Stop / Turn / Tail Light; grommet, male plug kit; poly bag |
| 818KR-9 | Lumen X ® AMP 4 inch Round Stop / Turn / Tail Light; flange kit; poly bag |
| M818CR-9 | Lumen X ® 4 inch Round Stop / Turn / Tail Light; flange clear lens; bulk pack |
| 818CR-9 | Lumen X ® 4 inch Round Stop / Turn / Tail Light; flange clear lens; poly bag |
| 817CR-9 | Lumen X ® 4 inch Round Stop / Turn / Tail Light; grommet clear lens; poly bag |
| M817CR-9 | Lumen X ® 4 inch Round Stop / Turn / Tail Light; grommet clear lens; bulk pack |
| 818R-9 | Lumen X ® AMP 4 inch Round Stop / Turn / Tail Light; flange; poly bag |
| 817R-9 | Lumen X ® AMP 4 inch Round Stop / Turn / Tail Light; grommet; poly bag |
| M818R-9 | Lumen X ® AMP 4 inch Round Stop / Turn / Tail Light; flange; bulk pack |
| M817R-9 | Lumen X ® AMP 4 inch Round Stop / Turn / Tail Light; grommet; bulk pack |
| Bulb Technology | LED |
| Bulb/Diode Count | 9 |
| Container Type | Poly Bag |
| Diameter | 4.25 Inch |
| Height | 4.25 Inch |
| Integral Reflex | No |
| Length | 4.25 Inch |
| Lens Color | Red |
| Light Color | Red |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Mounting Type | Grommet |
| Multi-Volt | Yes |
| Regulatory Compliance | DOT |
| Shape | Round |
| Submersible | Yes |
| termination | AMP |
| Voltage | 12V / 24V |
| Width | 1.49 Inch |
