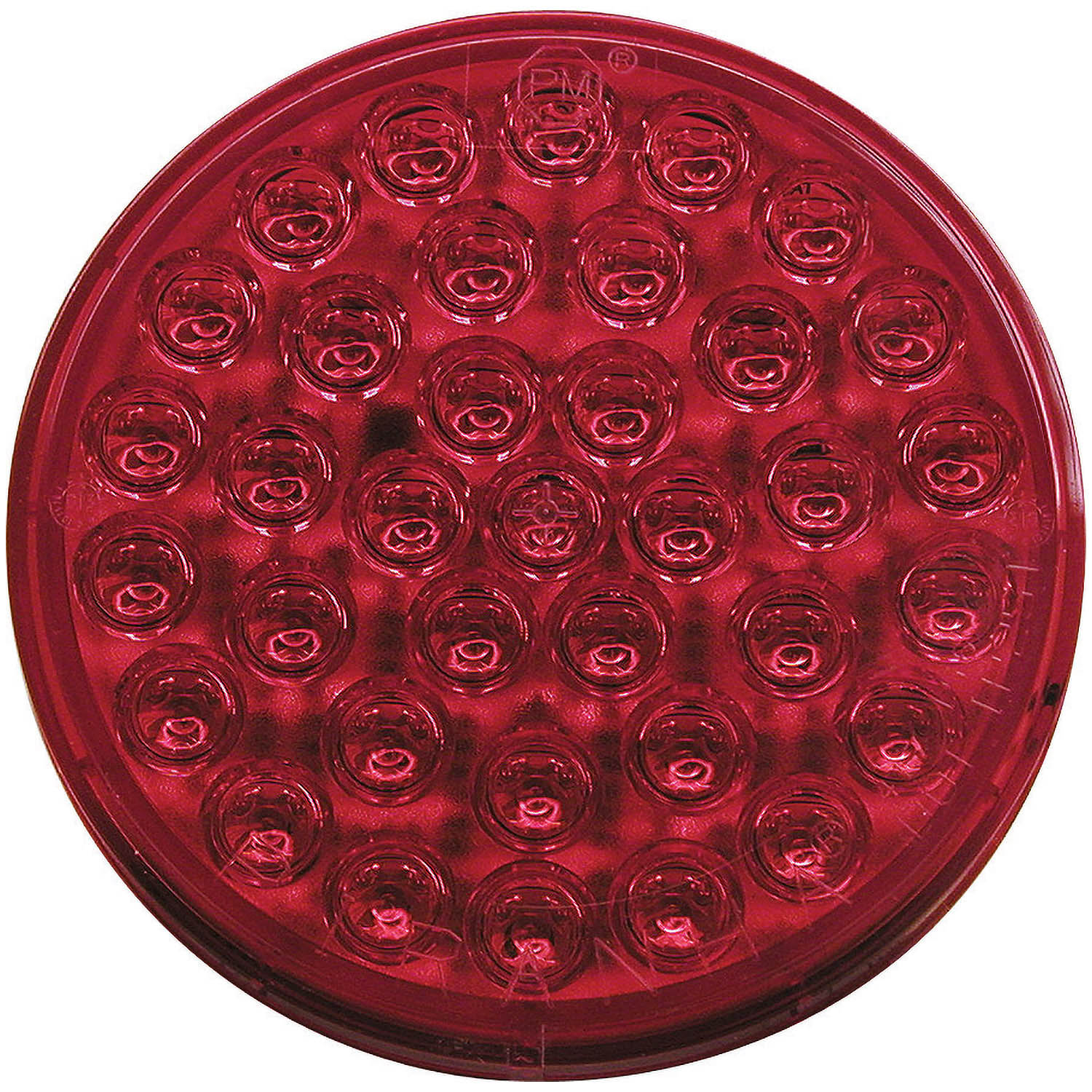

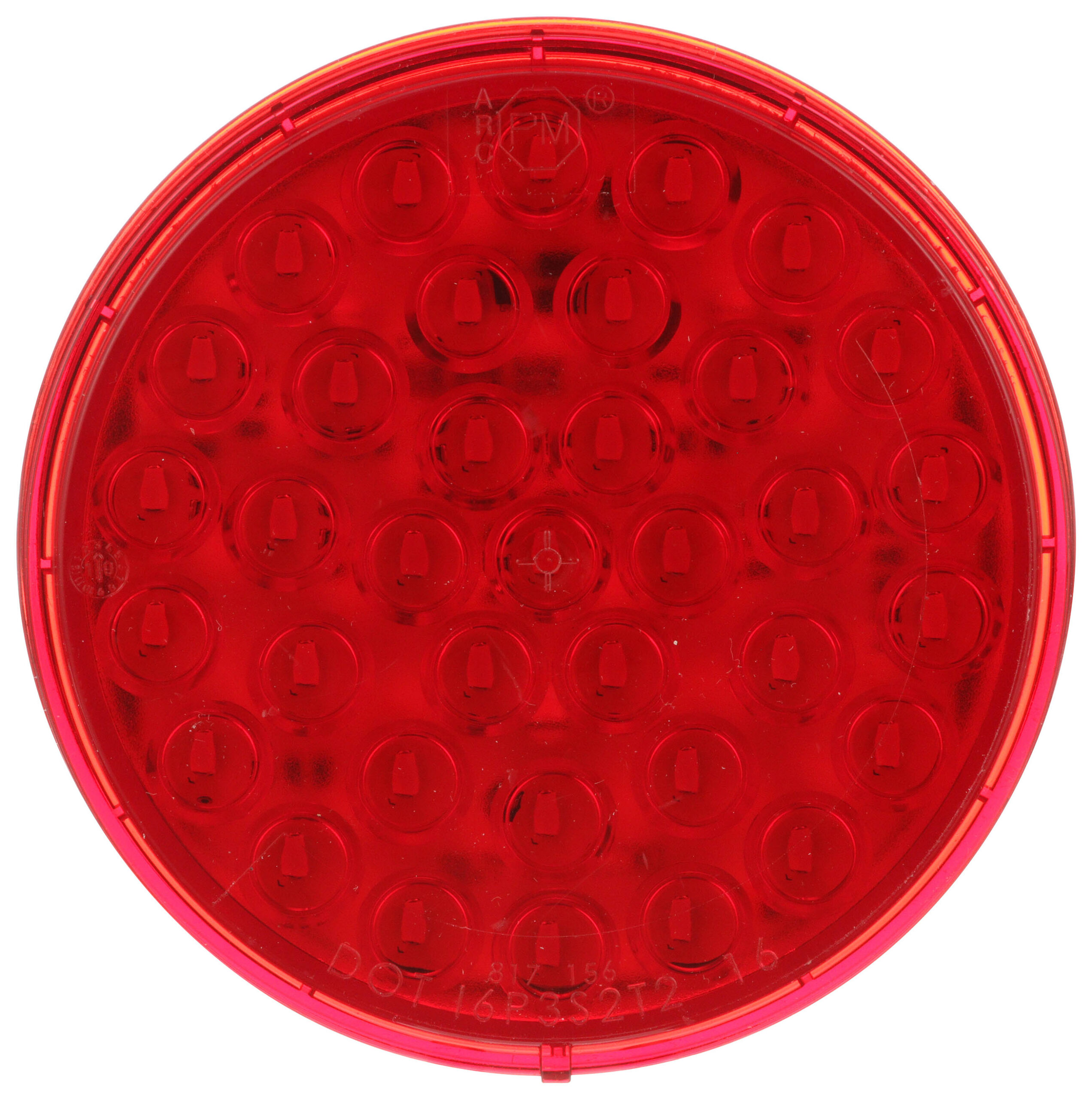

817R-36
Lumen X ® AMP 4 inch Round Stop / Turn / Tail Light; grommet; poly bag
817R-36
Lumen X ® AMP 4 inch Round Stop / Turn / Tail Light; grommet; poly bag
- 4" Round Stop / Turn / Tail Light

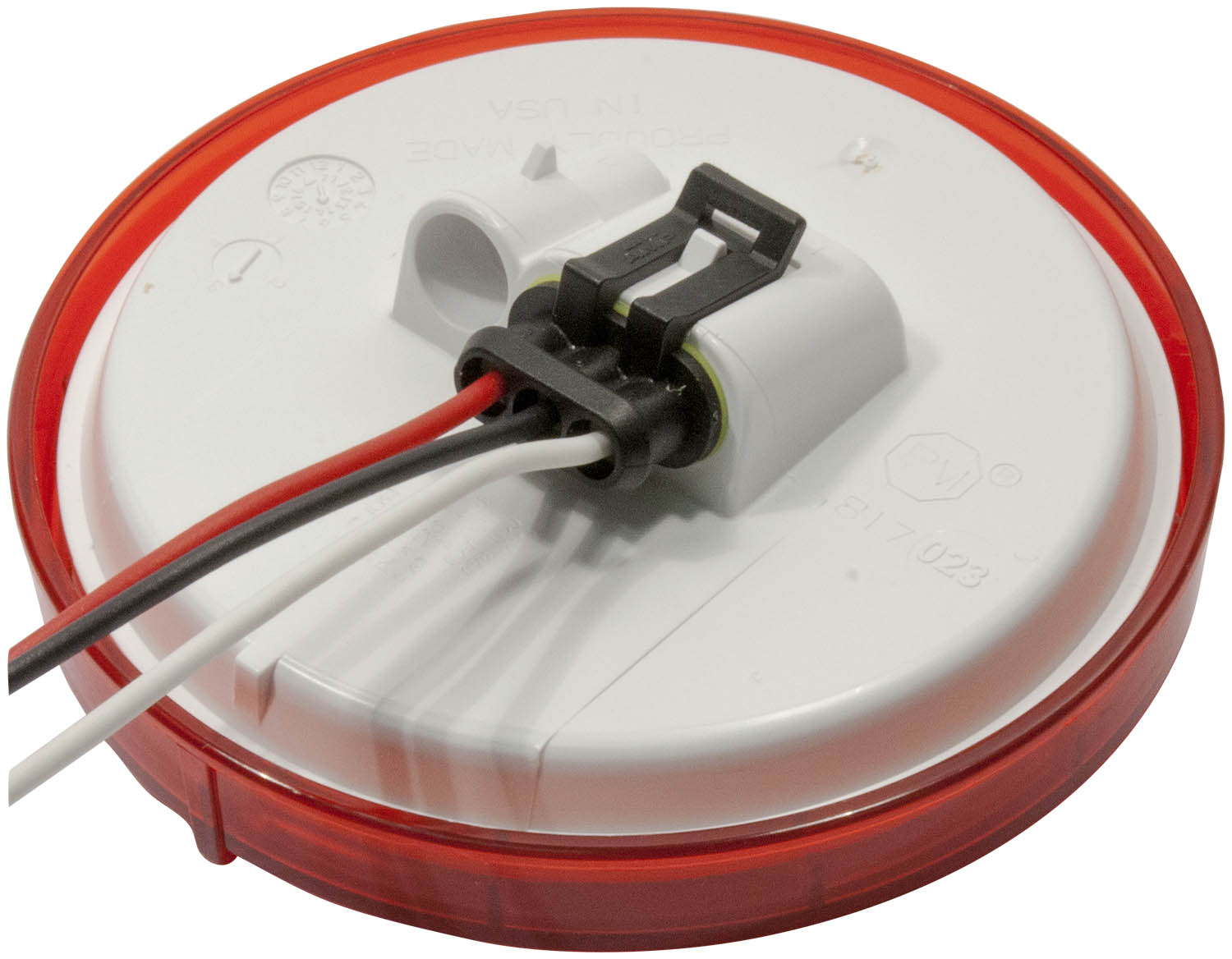

- Integral 30 degree angle silicone-sealed AMP receptacle.
- Original 36-diode multi-diode lens look.
- See clear lens version on Peterson LED Catalog page 43.
- See matching turn signal light on Peterson LED Catalog page 16.
- Viz-Pack kits include light, grommet and 817-49 plug.
Standard Order Quantity: 1
| 818R-36 | Lumen X ® AMP 4 inch Round Stop / Turn / Tail Light; flange; poly bag |
| V817KCR-36 | 4 inch Round Stop / Turn / Tail Light; grommet kit, clear lens; Viz Pack |
| M818CR-36 | 4 inch Round Stop / Turn / Tail Light; flange, clear lens; bulk pack |
| M817CR-36 | 4 inch Round Stop / Turn / Tail Light; grommet, clear lens; bulk pack |
| 818CR-36 | 4 inch Round Stop / Turn / Tail Light; flange, clear lens; poly bag |
| 817CR-36 | 4 inch Round Stop / Turn / Tail Light; grommet, clear lens; poly bag |
| V817KR-36 | Lumen X ® AMP 4 inch Round Stop / Turn / Tail Light; grommet kit; Viz Pack |
| M818R-36 | Lumen X ® AMP 4 inch Round Stop / Turn / Tail Light; flange; bulk pack |
| M817R-36 | Lumen X ® AMP 4 inch Round Stop / Turn / Tail Light; grommet; bulk pack |
| Bulb Technology | LED |
| Bulb/Diode Count | 36 |
| Container Type | Poly Bag |
| Diameter | 4.25 Inch |
| Height | 4.25 Inch |
| Integral Reflex | No |
| Length | 4.25 Inch |
| Lens Color | Red |
| Light Color | Red |
| Maximum Voltage | 16 Volts |
| Minimum Voltage | 9 Volts |
| Mounting Type | Grommet |
| Multi-Volt | No |
| Regulatory Compliance | DOT |
| Shape | Round |
| Submersible | Yes |
| termination | AMP |
| Voltage | 12 Volts |
| Width | 1.42 Inch |
| Truck-Lite Interchange | 44202R |
| Truck-Lite Interchange | 44882R |
