853RF

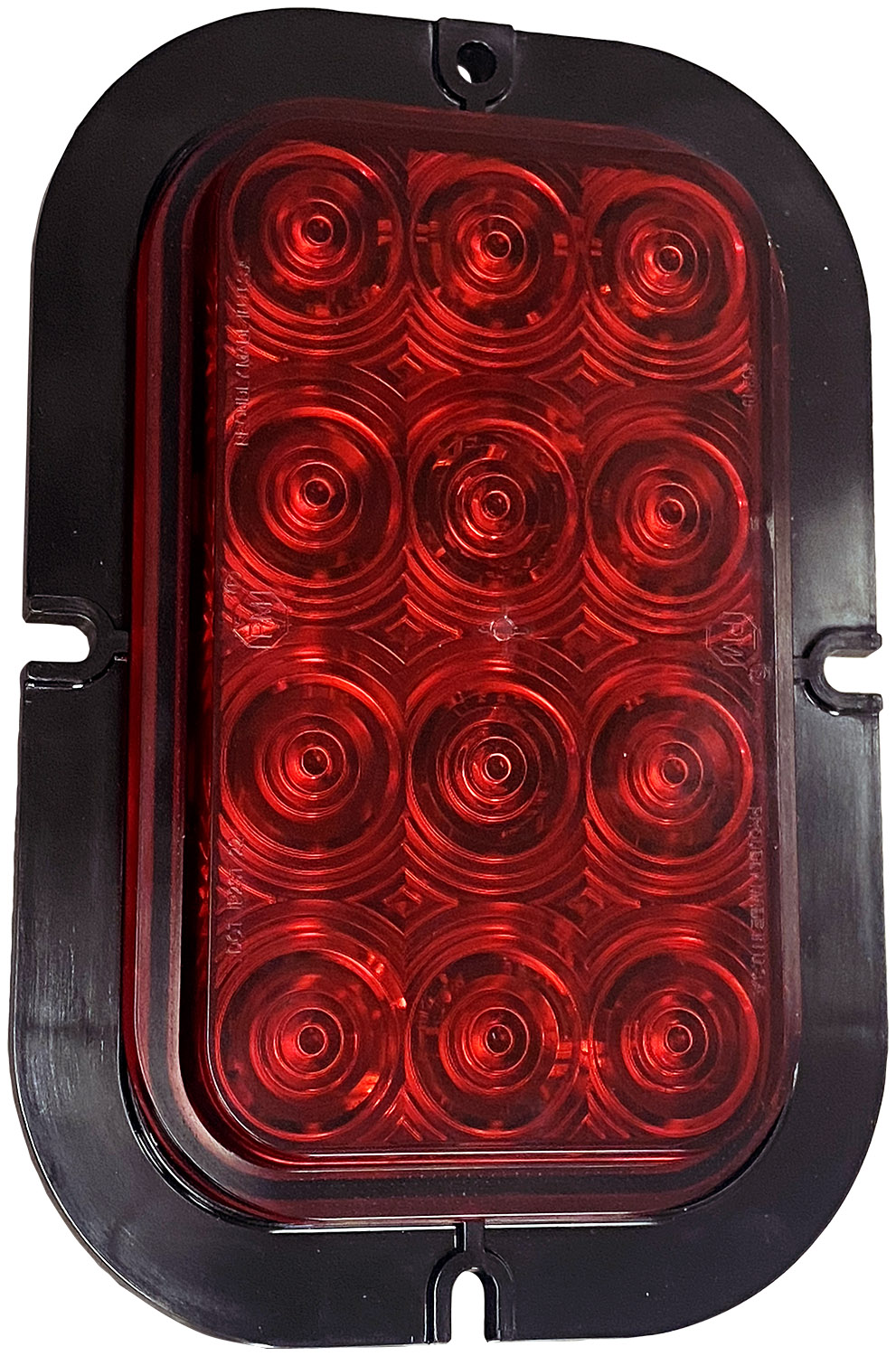

Rectangular Lumen X ® AMP Stop / Turn / Tail Light, flange, poly bag
853RF
Rectangular Lumen X ® AMP Stop / Turn / Tail Light, flange, poly bag
- 853KR kit contains grommet and 417-49 plug.
- Certified DOT compliant in both horizontal and vertical orientation.
- Certified to meet IP67 ingress protection rating.
- Grommet-mount version fits material up to 6 mm thick.
- Integral 30 degree angle silicone-sealed AMP receptacle.
- Multi-volt design compatible with 12 & 24 volt systems.
- Stop / Turn / Tail Light
Standard Order Quantity: 6
| M853RF | Rectangular Lumen X ® AMP Stop / Turn / Tail Light, flange, bulk pack |
| M853R | Rectangular Lumen X ® AMP Stop / Turn / Tail Light, grommet, bulk pack |
| 853KR | Rectangular Lumen X ® AMP Stop / Turn / Tail Light, grommet kit, poly bag |
| 853R | Rectangular Lumen X ® AMP Stop / Turn / Tail Light, grommet, poly bag |
| Bulb Technology | LED |
| Bulb/Diode Count | 12 |
| Container Type | Poly Bag |

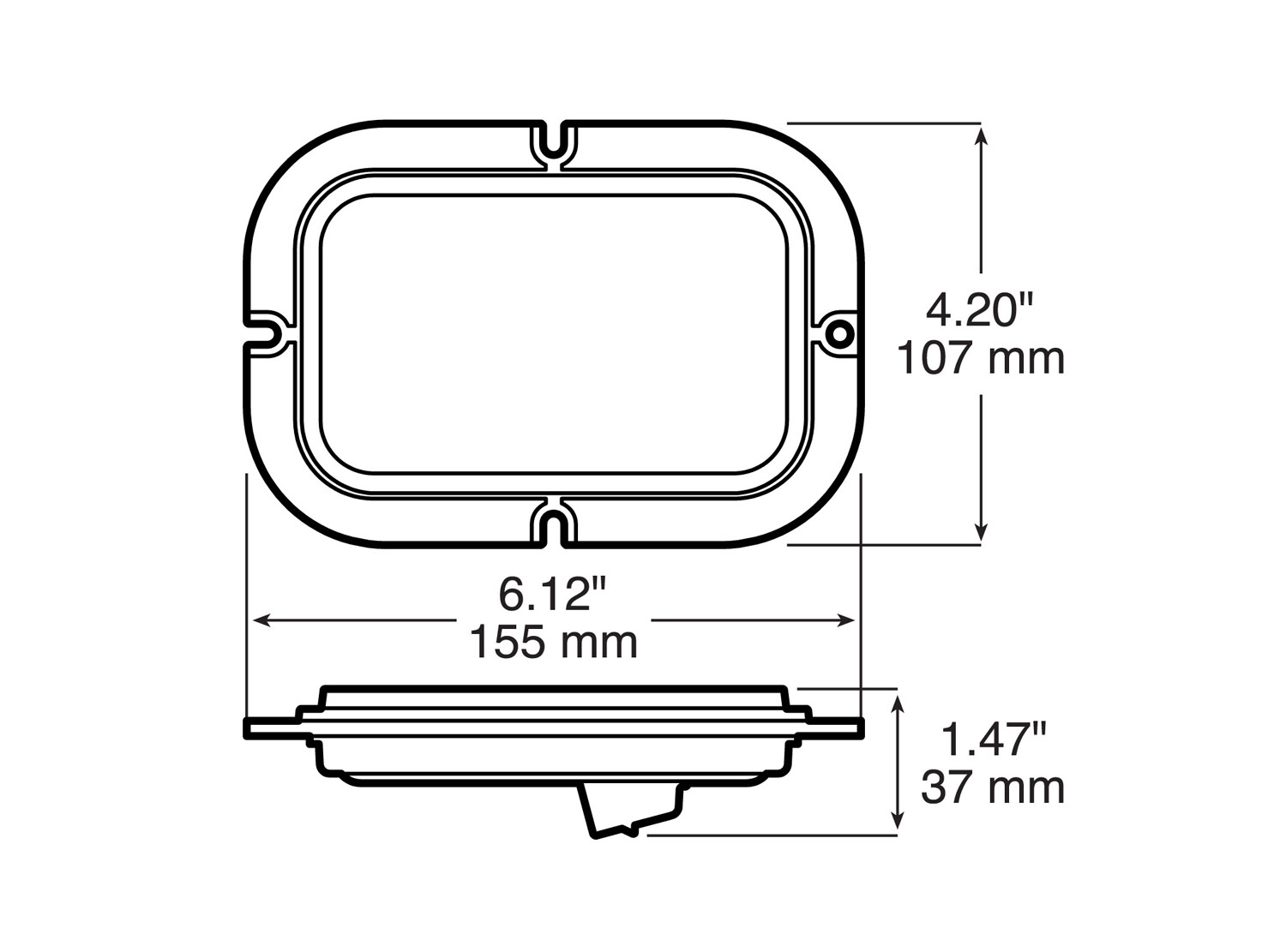

| Height | 6.12 Inch |
| Integral Reflex | No |
| Length | 4.20 Inch |
| Lens Color | Red |
| Light Color | Red |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Mounting Type | Flange |
| Multi-Volt | Yes |
| Regulatory Compliance | DOT |
| Shape | Rectangular |
| Submersible | Yes |
| termination | AMP |
| Voltage | 12V / 24V |
| Width | 1.47 Inch |
