1288
LED ECE Stud-mount Rear Cluster Light; cluster light assy, stud mount; bulk pack
1288
LED ECE Stud-mount Rear Cluster Light; cluster light assy, stud mount; bulk pack
- Certified to applicable ECE regulations.
- Combination side marker, Combination tail, stop, rear fog, turn signal and back-up light.

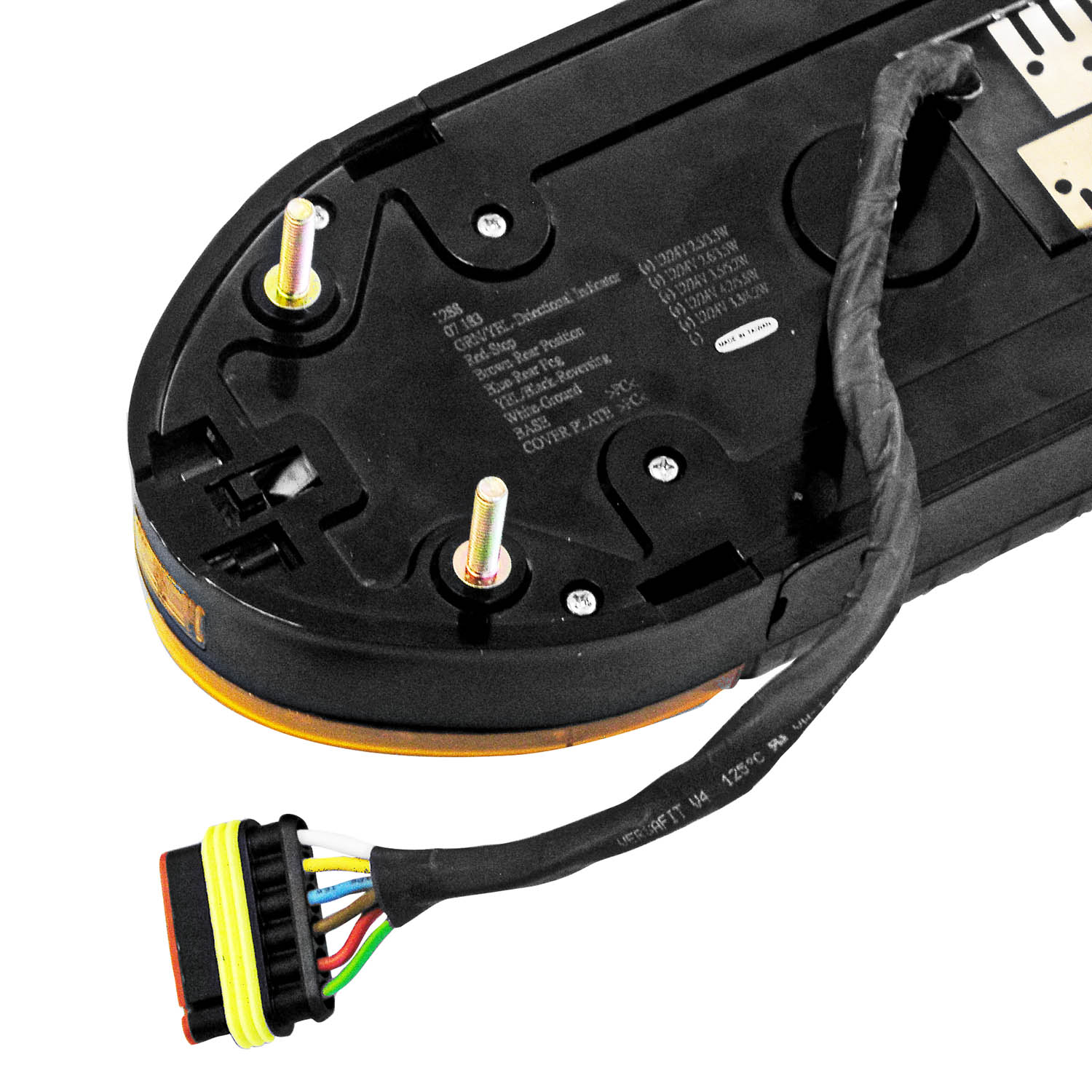

- Hardwired design features 12" (300 mm) sheathed cable with a single 6-pole AMP plug for all wiring connections.
- Individual replacement light modules sold separately.
- Integral Reflex.
- Multi-volt design is compatible with both 12 and 24 volt systems.
- Optional snap-in rear license plate light (not included with 1288 light).
- Sealed components meet IP67 ingress protection level.
- Surface mounts with four studs.
- Universal design mounts on left or right side of vehicle.
Standard Order Quantity: 1
| 1288C | LED ECE Stud-mount Rear Cluster Light; optional white license plate module; bulk pack |
| 1288C | optional white license plate module (mfg. pack - std qty 10) |
| 1288B | replacement back-up light (mfg. pack - std qty 10) |
| 1288F | replacement rear fog light (mfg. pack - std qty 10) |
| 1288A | replacement side marker (mfg. pack - std qty 10) |
| 1288R | replacement tail / stop light (mfg. pack - std qty 10) |
| 1288TA | replacement turn signal (mfg. pack - std qty 10) |
| Bulb Technology | LED |

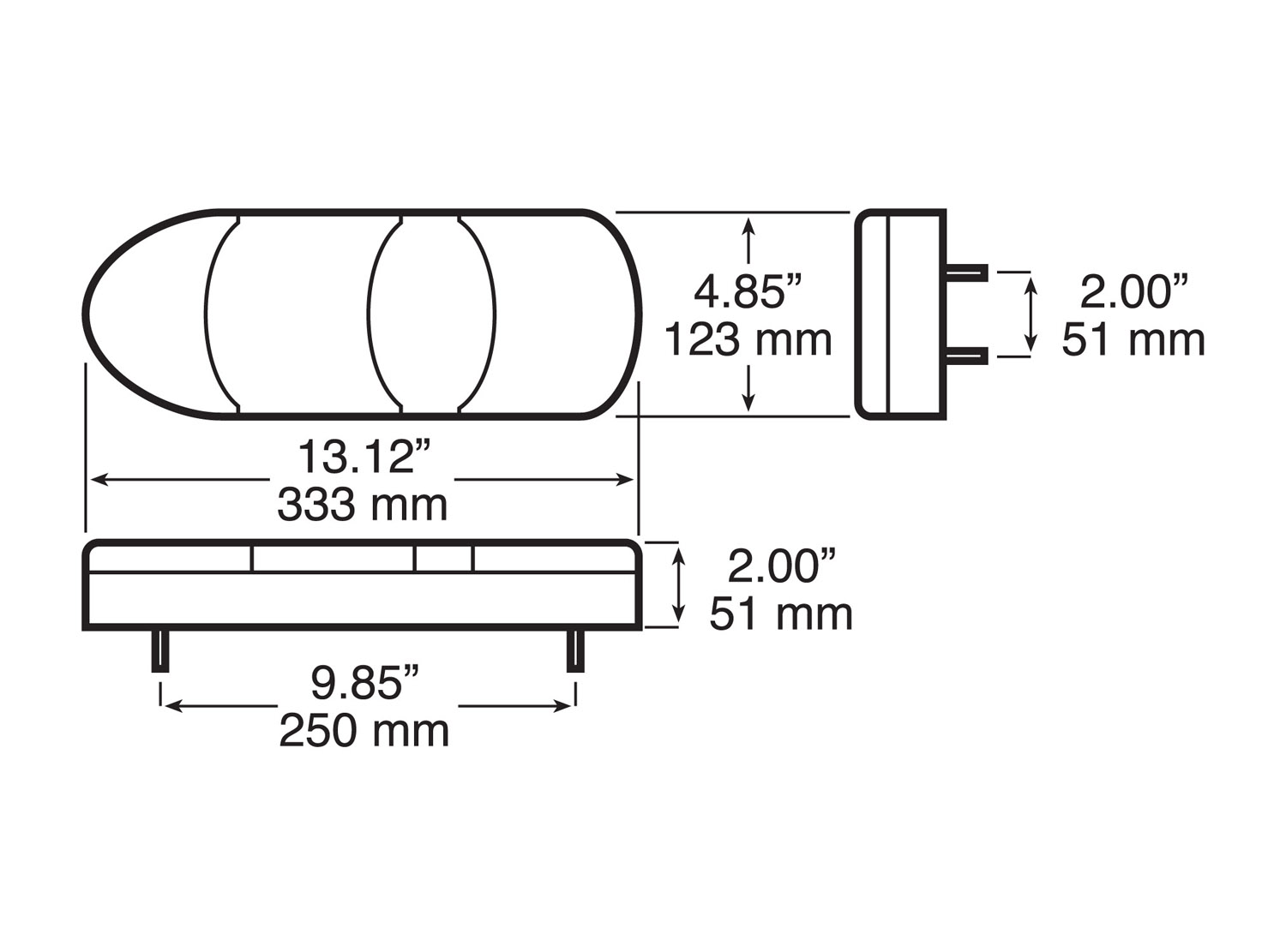

| Length | 13.12 Inch |
| Lens Color | Amber + Red + Clear |
| Shape | Rectangular |
| Height | 4.85 Inch |
| Integral Reflex | Yes |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Width | 2 Inch |
| Multi-Volt | Yes |
| Regulatory Compliance | ECE |
| Light Color | Amber + Red + White |
| Voltage | 12V / 24V |
| Mounting Type | Stud |
| Ground Type | Wire |
| termination | AMP |
| Container Type | Bulk Pack |
| W/ License Light | No |
| Mounting Centers | 9.85 Inch |
