163FA-MV
LED Marker/ Clearance, Round, Flange 2.5 inch Multi-volt, amber, poly bag
163FA-MV
LED Marker/ Clearance, Round, Flange 2.5 inch Multi-volt, amber, poly bag
- 5 diodes.
- 9-16 volt operating range, 9-32 volts for "-MV" multi-volt units.
- Accepts industry standard 2-prong plug.
- Assembled in USA.
- Does not require “Top” positioning to meet FMVSS 108 standard.
- Functions as both clearance and side marker light when mounted at a 45 degree angle. Use 143-18 grommet for PC-rated installation.
- Kits include LED light, 143-18 grommet and 162-49 plug.
- Multivolt version available.
- PC Rated.
Standard Order Quantity: 1
| M163A | PC-Rated 2 1/2 inch Clearance & Side Marker Light; amber grommet; bulk pack |
| 163R | PC-Rated 2 1/2 inch Clearance & Side Marker Light; red grommet; poly bag |
| M163SR | PC-Rated 2 1/2 inch Clearance & Side Marker Light; red surface mount; bulk pack |
| M163SA | PC-Rated 2 1/2 inch Clearance & Side Marker Light; amber surface mount; bulk pack |
| 163A | PC-Rated 2 1/2 inch Clearance & Side Marker Light; amber grommet; poly bag |
| M163R | PC-Rated 2 1/2 inch Clearance & Side Marker Light; red grommet; bulk pack |
| M163FR | PC-Rated 2 1/2 inch Clearance & Side Marker Light; red flange; bulk pack |
| M163FA | PC-Rated 2 1/2 inch Clearance & Side Marker Light; amber flange; bulk pack |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |

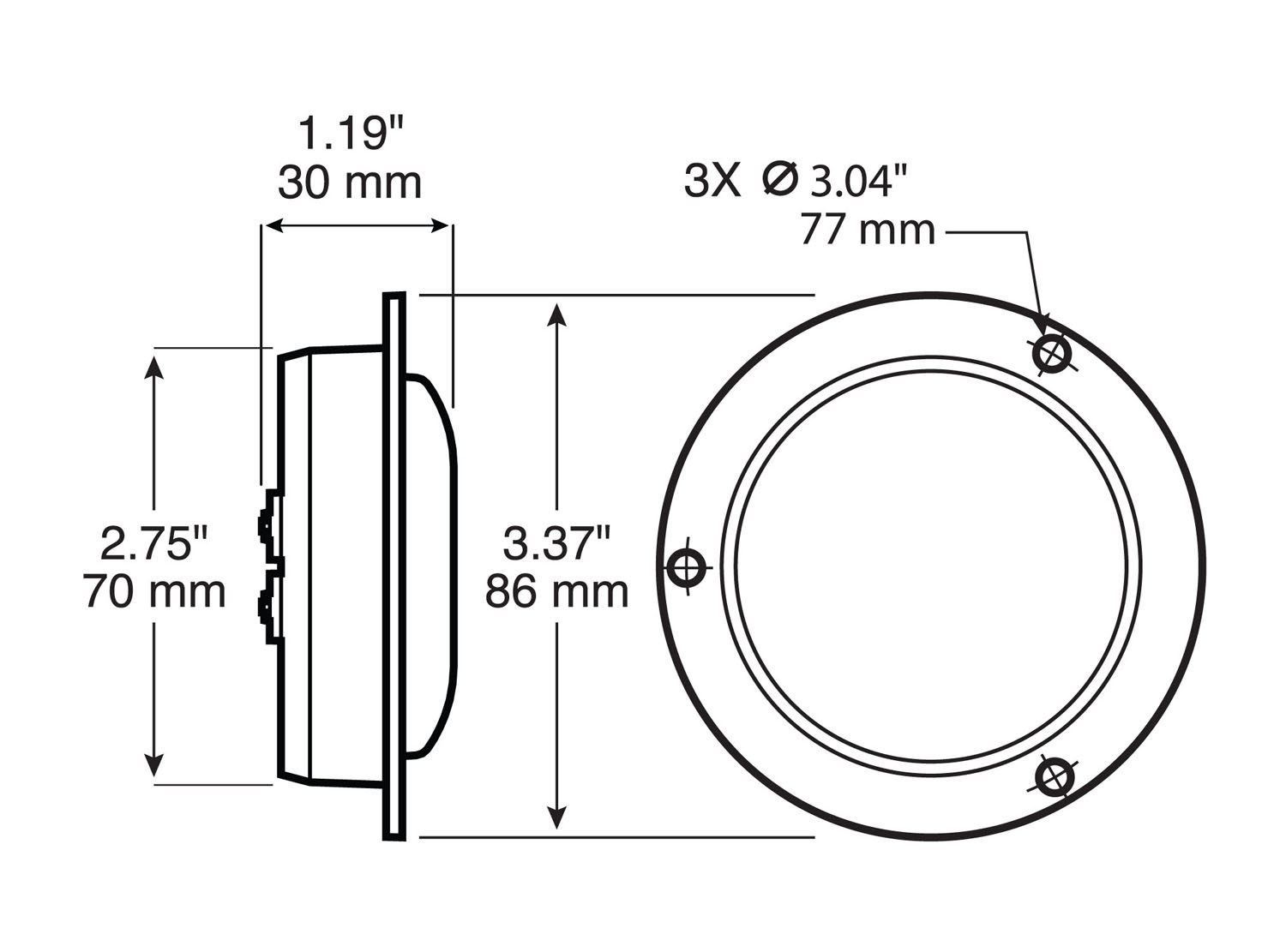

| Diameter | 3.38 Inch |
| Height | 3.37 Inch |
| Length | 1.19 Inch |
| Voltage | 12V / 24V |
| Width | 3.37 Inch |
| Integral Reflex | No |
| Mounting Type | Flange |
| PC Rated | Yes |
| Light Color | Amber |
| Bulb/Diode Count | 5 |
| Lens Color | Amber |
| Bulb Technology | LED |
| Regulatory Compliance | DOT |
| Shape | 2-1/2-inch Round |
| Container Type | Poly Bag |
| Multi-Volt | Yes |
| Mounting Centers | 2.63 Inch |
| Submersible | Yes |
