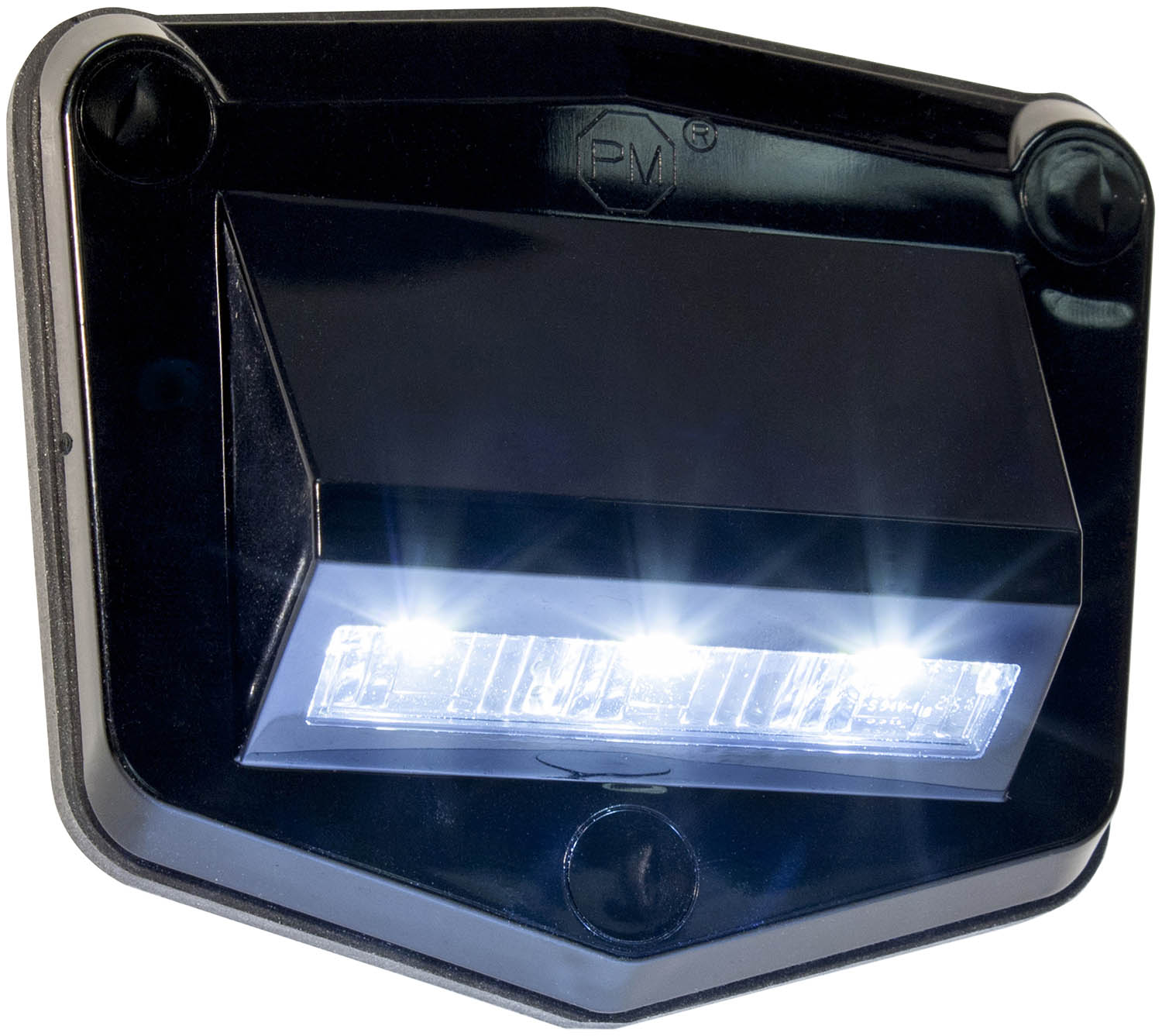

397C
Step Well Courtesy Light, black, stripped leads, poly bag
397C
Step Well Courtesy Light, black, stripped leads, poly bag

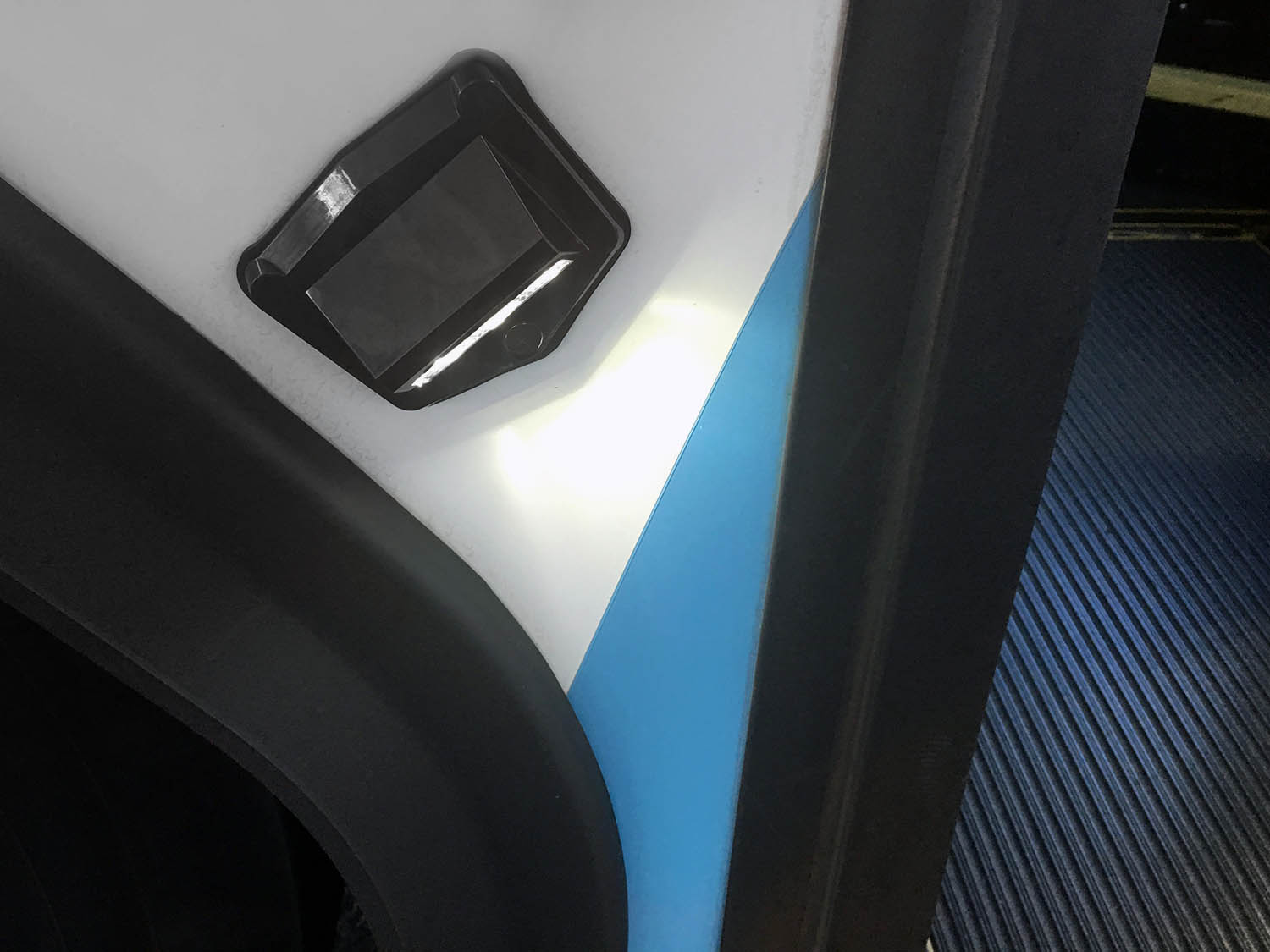

- Step Well Courtesy Light
- Low profile, hardwired design meets ADA requirements for step well lighting.
- Perfect for transit, bus & RV use.
- Multi-volt design compatible with 12 & 24 volt systems.
- Sealed circuit board with two hardwired leads.
- Includes mounting gasket, 3 mounting screws and 3 matching screw covers.
- 130 lumens output.
Standard Order Quantity: 12
| M397C | Step Well Courtesy Light, black, stripped leads, bulk pack |
| Voltage | 12V / 24V |
| Light Color | White |
| Bulb/Diode Count | 3 |
| Lens Color | Clear |
| Shape | Rectangular |
| Bulb Technology | LED |
| Ground Type | Wire |
| termination | Stripped Wire |
| Mounting Type | Surface |
| Container Type | Poly Bag |
| Regulatory Compliance | ADA |

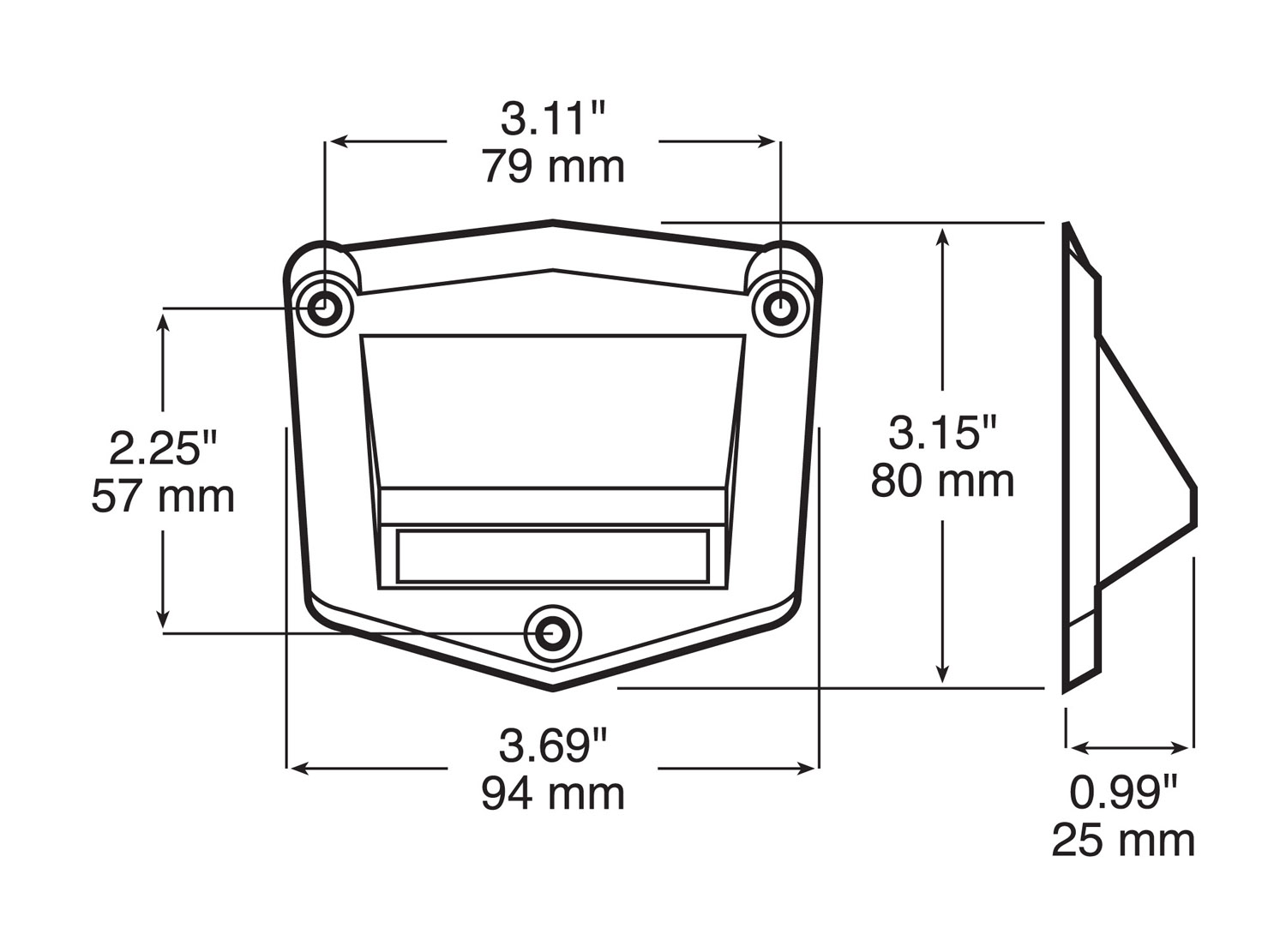

| Height | 3.15 Inch |
| Length | 3.69 Inch |
| Width | 0.99 Inch |
| Minimum Voltage | 9 Volts |
| Maximum Voltage | 32 Volts |
| Integral Switch | No |
| Submersible | No |
| Multi-Volt | Yes |
| Brightness | 130 Lumens |
