821C-10
Lumen X ® PL3 Oval Back-Up Light; grommet; poly bag
821C-10
Lumen X ® PL3 Oval Back-Up Light; grommet; poly bag

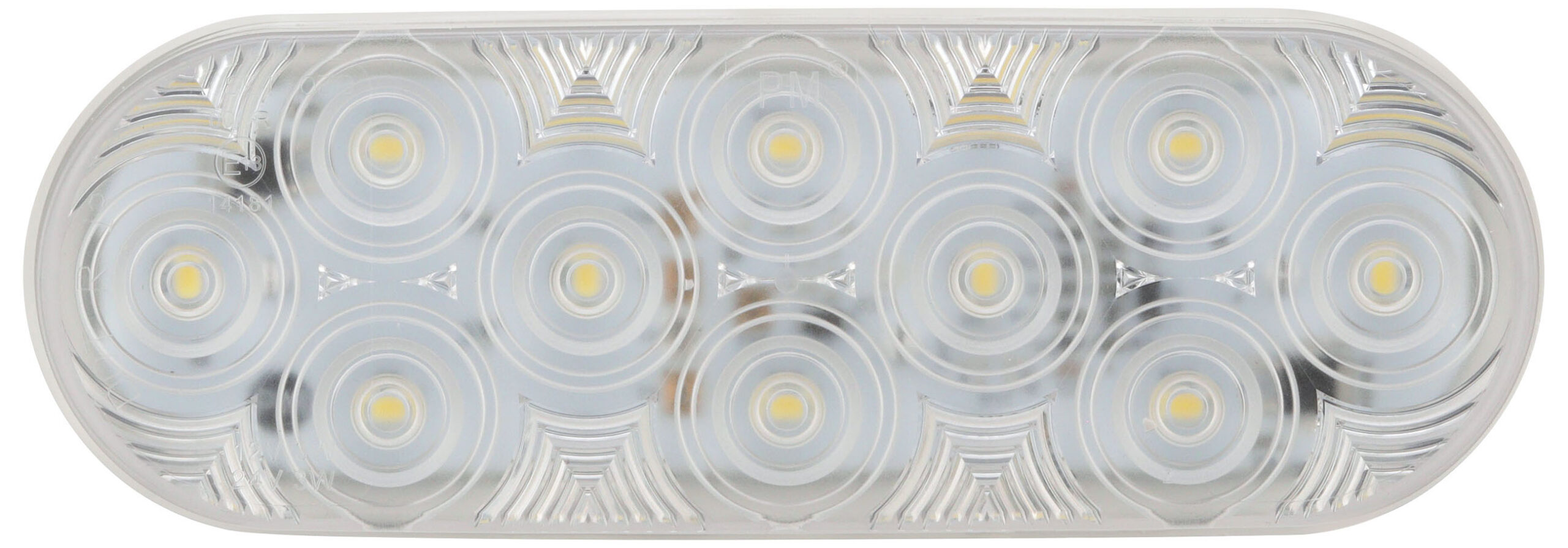

- Oval Back-Up Light
- Multi-volt design compatible with 12 & 24 volt systems.
- PL3 socket integrated into housing.
- Single light meets DOT req. when properly mounted.
- Meets DOT requirements in any horizontal / vertical / 360 degree position.
- 821 kit includes light, grommet and 421-49 plug.
- 822 kit includes light and 421-49 plug.
- See matching stop / turn / tail light on page 5.
- See matching turn signal light on page 15.
Standard Order Quantity: 1
| 822KC-10 | Lumen X ® PL3 Oval Back-Up Light; flange kit; poly bag |
| 822C-10 | Lumen X ® PL3 Oval Back-Up Light; flange; poly bag |
| M821C-10 | Lumen X ® PL3 Oval Back-Up Light; grommet; bulk pack |
| M822C-10 | Lumen X ® PL3 Oval Back-Up Light; flange; bulk pack |
| 821KC-10 | Lumen X ® PL3 Oval Back-Up Light; grommet kit; poly bag |
| Voltage | 12V / 24V |
| Lens Color | Clear |
| Multi-Volt | Yes |
| Regulatory Compliance | DOT |
| Shape | Oval |
| Bulb/Diode Count | 10 |
| Mounting Type | Grommet |
| Light Color | White |
| termination | PL3 |
| Bulb Technology | LED |
| Container Type | Poly Bag |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Height | 2.31 Inch |
| Length | 6.5 Inch |
| Width | 1.62 Inch |
| Submersible | Yes |
