428
Universal Stud- Stop / Turn / Tail Light; with license light; poly bag
428
Universal Stud- Stop / Turn / Tail Light; with license light; poly bag
- NOTE: Less than 75 sq. cm of effective, projected luminous lens area. For use on vehicles under 80" wide unless used in pairs per side.
- Stud-mount, combination tail light that functions as stop, turn, tail, and license light (428 only).
- Grounds through mounting hardware.

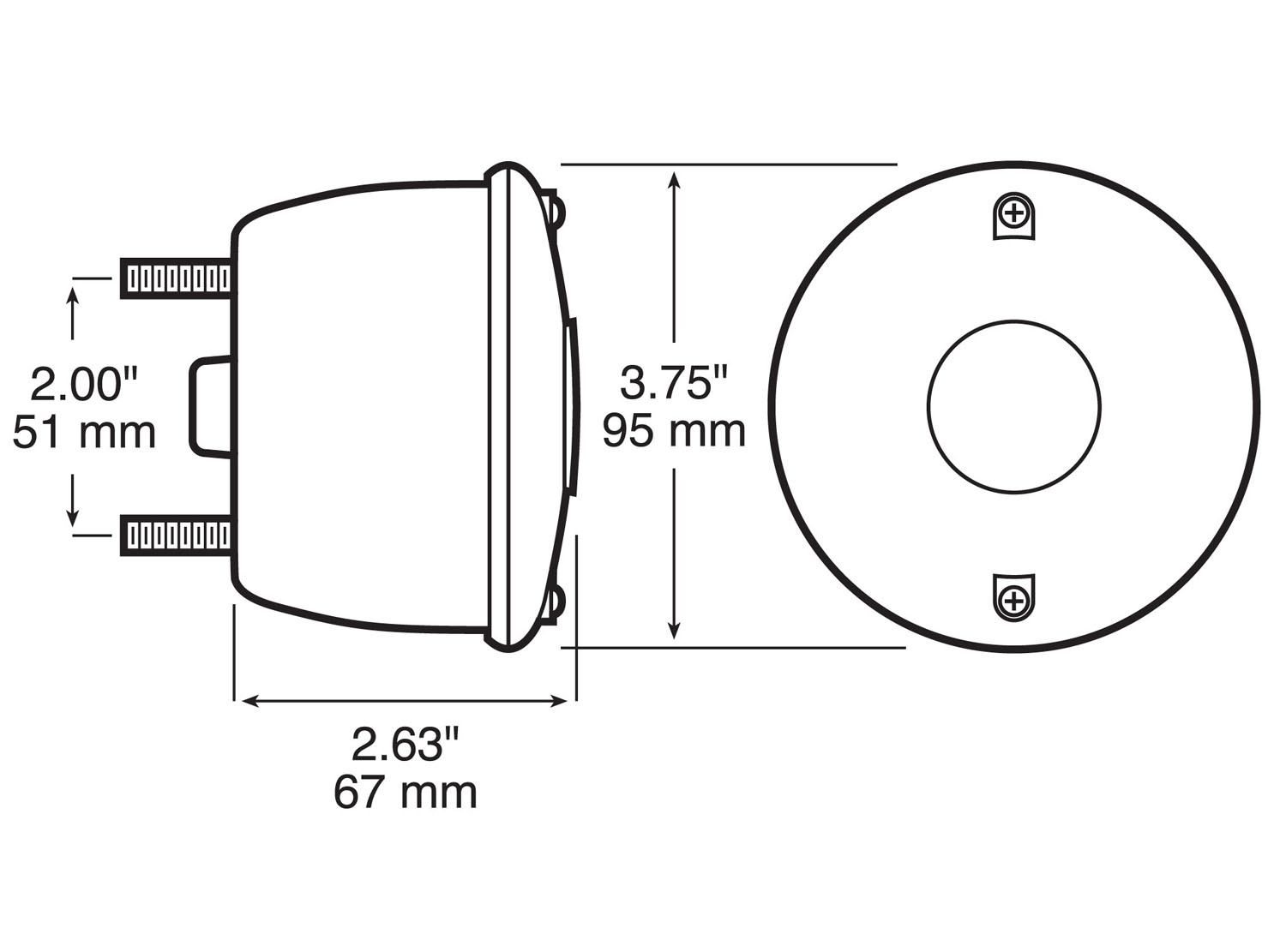

- Mounts with two 1/4" studs on 2" centers.

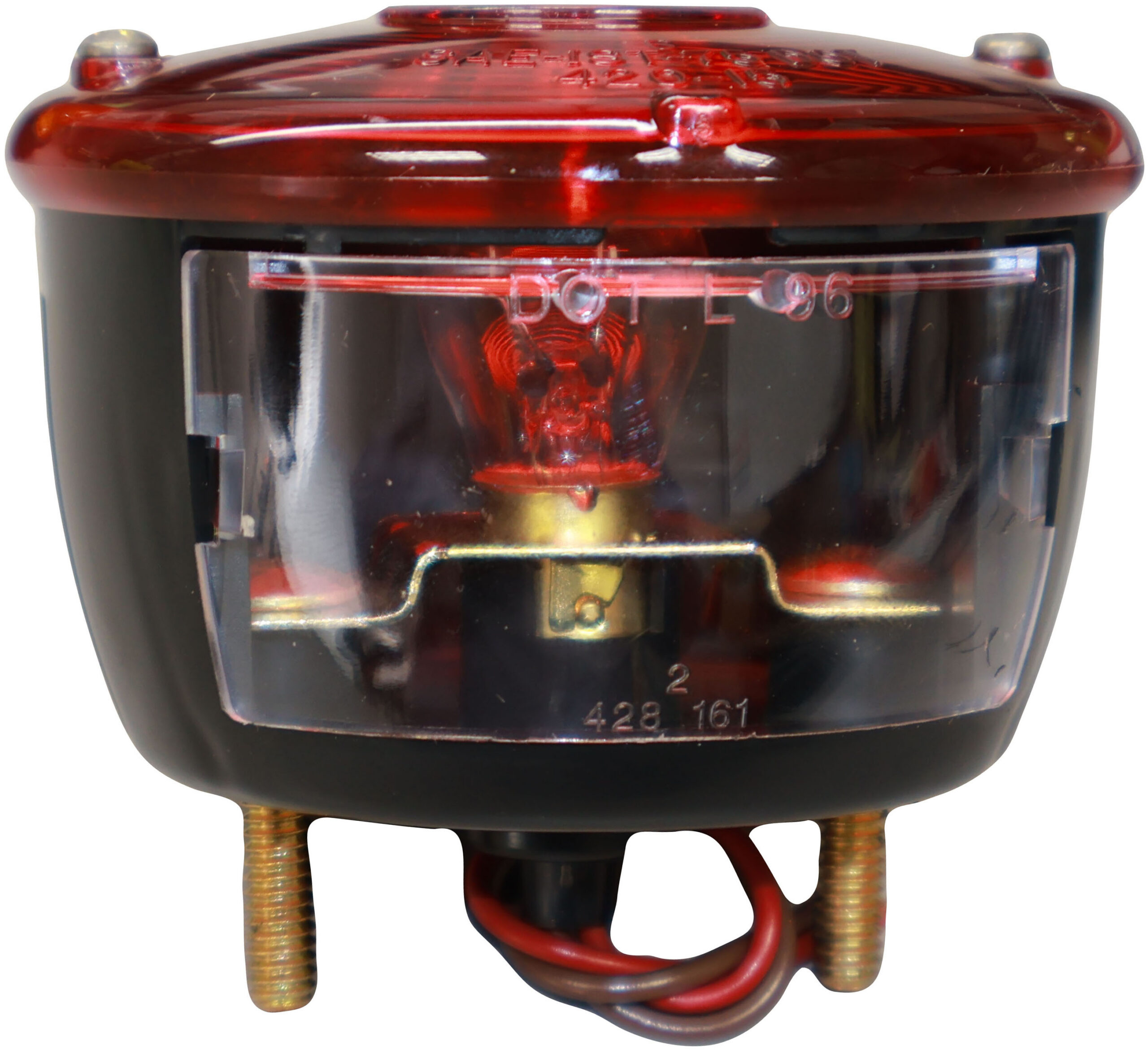

- Features 3-3/4" diameter wrap-over lens retained by two screws, black plastic housing, and two 10" lead wires.
Standard Order Quantity: 1
| M428S | Universal Stud- Stop / Turn / Tail Light; without license light; bulk pack |
| V428S | Universal Stud- Stop / Turn / Tail Light; without license light; Viz Pack |
| M428 | Universal Stud- Stop / Turn / Tail Light; with license light; bulk pack |
| 428S | Universal Stud- Stop / Turn / Tail Light; without license light; poly bag |
| V428 | Universal Stud- Stop / Turn / Tail Light; with license light; Viz Pack |
| Bulb Technology | Incandescent |
| Bulb/Diode Count | 1 |
| Container Type | Poly Bag |
| Diameter | 3.75 Inch |
| Filament Quantity | 1 |
| Ground Type | Mounting Hardware |
| Height | 3.75 Inch |
| Integral Reflex | No |
| Length | 3.75 Inch |
| Lens Color | Red |
| Light Color | Red |
| Mounting Centers | 2 Inch |
| Mounting Type | Stud |
| Multi-Volt | No |
| Regulatory Compliance | DOT |
| Replaceable Bulb | Yes |
| Shape | Round |
| Submersible | No |
| termination | Stripped Wire |
| Voltage | 12 Volts |
| W/ License Light | Yes |
| Width | 2.63 Inch |
| Truck-Lite Interchange | 80461R |
| Grote Interchange | 50872 |
