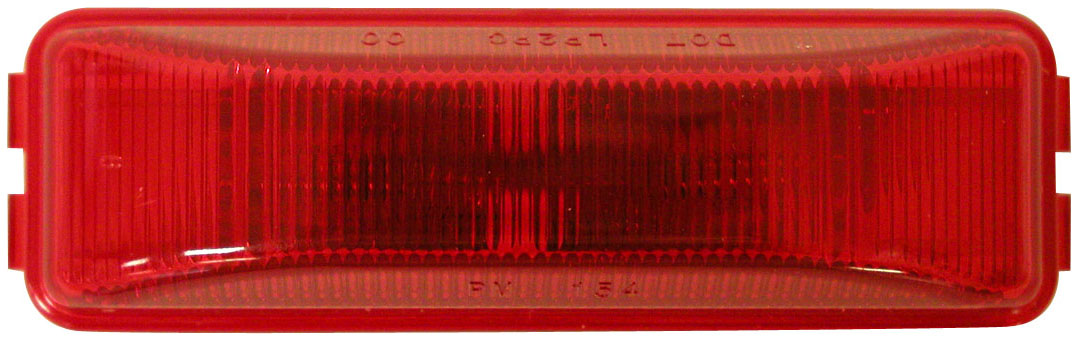

M154R
PC-Rated Clearance/Side Marker Light; red; bulk pack
M154R
PC-Rated Clearance/Side Marker Light; red; bulk pack
- Mounting bracket and electrical connector required.
- Lens is welded to housing to form single unit.
- Combination side marker and clearance light when properly mounted.
- See mounting accessories section for additional mounting options.
- Kits include light, bracket and molded terminal pad with lead wire.
- Features two 15,000-hour-rated, long-life bulbs.
- Clearance/Side Marker Light
- For an LED alternative, consider Peterson 161 series.
Standard Order Quantity: 100
| M154KR | PC-Rated Clearance/Side Marker Light; red kit; bulk pack |
| M154KA | PC-Rated Clearance/Side Marker Light; amber kit; bulk pack |
| M154A | PC-Rated Clearance/Side Marker Light; amber; bulk pack |
| 154R | PC-Rated Clearance/Side Marker Light; red; poly bag |
| 154KR | PC-Rated Clearance/Side Marker Light; red kit; poly bag |
| 154KA | PC-Rated Clearance/Side Marker Light; amber kit; poly bag |
| V154R | PC-Rated Clearance/Side Marker Light; red; Viz Pack |
| V154A | PC-Rated Clearance/Side Marker Light; amber; Viz Pack |
| 154A | PC-Rated Clearance/Side Marker Light; amber; poly bag |
| B153-49 | plug (mfg. pack - std qty 100) |
| B154-11K-BT1 | black bracket kit, .180 bullet term (mfg. pack - std qty 100) |
| B154-09 | gray bracket (mfg. pack - std qty 100) |
| 154-10K | chrome bracket kit (poly pack - std qty 12) |
| 154-09K | gray bracket kit (poly pack - std qty 12) |
| B154-10 | chrome bracket (mfg. pack - std qty 100) |
| 154-11K | black bracket kit (poly pack - std qty 12) |
| 153-49 | plug (poly pack - std qty 12) |
| B154-11 | black bracket (mfg. pack - std qty 100) |
| B154-11K | black bracket kit (mfg. pack - std qty 100) |

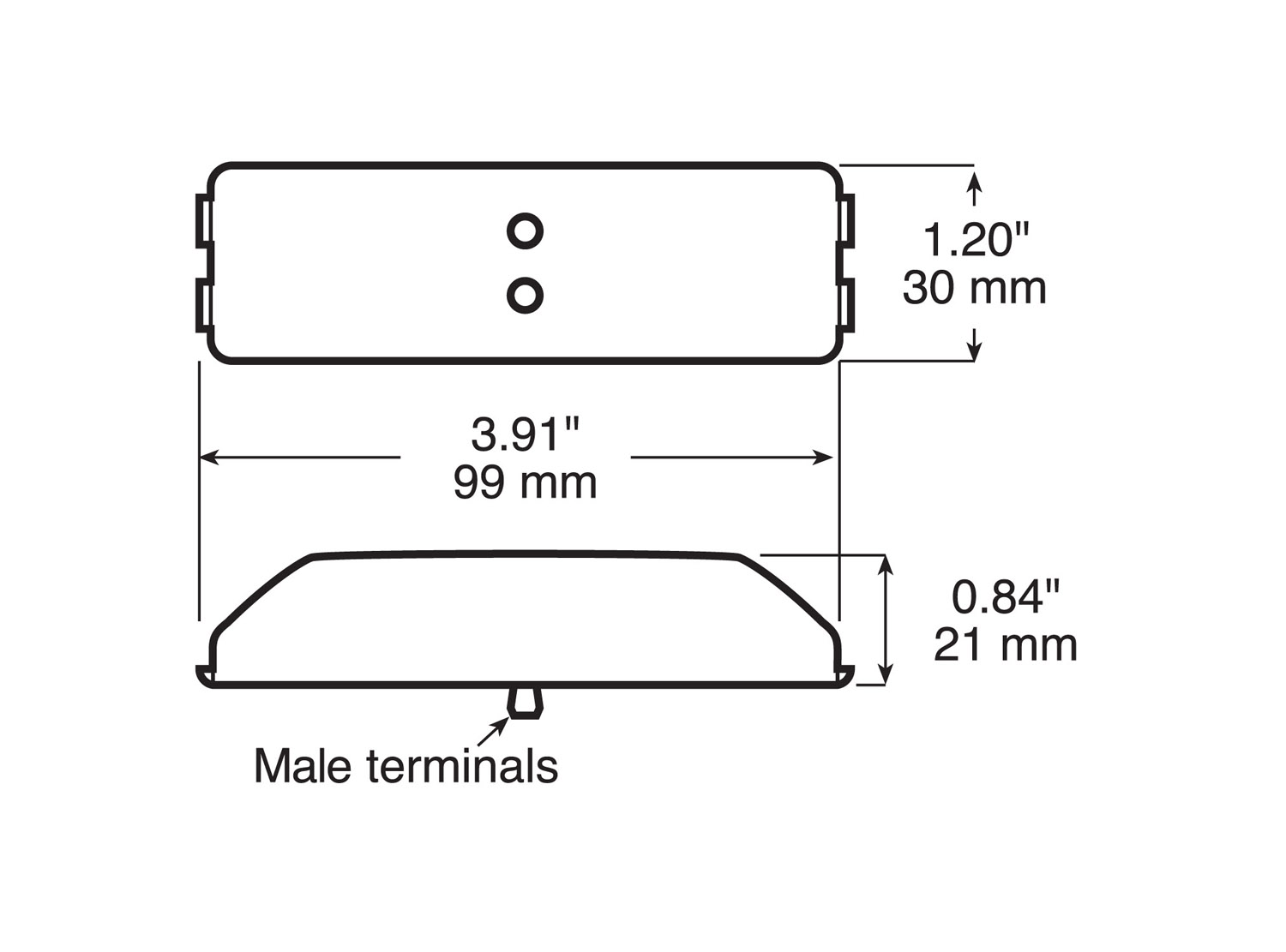

| Height | 1.2 Inch |
| Length | 3.91 Inch |
| Voltage | 12 Volts |
| Width | 0.84 Inch |
| Integral Reflex | No |
| Mounting Type | Surface |
| Ground Type | Mounting Hardware |
| PC Rated | Yes |
| Light Color | Red |
| Bulb/Diode Count | 2 |
| Replaceable Bulb | No |
| Lens Color | Red |
| Bulb Technology | Incandescent |
| Removable Lens | No |
| Filament Quantity | 1 |
| Regulatory Compliance | DOT |
| termination | PL10 |
| Shape | Rectangular |
| Container Type | Bulk Pack |
| Bulb Type | Incandescent |
| Submersible | Yes |
| Grote Interchange | 46742-3 |
| Bargman Interchange | 40-38-001 |
