P5600-1
Timer Box Switch; recessed 8″ 30 min 120 min, poly bag
P5600-1
Timer Box Switch; recessed 8″ 30 min 120 min, poly bag
TIMER BOX
- 2 minute warning slowly dims and raises light level prior to shut-off.
- 10 amp maximum load.
- 5600 and 5603 versions can be programmed for up to 2 hours of constant ON time by pressing the button up to 4 times (30 min added per push).
- 5603 has 90" leads w/ individual bullet plugs rather than unified connector.
- 9–32 volt operating range.
- Additional time can be added at any time, up to maximum.
- Assembled in USA.
- IP68 ingress rating. Suitable for installation inside or outside of vehicle.
- Lights flash per button push to indicate that command is received.
- Multivolt version available.
- Must be used in conjunction with 10 amp fuse for circuit protection.
- Pre-programmed for 30, 60, or 90 minutes of ON time per button push.
- Pushing and holding button turns off lights at any time.
Standard Order Quantity: 12
| 5601 | Timer Box Switch; recessed, orange 8 inch 60 min 60 min; bulk pack |
| P5600 | Timer Box Switch; Surface-Mount 8″ 30 min 120 min, poly bag |
| 5603 | Timer Box Switch; Surface-Mount, 2 plugs 90 inch 30 min 120 min; bulk pack |
| 5602 | Timer Box Switch; Surface-Mount 8 inch 90 min 90 min; bulk pack |
| 5600-1 | Timer Box Switch; recessed 8 inch 30 min 120 min; bulk pack |
| 5600 | Timer Box Switch; Surface-Mount 8 inch 30 min 120 min; bulk pack |
| California Proposition 65 | Warning-cancer-and-or-reproductive-harm-www-p65warnings-ca-gov |
| Contact Type | Programmable |
| Mounting Type | Recessed |
| Shape | Square |
| Container Type | Poly-bag |
| termination | 180-bullet |
| Maximum Voltage | 32-volts |
| Cycle Time | 30-x-4 |

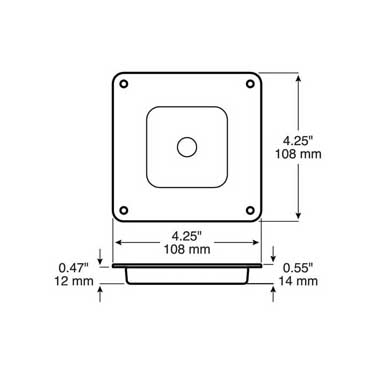

| Height | 4-25-inch |
| Length | 4-25-inch |
| Width | 0-55-inch |
| Weather Resistant | Yes |
| California Prop65 Required | Yes |
