M197FABS-AMP
Single Diode Lumen X ® 2 1/2 inch ABS Indicator Light, AMP; flange; bulk pack
M197FABS-AMP
Single Diode Lumen X ® 2 1/2 inch ABS Indicator Light, AMP; flange; bulk pack
- 2 1/2" ABS Indicator Light, AMP

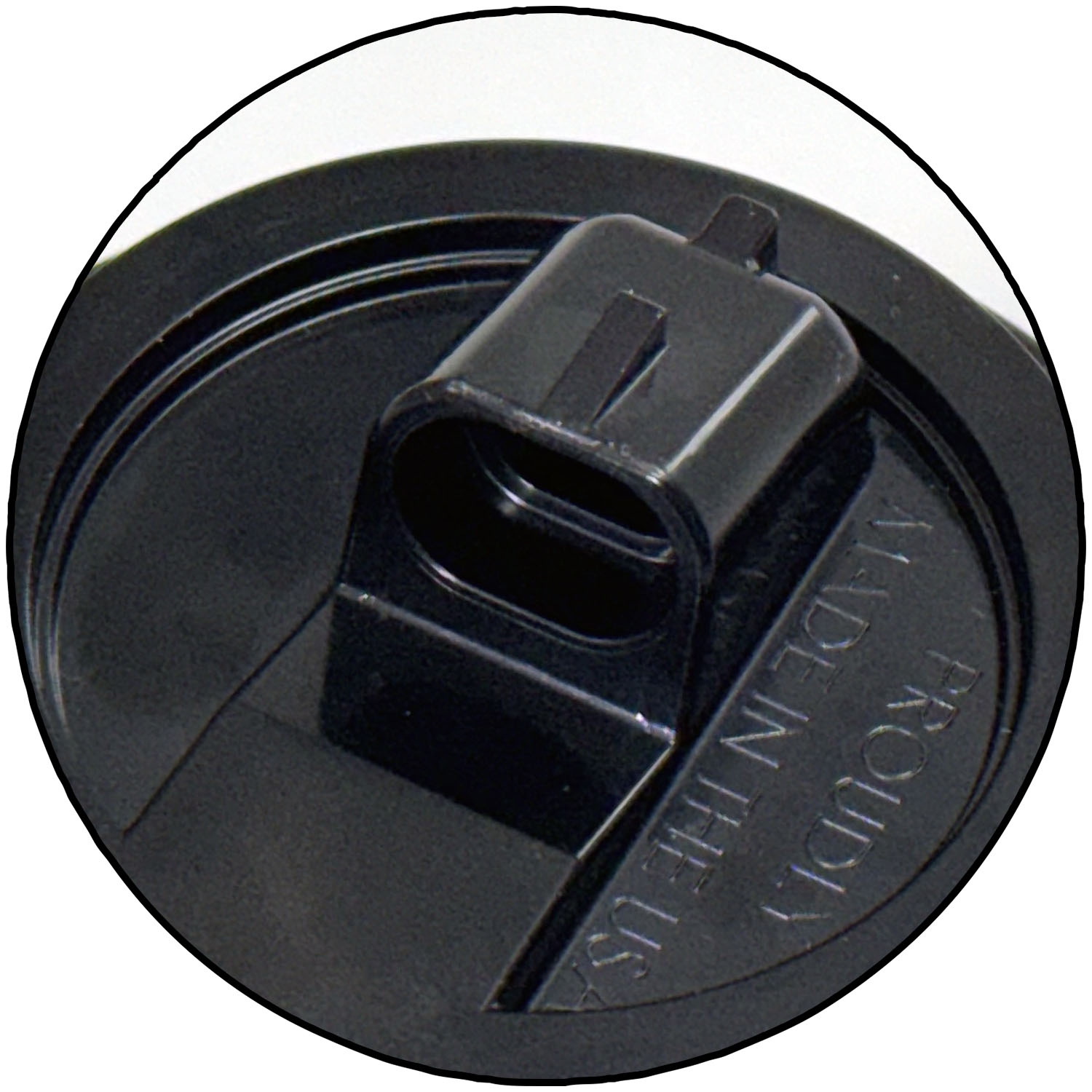

- 30 degree angle silicone-sealed AMP receptacle integrated into housing.
- ABS labeling permanently embossed onto lens.
- Conforms to DOT requirements as trailer ABS malfunction indicator light.
- Requires AMP style plug and grommet (197ABS-AMP) or mounting hardware (197F-ABS-AMP) for installation.
Standard Order Quantity: 50
| M197ABS | Single Diode Lumen X ® 2 1/2 inch ABS Indicator Light; PL10, grommet; bulk pack |
| M197ABS-AMP | Single Diode Lumen X ® 2 1/2 inch ABS Indicator Light; AMP, grommet; bulk pack |
| 197FABS-AMP | Single Diode Lumen X ® 2 1/2 inch ABS Indicator Light, AMP; flange; poly bag |
| 197ABS-AMP | Single Diode Lumen X ® 2 1/2 inch ABS Indicator Light; AMP, grommet; poly bag |
| 197ABS | Single Diode Lumen X ® 2 1/2 inch ABS Indicator Light; PL10, grommet; poly bag |
| Integral Reflex | No |
| Lens Color | Amber |
| Bulb/Diode Count | 1 |
| Multi-Volt | No |
| Regulatory Compliance | DOT |
| Mounting Type | Flange |
| termination | AMP |
| Shape | 2-1/2-inch Round |
| Bulb Technology | LED |
| Container Type | Bulk Pack |
| Maximum Voltage | 16 Volts |
| Minimum Voltage | 9 Volts |
| Voltage | 12 Volts |

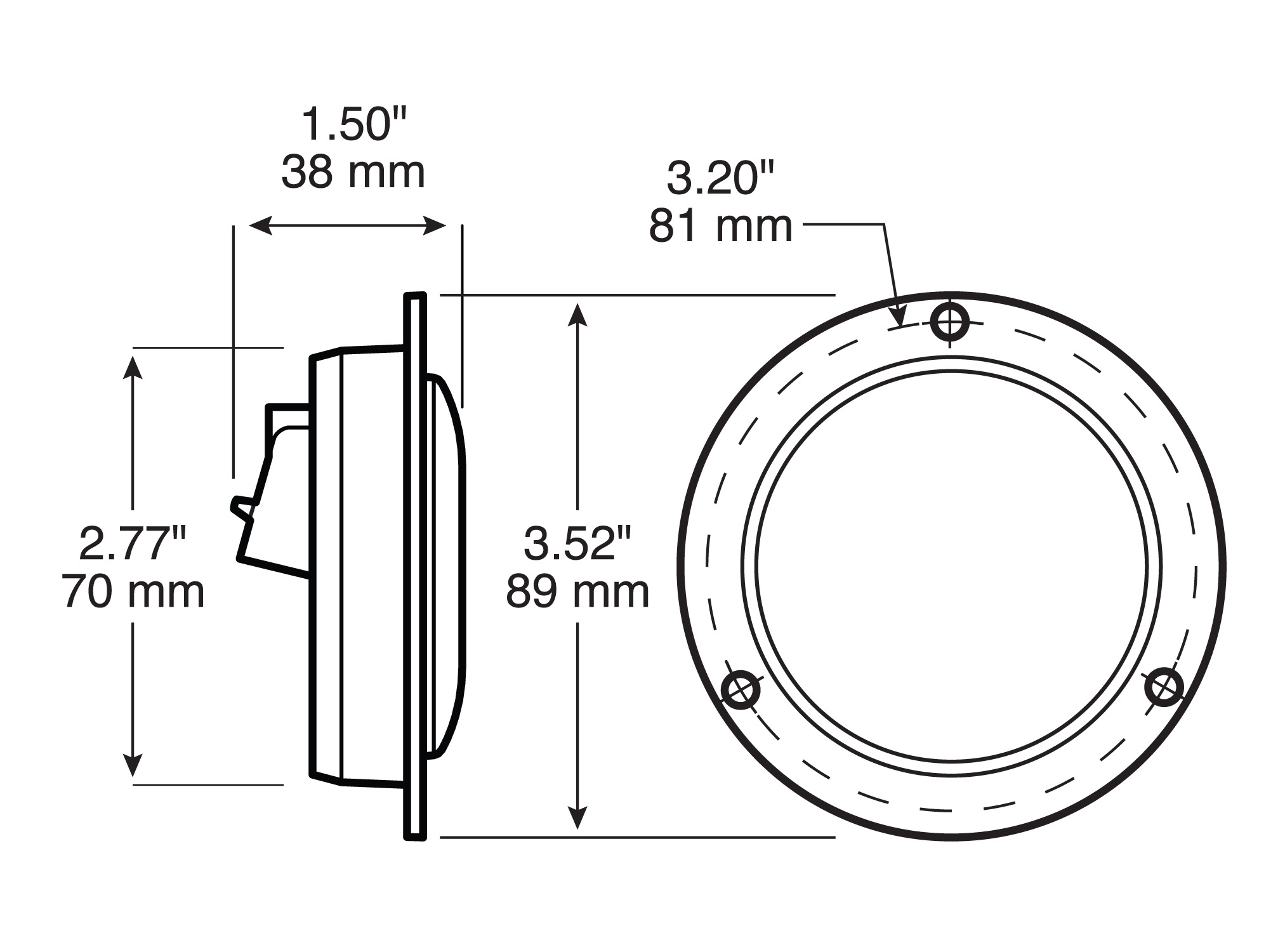

| Diameter | 3.52 Inch |
| Height | 3.52 Inch |
| Length | 1.5 Inch |
| Width | 3.52 Inch |
| Submersible | Yes |
