4850
Magnetic Door Sensor w/ .180 Bullets; kit; poly bag
4850
Magnetic Door Sensor w/ .180 Bullets; kit; poly bag

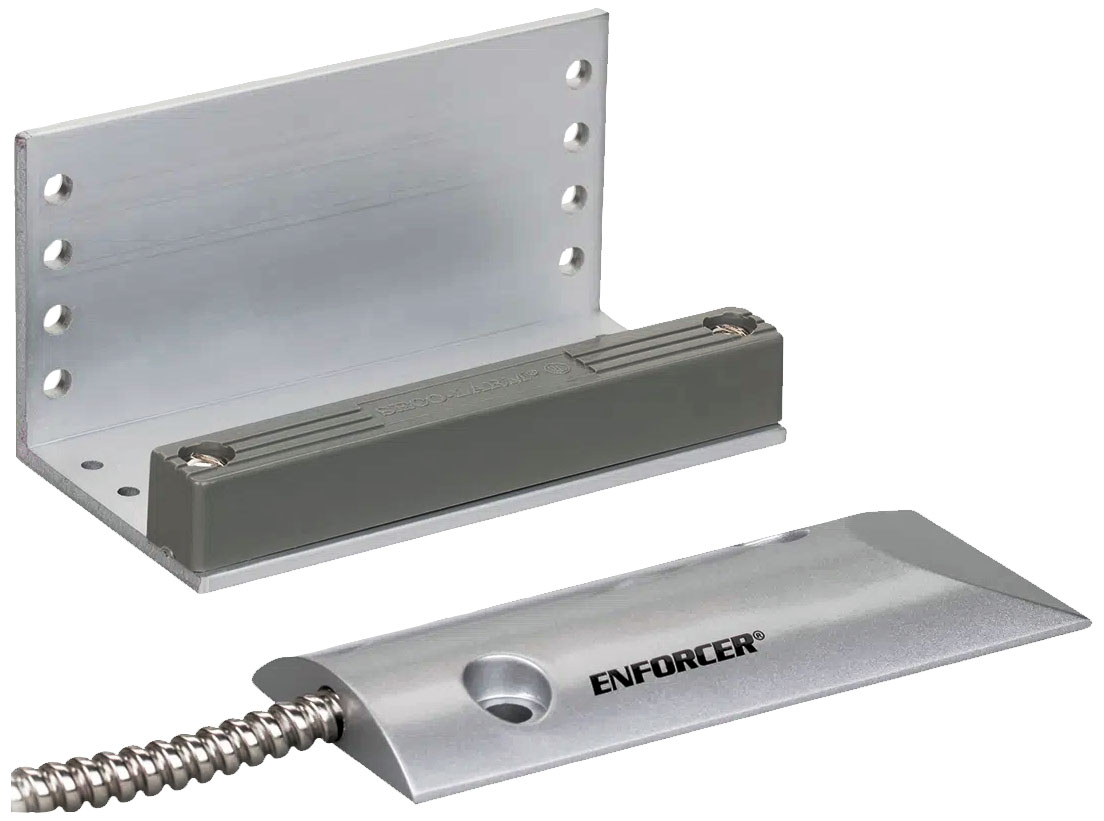

- Sensor kit includes magnetic reed switch unit and activation magnet pre-installed on mounting bracket.
- Open-loop circuit: Switch closes to complete circuit when magnet is removed from sensor proximity (i.e., door is raised).
- Suitable for 12-volt and 24-volt vehicles.
- Adjustable to fit most door-channel widths.

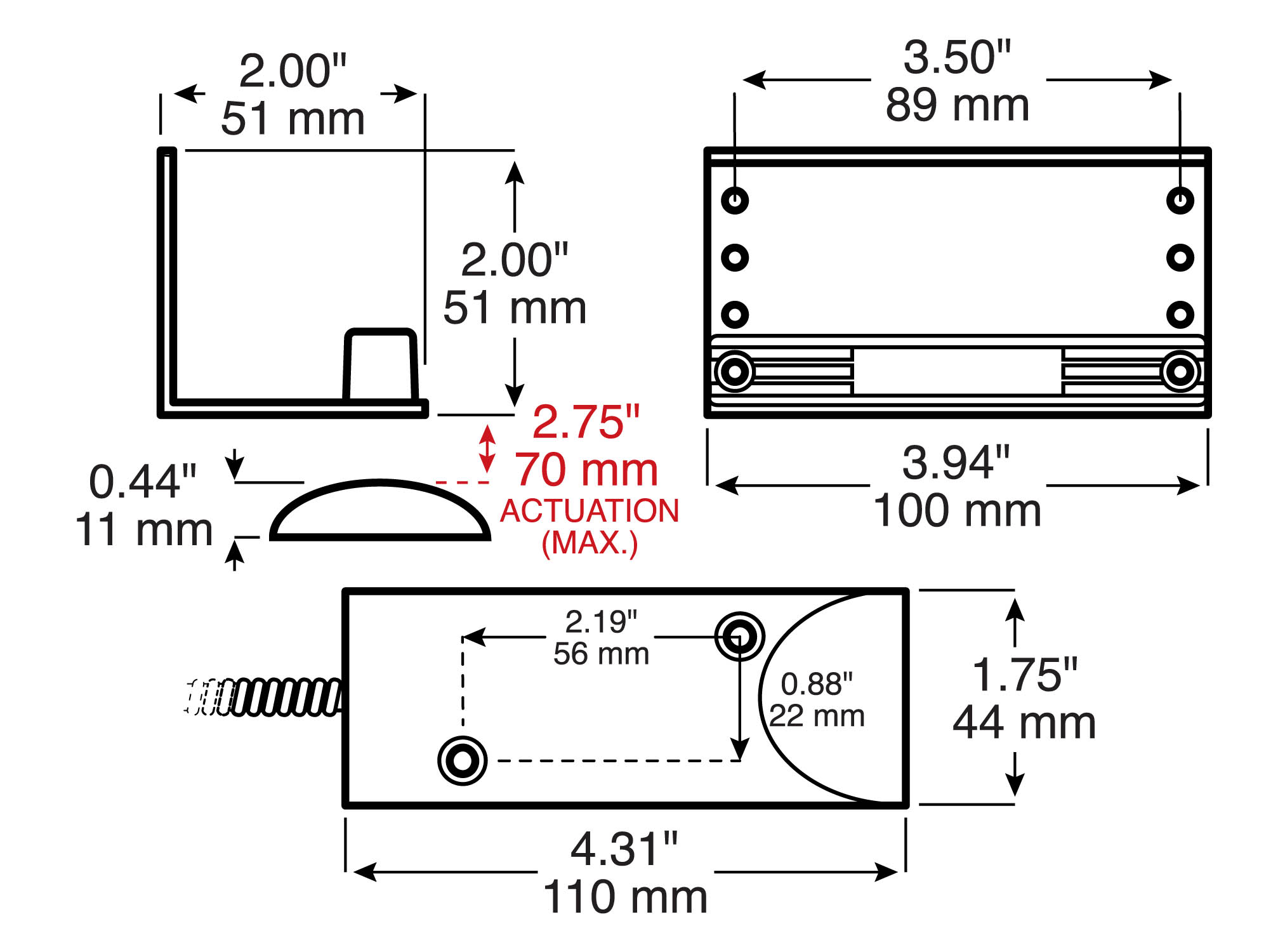

- Wide 2-3/4" (70mm) activation range.
- Included alloy mounting bracket is pre-drilled for easy adjustment.

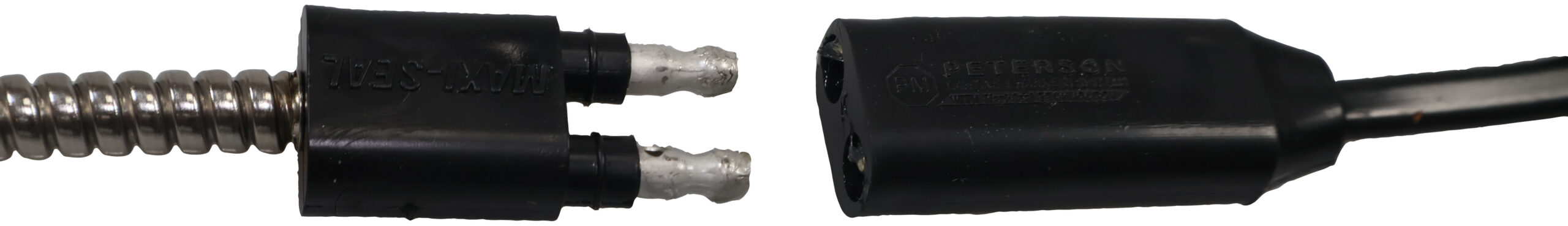

- 22-1/2" (57 cm) armored wire lead is terminated with twin molded.180" bullets.
- Includes matching receptacle pigtail with crimp connectors and heat-shrink sheath.
- 3 watt maximum current rating.
- IP66 ingress rating for weatherproof installation.
- Operating temperature -15 degree~160 degree F (-25 degree~70 degree C)
Standard Order Quantity: 1
| Body Material | Plastic / Aluminum |
| Contact Type | Magnetic |
| Container Type | Poly Bag |
| Height | 2 Inch |
| Length | 2 Inch |
| Maximum Operating Temperature | 70 Degrees Celsius, Centigrade |
| Minimum Operating Temperature | -25 Degrees Celsius, Centigrade |
| Mounting Type | Surface |
| termination | .180 Bullet |
| Weather Resistant | Yes |
| Width | 4.31 Inch |
