904-MV
3 inch X 3 inch Square Work Light; square; box
904-MV
3 inch X 3 inch Square Work Light; square; box

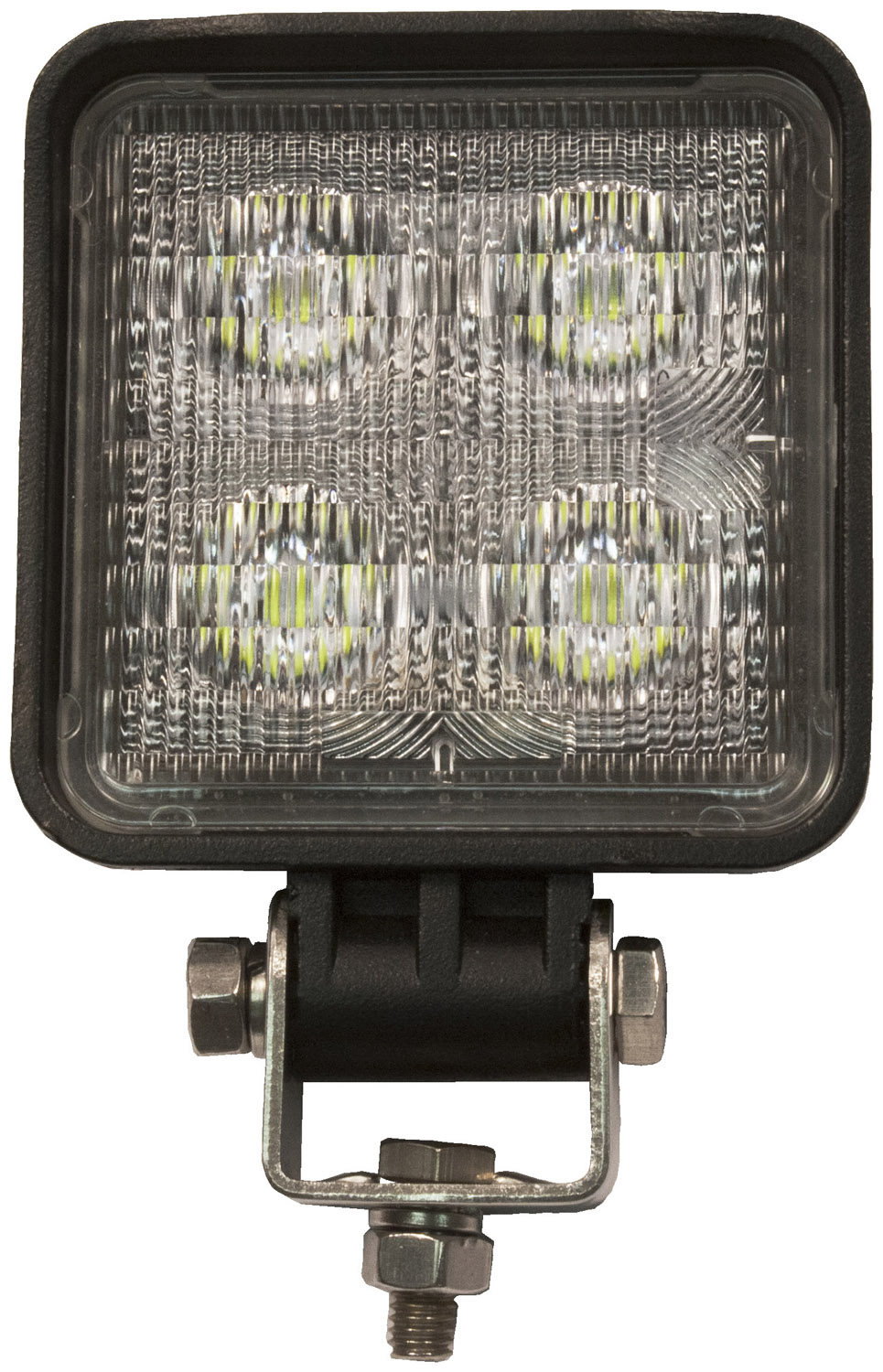

- 3" X 3" Square Work Light
- Rugged, die-cast aluminum body with heat dissipating fins.
- Color Temperature: 6300k
- Multi-volt circuitry is compatible with 12V and 24V vehicles.
- Hardwired design with 2-wire PVC jacketed harness.
- Draws 0.98A @ 12V, 0.43A @ 24V.
- Certified to ECE Reg 10.
- Certified to meet IP67 ingress protection rating.
- Stainless steel mounting hardware.
- 750 lumens output.
Standard Order Quantity: 1
| V904-MV | 3 inch X 3 inch Square Work Light; square; Viz Pack |
| Mounting Type | Stud |

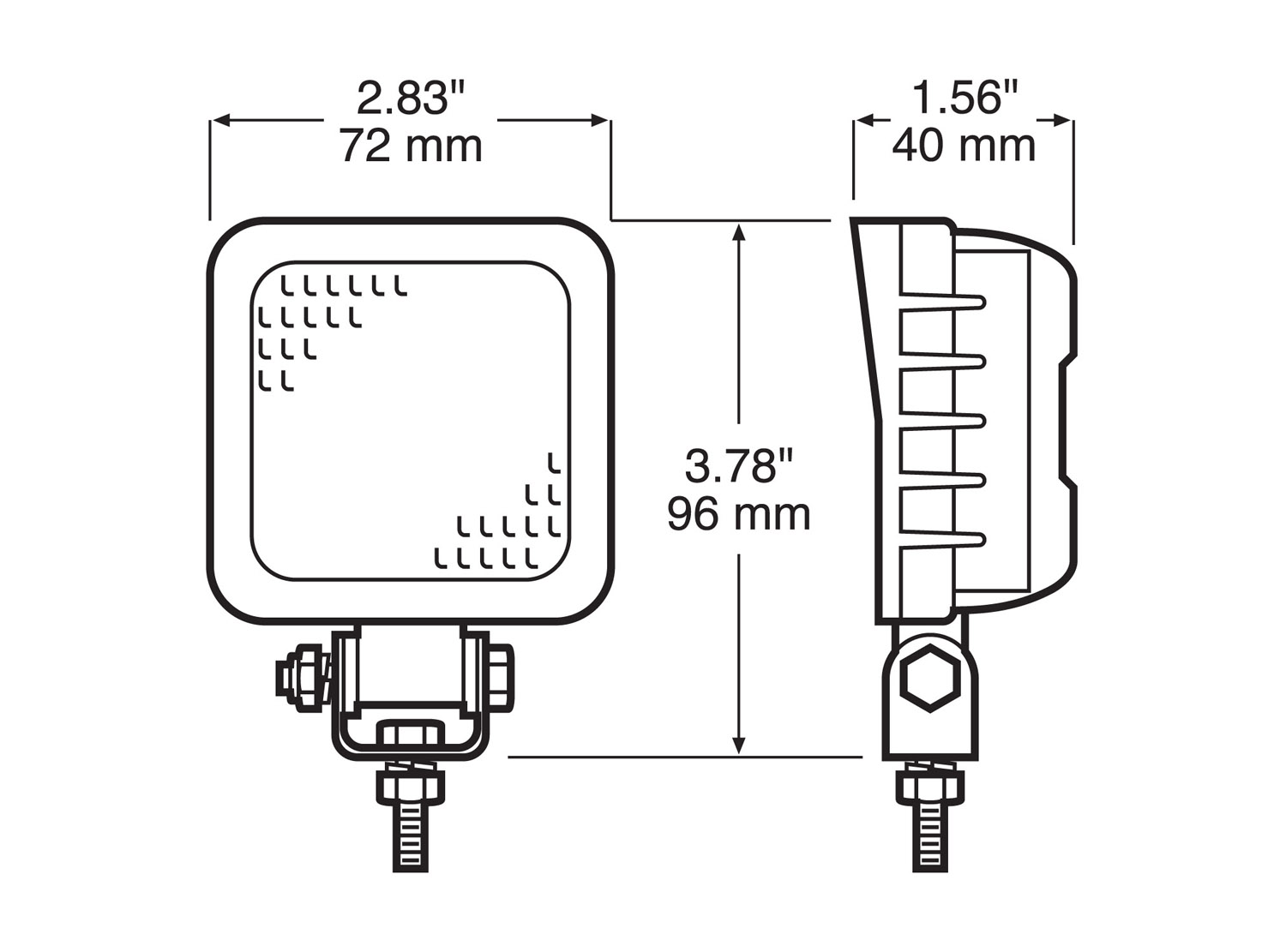

| Width | 1.56 Inch |
| Length | 2.83 Inch |
| Container Type | Box |
| Bulb Technology | LED |
| Shape | Square |
| Bulb/Diode Count | 4 |
| Light Color | White |
| termination | Stripped Wire |
| Exterior use | Yes |
| Beam Pattern | Flood |
| Coil cord | No |
| Voltage | 12V / 24V |
| Multi-Volt | Yes |
| Integral Switch | No |
| Regulatory Compliance | ECE |
| Color Temperature | 6300k |
| Height | 3.78 Inch |
| Maximum Voltage | 36 Volts |
| Minimum Voltage | 9 Volts |
| Submersible | No |
| Lens Color | Clear |
| Brightness | 750 Lumens |
| Truck-Lite Interchange | 8155 |
| Grote Interchange | BZ601-5 |
