817W-9

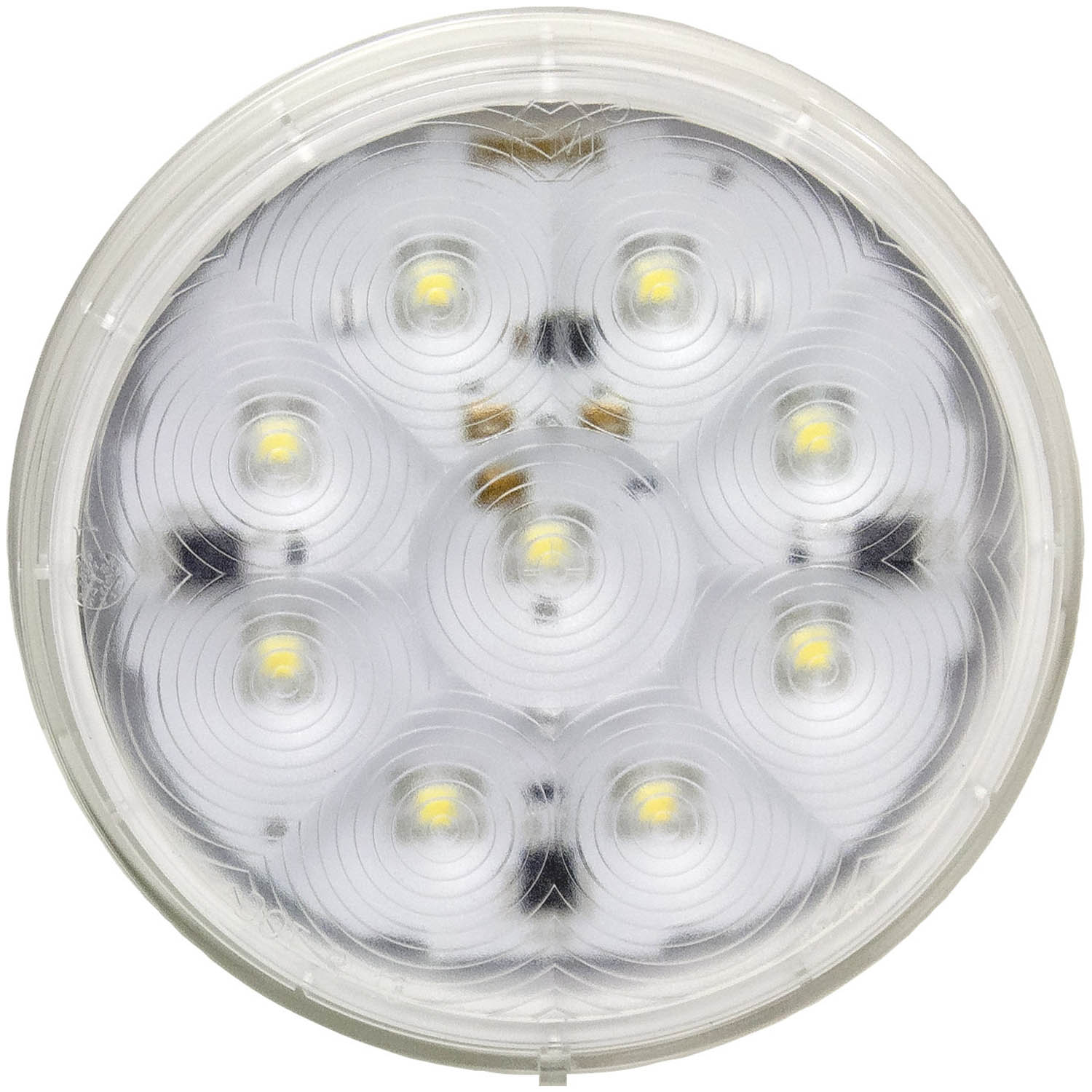

Lumen X ® 450-Lumen AMP 4 inch Round Work Light, Multi-volt; grommet; poly bag
817W-9
Lumen X ® 450-Lumen AMP 4 inch Round Work Light, Multi-volt; grommet; poly bag
- 4" Round Work Light, Multi-volt
- 450 lumen flood pattern output.
- Multi-volt design is compatible with both 12V and 24V systems.
- Integral 30 degree angle silicone-sealed AMP receptacle.
- Draws 0.29A @ 12V, 0.22A @ 24V
- See 907 pedestal-mount version at right.
Standard Order Quantity: 1
| 417-1 | surface mount bracket (poly bag - std qty 40) |
| 426-18 | grommet (poly bag - std qty 12) |
| B426-18 | grommet (bulk pack - std qty 100) |
| 417-48 | hardshell plug (poly bag - std qty 6) |
| B417-48 | hardshell plug (bulk pack - std qty 100) |
| 817-48 | molded plug (poly bag - std qty 12) |
| B817-48 | molded plug (bulk pack - std qty 100) |
| Mounting Type | Grommet |
| Width | 1.42 Inch |
| Length | 4.25 Inch |
| Container Type | Poly Bag |
| Bulb Technology | LED |
| Shape | Round |
| Bulb/Diode Count | 9 |
| Light Color | White |
| termination | AMP |
| Exterior use | Yes |
| Beam Pattern | Flood |
| Lens Color | Clear |
| Coil cord | No |
| Voltage | 12V / 24V |
| Multi-Volt | Yes |
| Integral Switch | No |
| Height | 4.25 Inch |
| Diameter | 4.25 Inch |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Submersible | Yes |
| Truck-Lite Interchange | 44308C |
