903-MV
3 inch X 5 inch Rectangular Work Light; stripped leads; box
903-MV
3 inch X 5 inch Rectangular Work Light; stripped leads; box

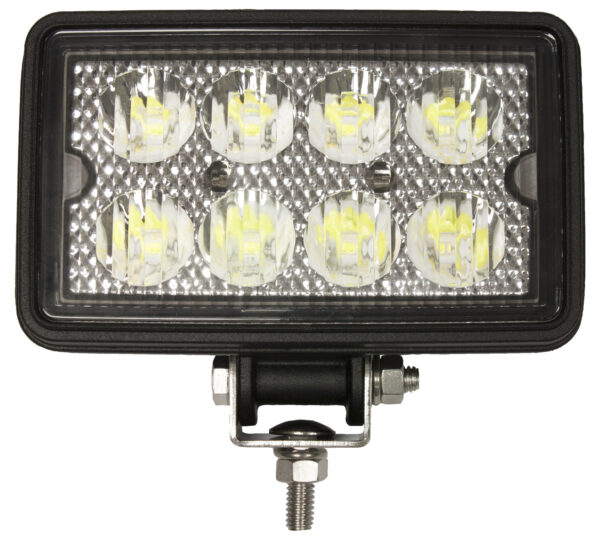

- 3" X 5" Rectangular Work Light
- Extra-rugged, commercial-grade construction.
- Rugged, die-cast aluminum body with heat dissipating fins.
- Flood pattern.
- Multi-volt circuitry is compatible with 12V and 24V vehicles.
- 2-Conductor black PVC jacketed harness available with stripped leads, or terminated with Packard connector.
- Draws 2.65A @ 12V, 1.0A @ 24V.
- Certified to meet IP67 ingress protection rating.
- Certified to ECE Reg 10.
- Stainless steel mounting hardware.
- 2000 lumens output.
Standard Order Quantity: 1
| Mounting Type | Stud |
| Width | 1.69 Inch |
| Length | 5.87 Inch |
| Container Type | Box |
| Bulb Technology | LED |
| Shape | Rectangular |
| Bulb/Diode Count | 8 |
| Light Color | White |
| termination | Stripped Wire |
| Exterior use | Yes |
| Beam Pattern | Flood |
| Coil cord | No |
| Voltage | 12V / 24V |
| Multi-Volt | Yes |
| Integral Switch | No |
| Regulatory Compliance | ECE |
| Height | 4.57 Inch |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Submersible | No |
| Lens Color | Clear |
| Brightness | 2000 Lumens |
| Grote Interchange | 63741 |
