920B-MV

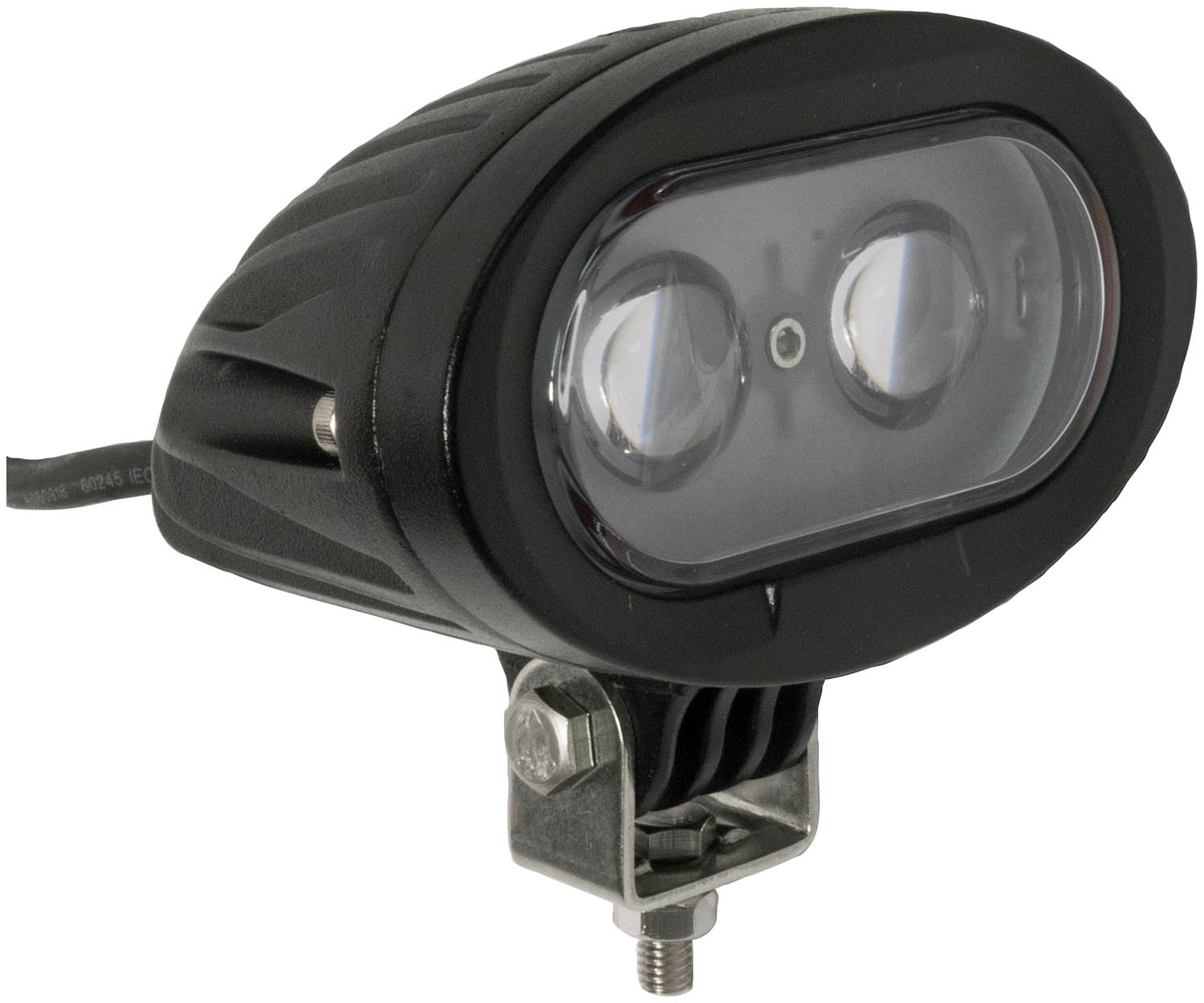

Blue Pedestrian Warning Light, blue; oval; box
920B-MV
Blue Pedestrian Warning Light, blue; oval; box

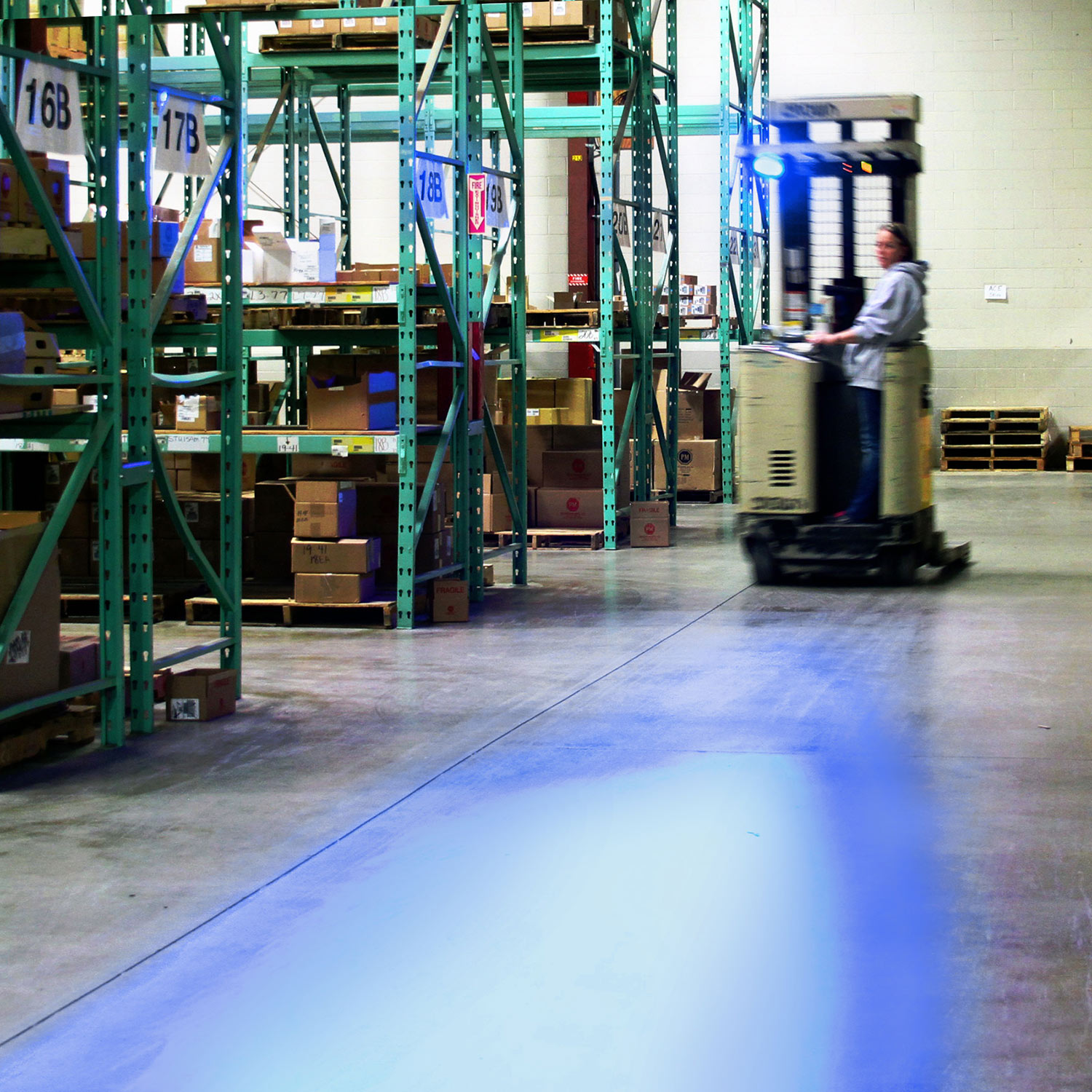

- Blue Pedestrian Warning Light
- Two 5-watt blue diodes for a bright spot pattern.
- Impact-resistant polycarbonate lens.
- Rugged, die-cast aluminum body with heat dissipating fins.
- Multi-volt design has 12-48V DC operating range.
- Operating current: 0.6A @ 12.8VDC, 0.3A @ 28VDC.
- PVC jacketed, partially stripped, 17.75 " (450mm) lead wires.
- Operating temperature range: -40 degrees F – +149 (-40 degrees C – +65 ).
- Certified to meet IP67 ingress protection rating.
- Stainless steel mounting hardware.
Standard Order Quantity: 1
| Mounting Type | Stud |

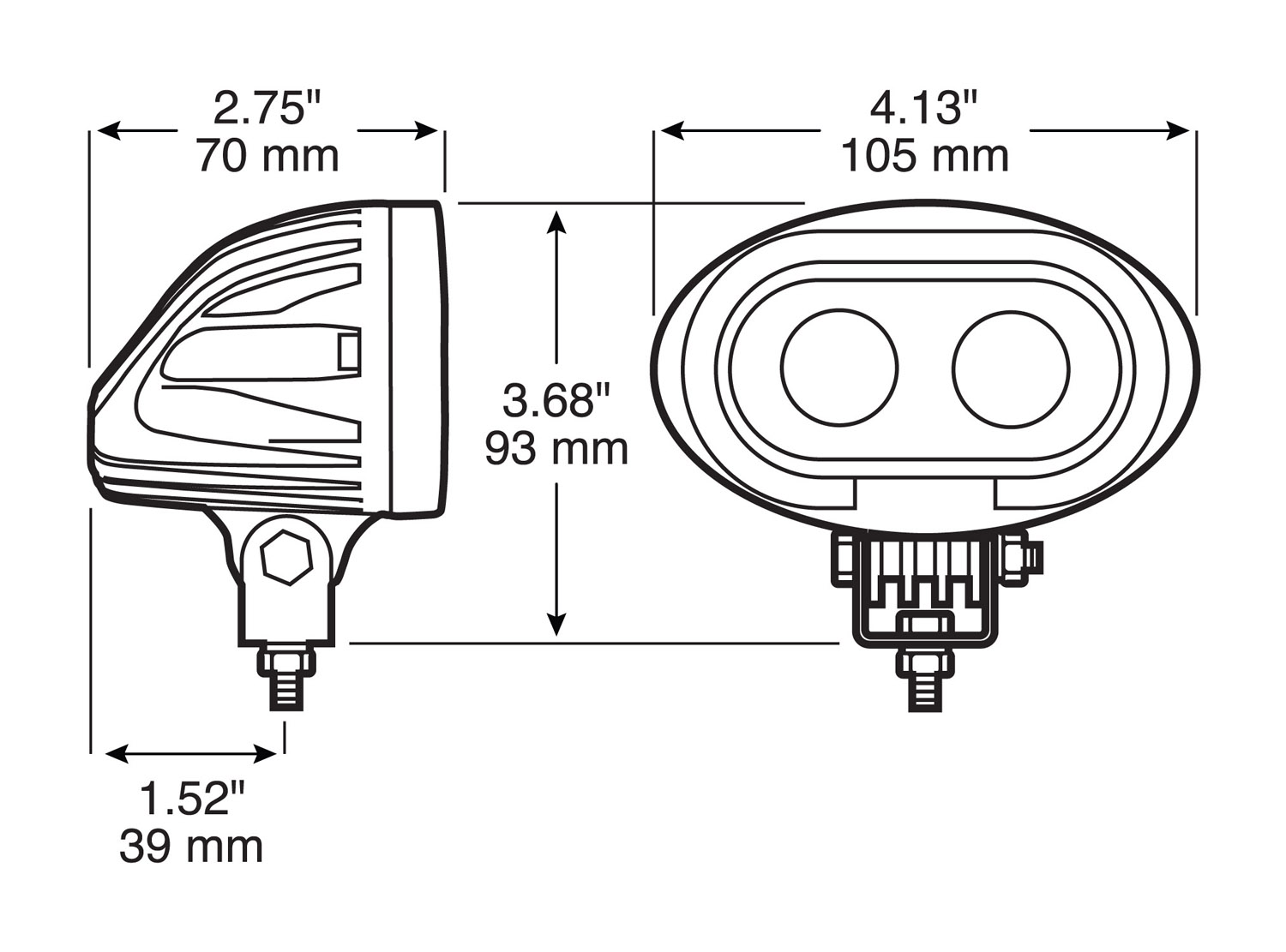

| Width | 2.75 Inch |
| Length | 4.13 Inch |
| Container Type | Box |
| Bulb Technology | LED |
| Shape | Oval |
| Bulb/Diode Count | 2 |
| Light Color | Blue |
| termination | Stripped Wire |
| Exterior use | Yes |
| Beam Pattern | Spot |
| Lens Color | Clear |
| Coil cord | No |
| Voltage | 12V / 24V |
| Multi-Volt | Yes |
| Integral Switch | No |
| Height | 3.68 Inch |
| Maximum Voltage | 48 Volts |
| Minimum Voltage | 12 Volts |
| Submersible | No |
