717A

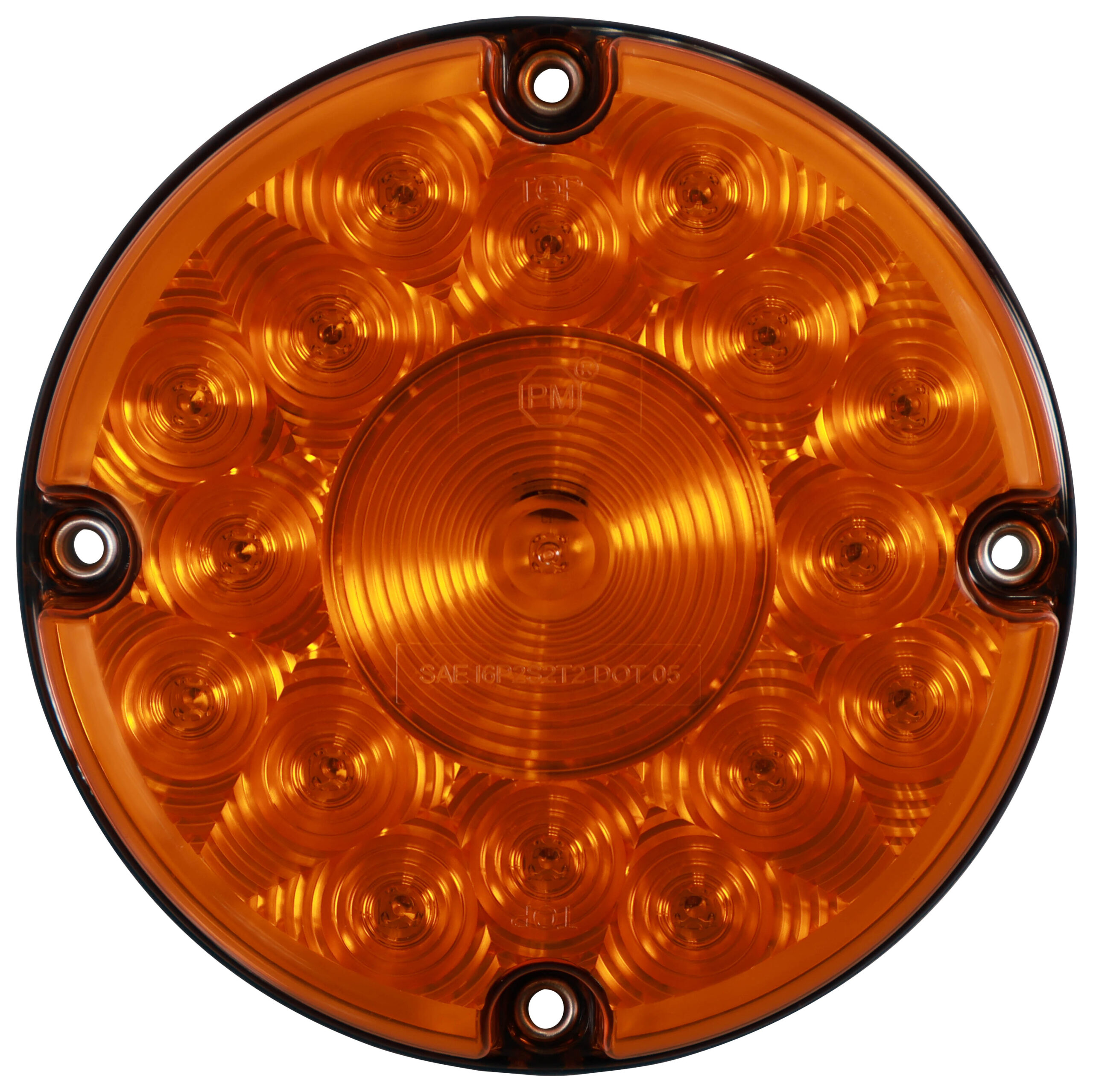

7 inch Round Transit Front & Rear Turn Signal; surface mount; poly bag
717A
7 inch Round Transit Front & Rear Turn Signal; surface mount; poly bag
- Hardwired leads are terminated with two .180 male bullets and one ring terminal for ground.
- Includes standard mounting gasket for additional protection between lamp and mounting surface.
- Meets DOT requirements for both front and rear turn signal use.
- Multi-volt design compatible with 12 & 24 volt systems.
- See matching backup light on Peterson LED Catalog page 49.
- See matching stop / turn / tail light on Peterson LED Catalog page 10.
- Surface mounts with 4-hole pattern standard for bus and transit applications.
- Transit Front & Rear Turn Signal
Standard Order Quantity: 1
| Bulb Technology | LED |
| Length | 7 Inch |
| Lens Color | Amber |
| Shape | Round |
| Diameter | 7 Inch |
| Height | 7 Inch |
| Integral Reflex | No |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Width | 1.5 Inch |
| Multi-Volt | Yes |
| Regulatory Compliance | DOT |
| Light Color | Amber |
| Voltage | 12V / 24V |
| Bulb/Diode Count | 17 |
| Mounting Type | Surface |
| termination | .180 Bullet |
| Container Type | Poly Bag |
| Submersible | Yes |
| Bulbs Included | Yes |
| DOT Approved | Yes |
| pa_installation-instructions-included | Yes |
| Mounting Hardware Included | No |
| Street Legal | Yes |
| Truck-Lite Interchange | 91241Y |
| Truck-Lite Interchange | 91243Y |
| Grote Interchange | 55983 |
| Grote Interchange | 55993 |
