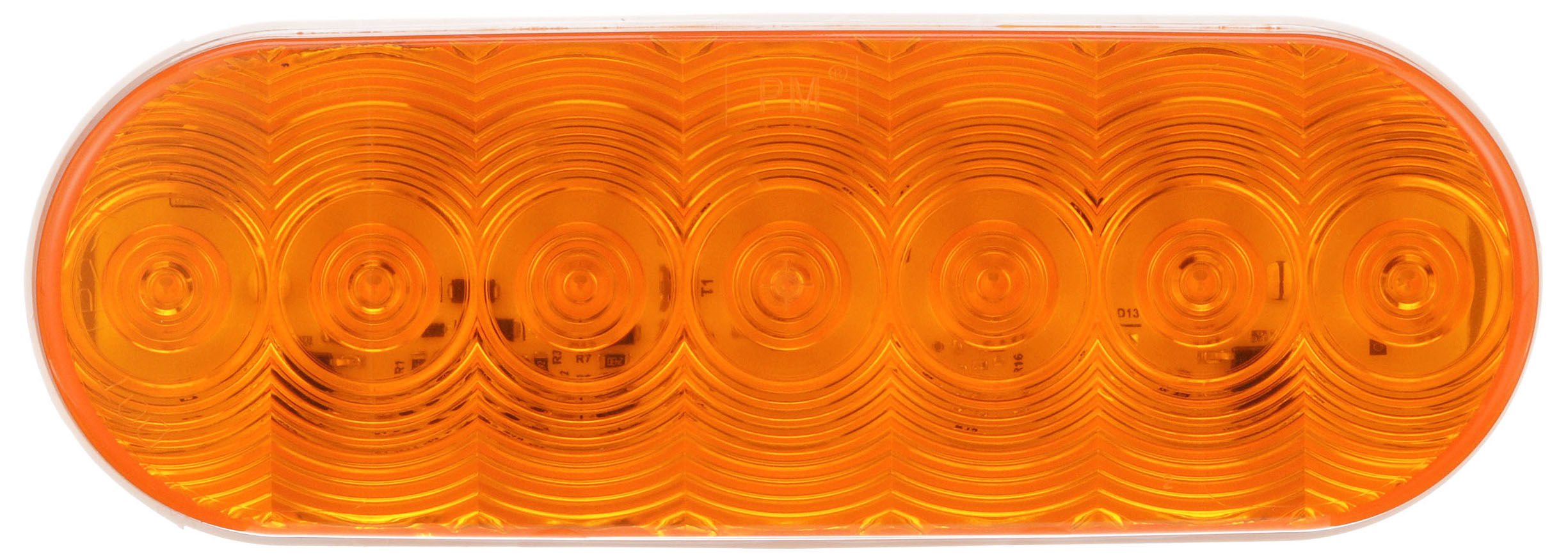

820A-7
Lumen X ® AMP Oval Front & Rear Turn Signal; grommet; poly bag
820A-7
Lumen X ® AMP Oval Front & Rear Turn Signal; grommet; poly bag
- 820 kit includes light, grommet and 817-49 plug.
- 823 kit includes light and 817-49 plug.
- Integral 30 degree angle silicone-sealed AMP receptacle.
- Low intensity function meets DOT marker requirements.
- Meets DOT requirements for both FRONT and REAR turn signal in any horizontal / vertical / 360 degree position.
- Oval Front & Rear Turn Signal
- See matching backup light on Peterson LED Catalog page 48.
- See matching stop / turn / tail light on Peterson LED Catalog page 5.
Standard Order Quantity: 1
| M820A-7 | Lumen X ® AMP Oval Front & Rear Turn Signal; grommet; bulk pack |
| 820KA-7 | Lumen X ® AMP Oval Front & Rear Turn Signal; grommet kit; poly bag |
| M823A-7 | Lumen X ® AMP Oval Front & Rear Turn Signal; flange; bulk pack |
| 823KA-7 | Lumen X ® AMP Oval Front & Rear Turn Signal; flange kit; poly bag |
| 823A-7 | Lumen X ® AMP Oval Front & Rear Turn Signal; flange; poly bag |
| Bulb Technology | LED |
| Length | 6.5 Inch |
| Lens Color | Amber |
| Shape | Oval |
| Height | 2.31 Inch |
| Integral Reflex | No |
| Maximum Voltage | 16 Volts |
| Minimum Voltage | 9 Volts |
| Width | 1.45 Inch |
| Multi-Volt | No |
| Regulatory Compliance | DOT |
| Light Color | Amber |
| Voltage | 12 Volts |
| Bulb/Diode Count | 7 |
| Mounting Type | Grommet |
| termination | AMP |
| Container Type | Poly Bag |
| Submersible | Yes |
| Grote Interchange | 54143 |
