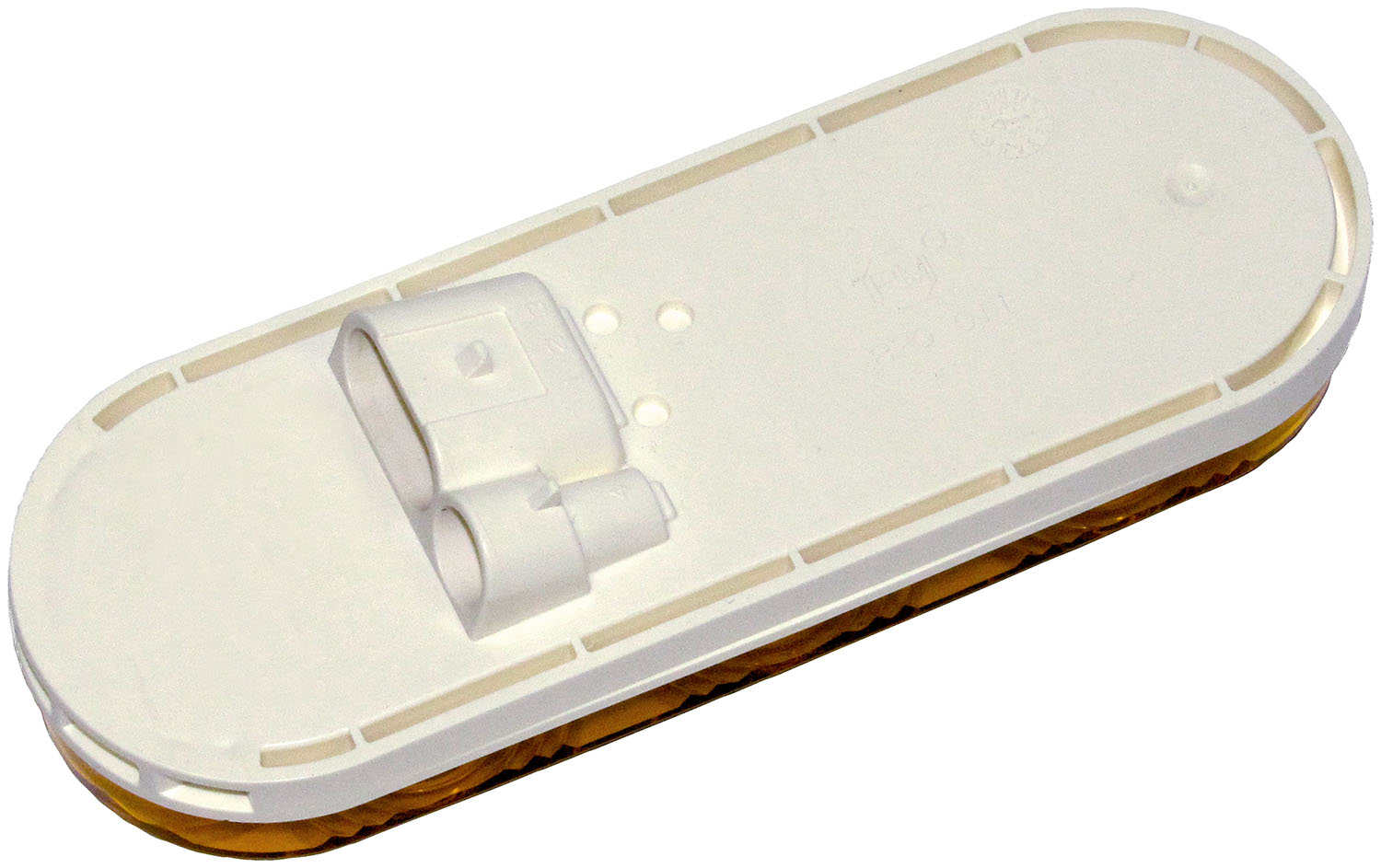

860SA-2
10-Diode Oval Strobe & Rear Turn Signal w/ Sync; amber, roadside high; poly bag
860SA-2
10-Diode Oval Strobe & Rear Turn Signal w/ Sync; amber, roadside high; poly bag
- Two- or four-lamp system functions as both alternating strobes and DOT-compliant rear turn signals.
- Activating turn signal automatically overrides strobe function.
- Sync wire technology allows 2 lamps to communicate with each other without an external strobe controller.
- Requires no external strobe controller. (Requires standard vehicle flasher for turn function.)
- Multi-volt design compatible with 12V & 24V systems.
- 30 degree angle, 3-wire, silicone-sealed twin AMP receptacles integrated into housing.
- Meets SAE J595 Class 2 specifications rotated in any orientation.
- Requires both 3-wire AMP plug and single wire sync plug for installation.
Standard Order Quantity: 1
| Bulb Technology | LED |
| Length | 6.5 Inch |
| Minimum Voltage | 9 Volts |
| Voltage | 12V / 24V |
| Maximum Voltage | 32 Volts |
| Width | 1.45 Inch |
| Flash Type | Quad |
| Container Type | Poly Bag |
| Height | 2.31 Inch |
| Average Current Draw | 0.26 Ampere |
| Integral Reflex | No |
| Mounting Type | Grommet |
| Bulb/Diode Count | 10 |
| Lens Color | Amber |
| Programmable | No |
| Shape | Oval |
| termination | AMP |
| Multi-Volt | Yes |
| Light Color | Amber |
| SAE Class | J595 Class 2 |
| Synchronizable | Yes |
