762A
360 degree Strobing Beacon; amber; box
762A
360 degree Strobing Beacon; amber; box
- 360 degree Strobing Beacon
- 65 “double-quad” flashes per minute.
- 11V-110V operating range.
- Meets SAE J845 Class 3A specifications.
- Polycarbonate lens and base.
- 12" lead wires.
- Reverse voltage protected.
- Standard 3-hole mounting on 4.57 " bolt circle.
Standard Order Quantity: 1
| Bulb Technology | LED |
| Flash Rate | 65 Feet Per Minute |
| Minimum Voltage | 11 Volts |

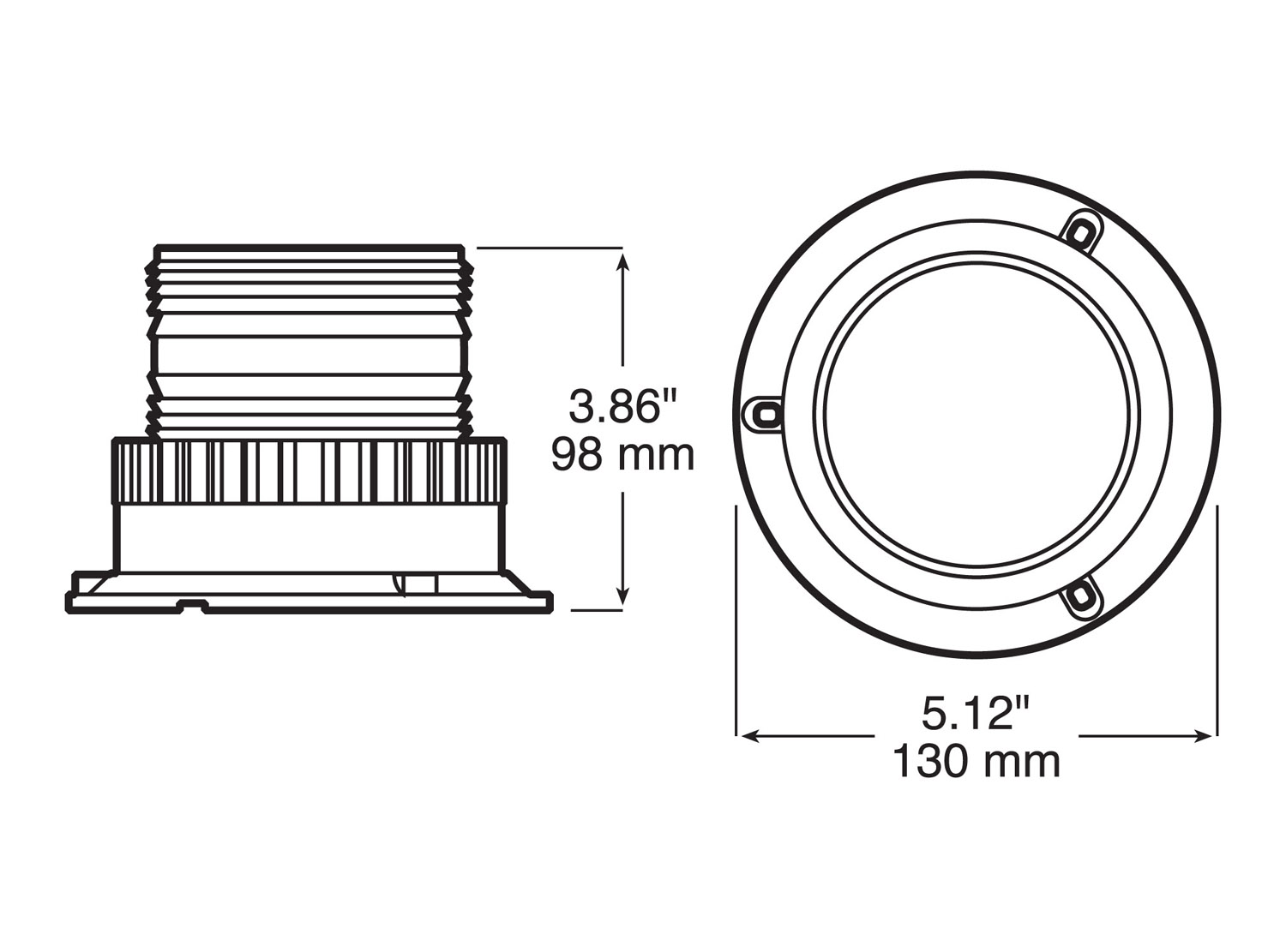

| Diameter | 5.12 Inch |
| Voltage | 12V / 24V |
| Maximum Voltage | 110 Volts |
| Integral Switch | No |
| Flash Type | Double Quad |
| Container Type | Box |
| Exterior use | Yes |
| Coil cord | No |
| Height | 3.86 Inch |
| Mounting Type | Surface |
| Bulb/Diode Count | 3 |
| Lens Color | Amber |
| Programmable | No |
| Shape | Round |
| termination | Stripped Wire |
| Multi-Volt | Yes |
| Light Color | Amber |
| SAE Class | J845, Class 3A |
| Removable Lens | No |
| Mounting Circle | 4.57 Inch |
| Submersible | No |
| Grote Interchange | 78093 |
