M339R
Round Single-Face Pedestal Stop / Turn / Tail Light; stripped leads; bulk pack
M339R
Round Single-Face Pedestal Stop / Turn / Tail Light; stripped leads; bulk pack
- 3 hardwired leads.
- 3 hardwired stripped leads.
- 339A has amber (front-facing) lens and stripped leads.
- 339A-BT2 has amber (front-facing) lens and .180 bullet connectors
- 339R has red (rear-facing) lens and stripped leads.
- 339R-DEU has hardwired Deutsch-style connector
- 339R-DEU has red (rear-facing) lens and Deutsch-style connector
- Chrome die-cast housing.
- Matching amber and amber / red turn signals available on Peterson LED Catalog page 19.
- Red (rear-facing) versions shown here are also listed with stop / turn / tail lights on Peterson LED Catalog page 10.
- Round Single-Face Pedestal Stop / Turn / Tail Light
- Single 4" round acrylic lens.
- Single 4" Round acrylic lens.
- Single stud pedestal mount.
- Single-Face Round Park & Turn Light
Standard Order Quantity: 24
| Bulb Technology | LED |
| Bulb/Diode Count | 24 |
| Container Type | Bulk Pack |

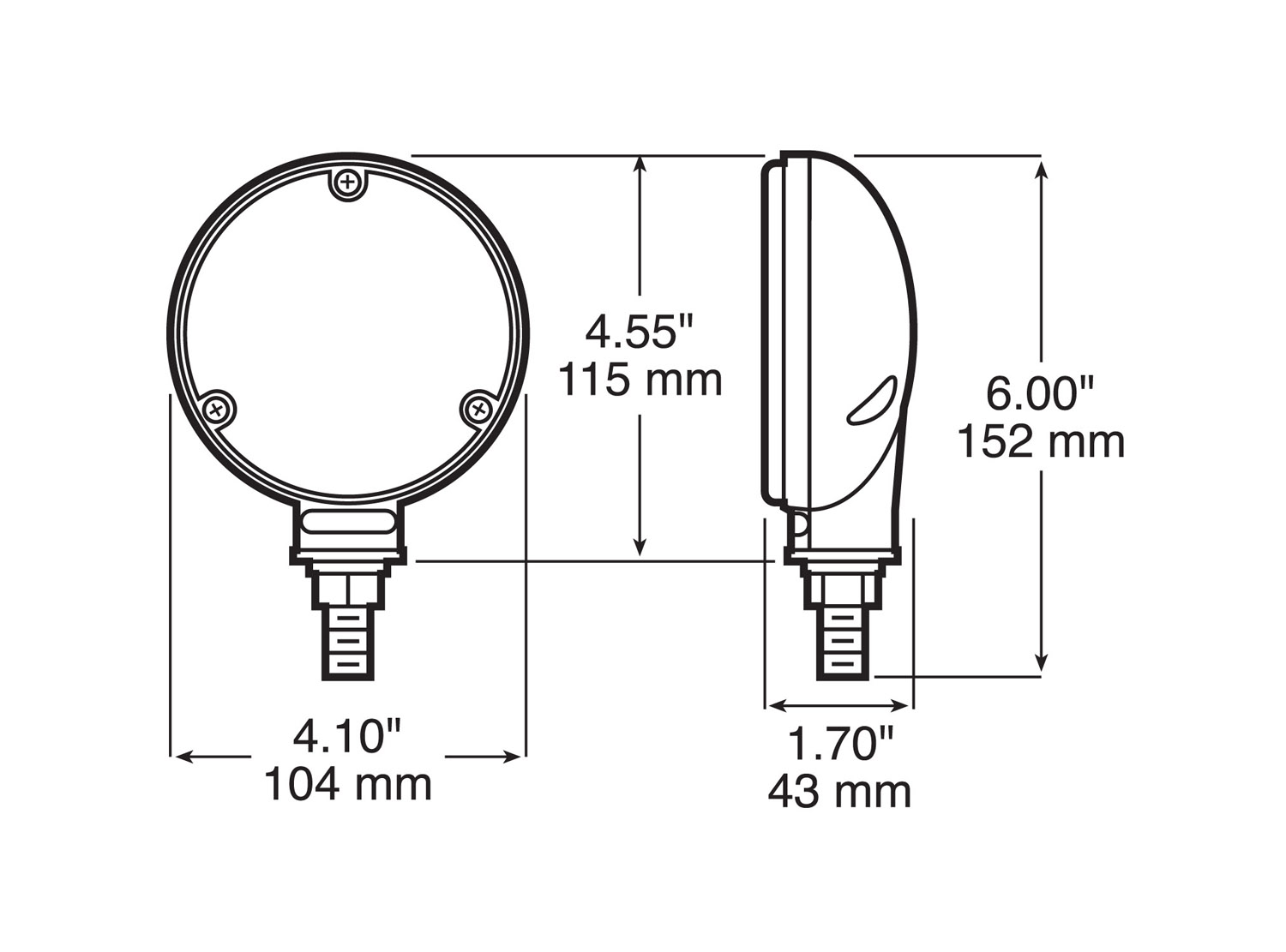

| Diameter | 4.1 Inch |
| Height | 4.55 Inch |
| Integral Reflex | No |
| Length | 4.1 Inch |
| Lens Color | Red |
| Light Color | Red |
| Maximum Voltage | 16 Volts |
| Minimum Voltage | 9 Volts |
| Mounting Type | Pedestal |
| Multi-Volt | No |
| Regulatory Compliance | DOT |
| Shape | Round |
| Submersible | Yes |
| termination | Stripped Wire |
| Voltage | 12 Volts |
| Width | 1.7 Inch |
| Bargman Interchange | 54209-032 |
