717R
Surface-Mount 7 inch Round Stop / Turn / Tail Light; surface mount; poly bag
717R
Surface-Mount 7 inch Round Stop / Turn / Tail Light; surface mount; poly bag

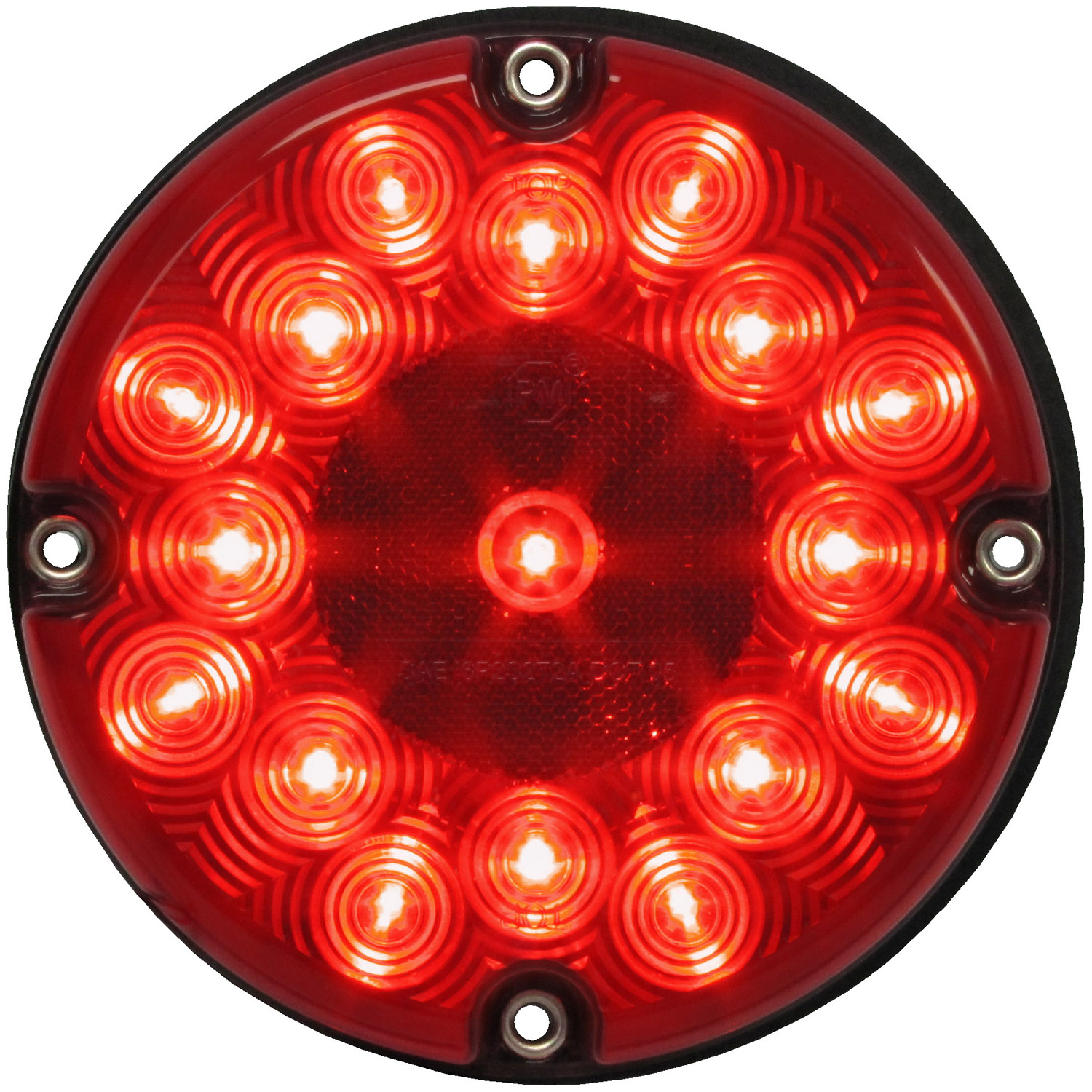

- 7" Round Stop / Turn / Tail Light
- Hardwired leads are terminated with two .180 male bullets and one ring terminal for ground.
- Includes standard mounting gasket for additional protection between lamp and mounting surface.
- Multi-volt design compatible with 12 & 24 volt systems.
- Reflex optics integrated into lens, eliminating need for separate reflector.
- See matching backup light on Peterson LED Catalog page 49.
- See matching turn signal light on Peterson LED Catalog page 17.
- Surface mounts with standard bus and transit 4-hole pattern.
Standard Order Quantity: 1
| Bulb Technology | LED |
| Bulb/Diode Count | 17 |
| Container Type | Poly Bag |

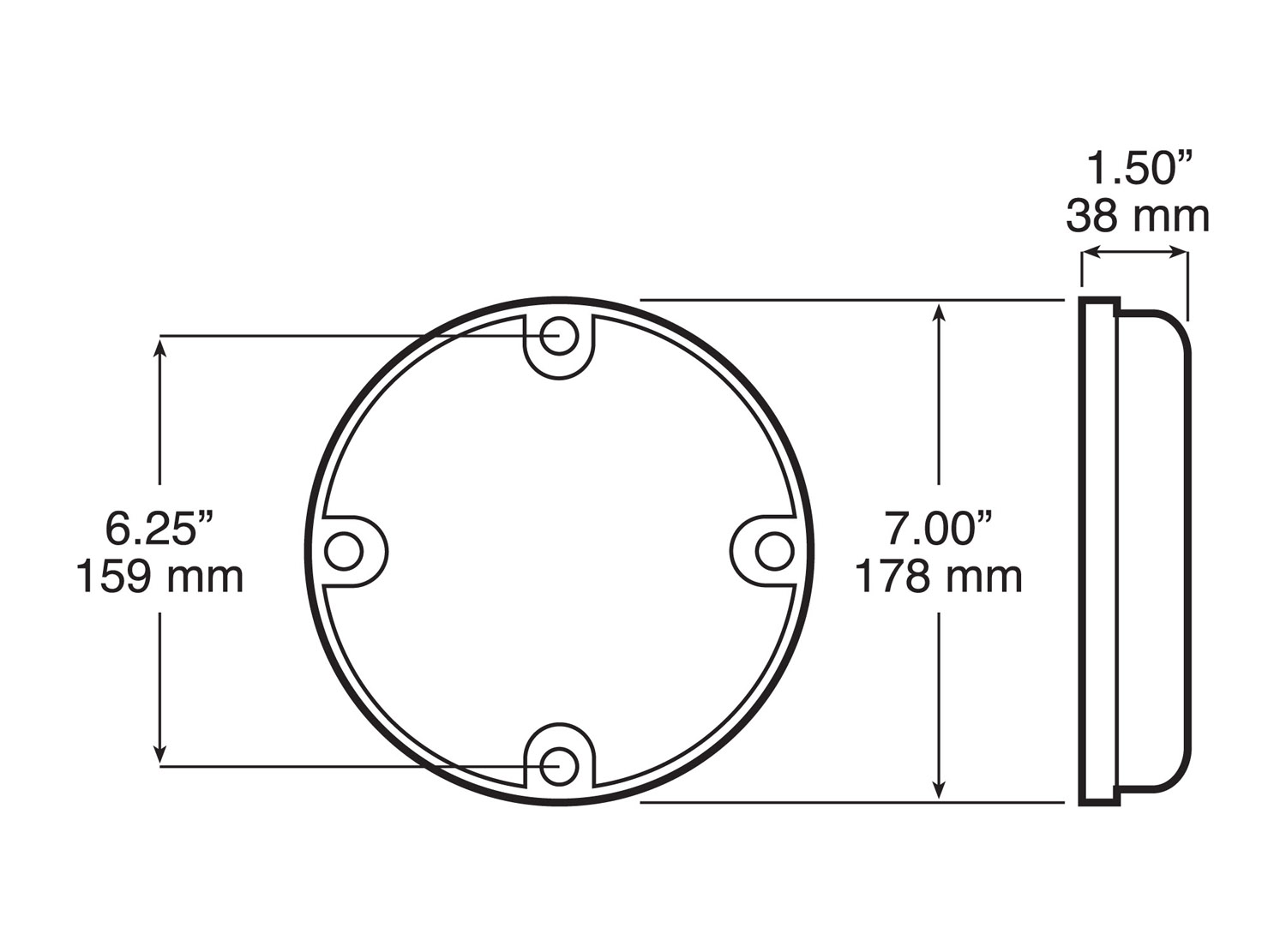

| Diameter | 7 Inch |
| Height | 7 Inch |
| Integral Reflex | No |
| Length | 7 Inch |
| Lens Color | Red |
| Light Color | Red |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Mounting Type | Surface |
| Multi-Volt | Yes |
| Regulatory Compliance | DOT |
| Shape | Round |
| Submersible | Yes |
| termination | .180 Bullet |
| Voltage | 12V / 24V |
| Width | 1.5 Inch |
| Grote Interchange | 55982 |
| Truck-Lite Interchange | 91244R |
| Grote Interchange | 55992 |
| Truck-Lite Interchange | 91242R |
| Grote Interchange | 53422 |
