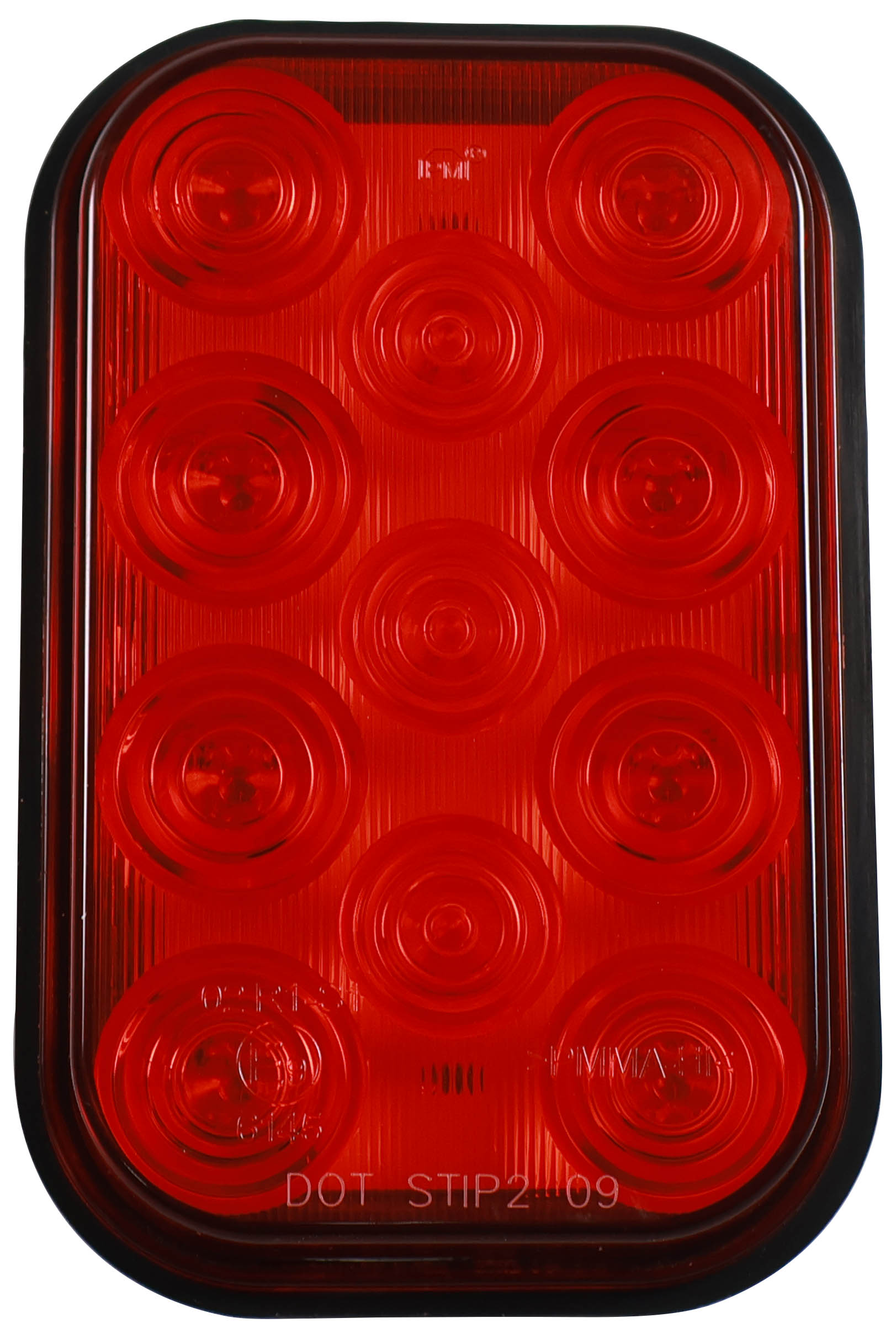

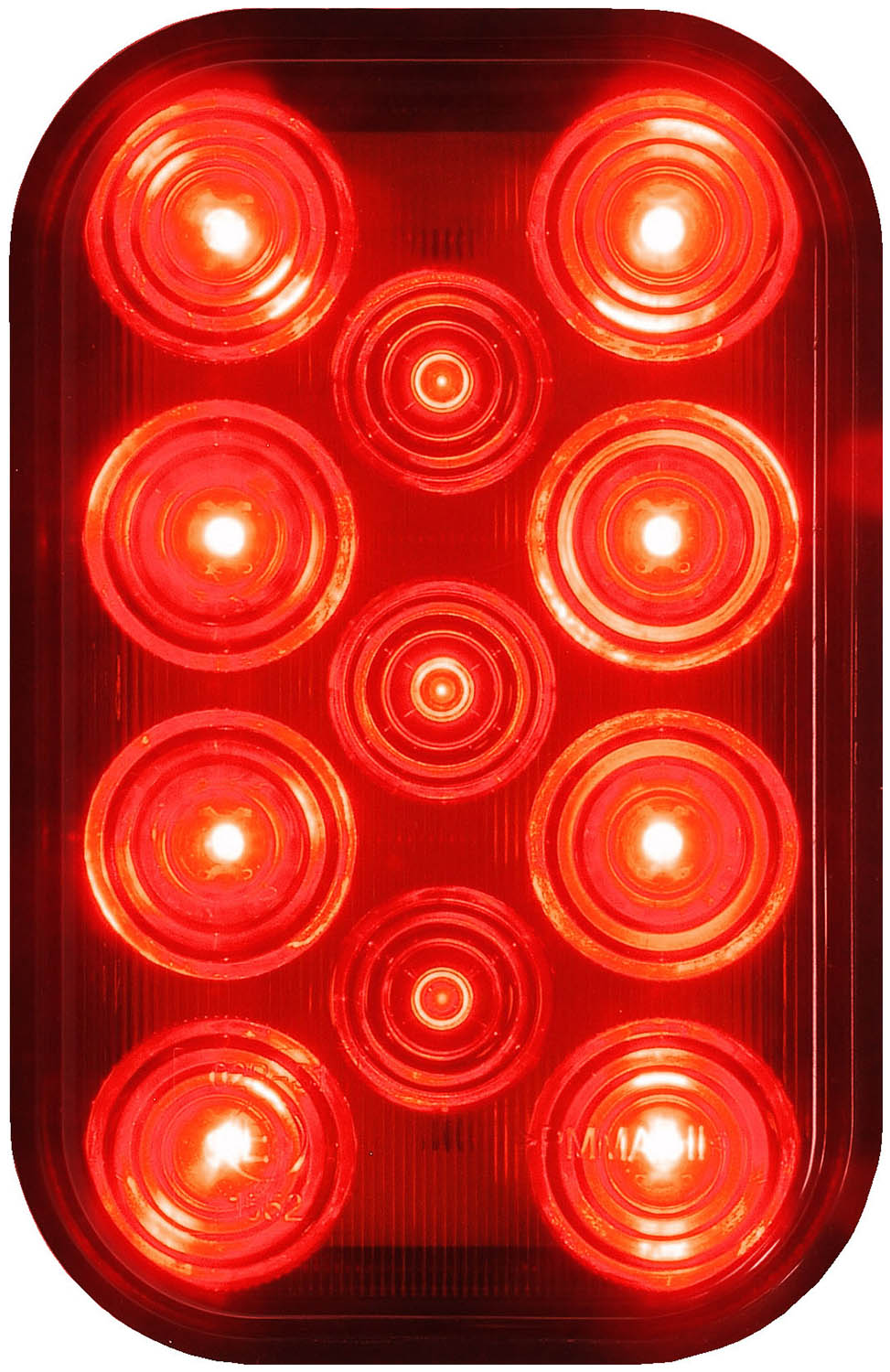

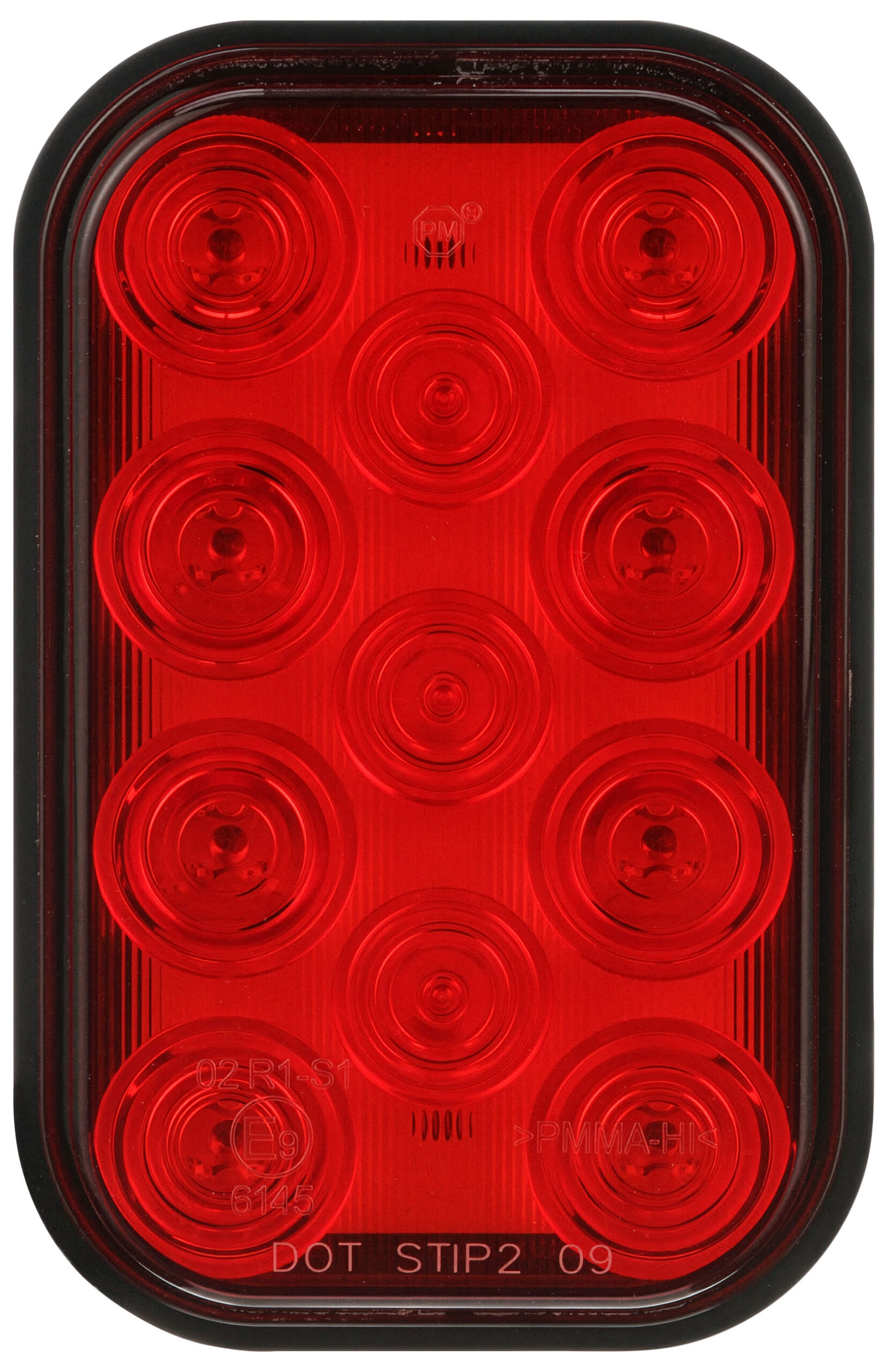

850R
LED Stop/Turn/Tail, Rectangular, ECE, & Dot 6.5′ Leads 5.30 inch x 3.44 inch Multi-volt, red, bulk pack
850R
LED Stop/Turn/Tail, Rectangular, ECE, & Dot 6.5′ Leads 5.30 inch x 3.44 inch Multi-volt, red, bulk pack
- 11 diodes.
- 850R has 6.5' leads, others have 300mm (11.8") leads.
- 850R-1P has hardwired PL3 plug.
- 9-32 volt operating range.
- Also fits surface-mount cluster pods. See Peterson Master Catalog page 189.
- Available with 12" or 2 meter (6ó-ft.) hardwired leads.
- Certified to meet both FMVSS 108 (USA) & ECE (European) requirements in horizontal or vertical position.
- ECE & DOT compliant.
- Grommet fits material up to 6 mm.
- Hardwired design eliminates the need for separate plug and reduces connection points.
- Hardwired design.
- Matching amber turn signal available on Peterson Master Catalog page 44.
- Matching white back-up light available on Peterson Master Catalog page 99.
- Multi-volt design is compatible with both 12 and 24 volt systems.
- Multivolt version available.
- Sealed lens and housing meets IP67 ingress protection level.
- Voltage Regulated.
Standard Order Quantity: 10
| 850R-1P | LED Stop/Turn/Tail, Rectangular, ECE, & Dot 11.8″ Leads w/ Plug, 5.30″X3.44″ Multi-volt, red, bulk pack |
| Bulb Technology | LED |
| Bulb/Diode Count | 11 |
| Container Type | Bulk Pack |
| Height | 3.52 Inch |
| Integral Reflex | No |
| Length | 5.3 Inch |
| Lens Color | Red |
| Light Color | Red |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Mounting Type | Grommet |
| Multi-Volt | Yes |
| Regulatory Compliance | DOT + ECE |
| Shape | Rectangular |
| Submersible | Yes |
| termination | Stripped Wire |
| Voltage | 12V / 24V |
| Width | 1.34 Inch |
