850R-1P

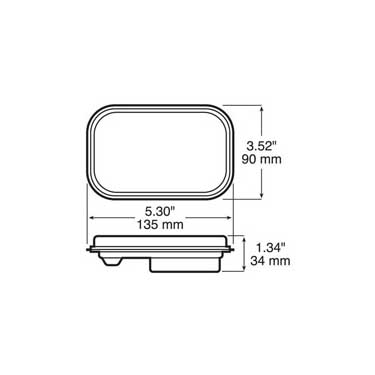

LED Stop/Turn/Tail, Rectangular, ECE, & Dot 11.8″ Leads w/ Plug, 5.30″X3.44″ Multi-volt, red, bulk pack
850R-1P
LED Stop/Turn/Tail, Rectangular, ECE, & Dot 11.8″ Leads w/ Plug, 5.30″X3.44″ Multi-volt, red, bulk pack
LED STOP/TURN/TAIL
- Grommet fits material up to 6 mm.
- ECE & DOT compliant.
- Multi-volt design is compatible with both 12 and 24 volt systems.
- Hardwired design eliminates the need for separate plug and reduces connection points.
- Also fits surface-mount cluster pods. See Peterson Master Catalog page 189.
- 850R has 6.5' leads, others have 300mm (11.8") leads.
- Multivolt version available.
- 850R-1P has hardwired PL3 plug.
- Available with 12" or 2 meter (6ó-ft.) hardwired leads.
- Voltage Regulated.
- Matching white back-up light available on Peterson Master Catalog page 99.
- Matching amber turn signal available on Peterson Master Catalog page 44.
- 11 diodes.
- Hardwired design.
- Certified to meet both FMVSS 108 (USA) & ECE (European) requirements in horizontal or vertical position.
- 9–32 volt operating range.
- Sealed lens and housing meets IP67 ingress protection level.
| Bulb Technology | LED |
| Bulb/Diode Count | 11 |
| California Prop65 Required | Yes |
| California Proposition 65 | Warning-cancer-and-or-reproductive-harm-www-p65warnings-ca-gov |
| Container Type | Bulk-pack |
| Height | 3-52-inch |
| Integral Reflex | No |
| Length | 5-3-inch |
| Lens Color | Red |
| Light Color | Red |
| Maximum Voltage | 32-volts |
| Minimum Voltage | 9-volts |
| Mounting Type | Surface |
| Multi-Volt | Yes |
| Regulatory Compliance | Dot-ece |
| Shape | Rectangular |
| Submersible | Yes |
| termination | PL3 |
| Voltage | 12v-24v |
| Width | 1-34-inch |
| Truck-Lite Interchange | 45258R |
| Truck-Lite Interchange | 4550 |
| Truck-Lite Interchange | 4558 |
| Grote Interchange | G4502 |
