M821R-7

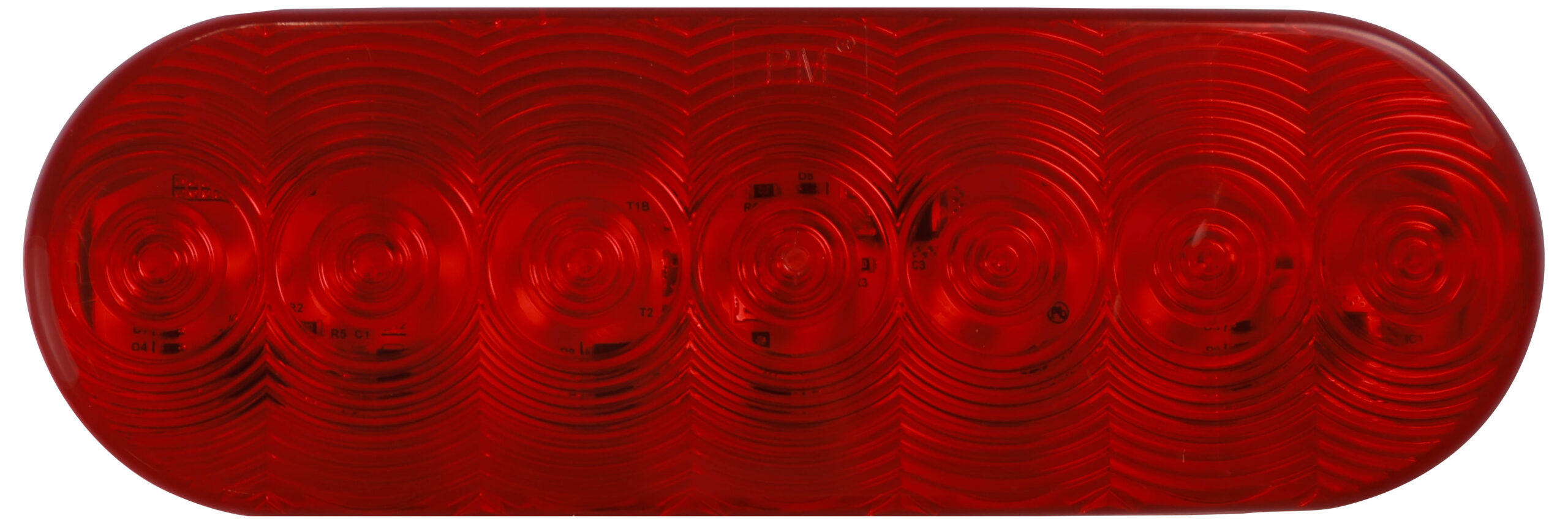

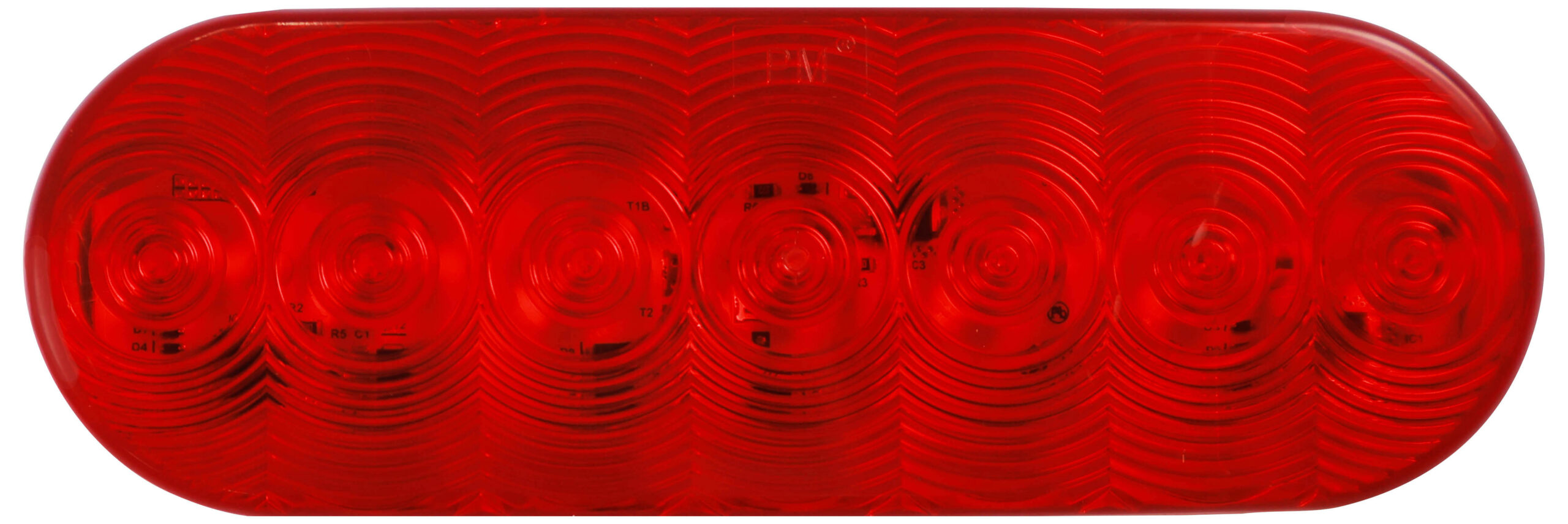

Lumen X ® PL3 Oval Stop / Turn / Tail Light; grommet; bulk pack
M821R-7
Lumen X ® PL3 Oval Stop / Turn / Tail Light; grommet; bulk pack
- 821 kit includes light, grommet and 421-491 plug.
- 822 kit includes light and 421-491 plug.
- Meets DOT requirements in any horizontal / vertical / 360 degree position.
- Oval Stop / Turn / Tail Light
- PL3 socket integrated into housing.
- See matching backup light on Peterson LED Catalog page 48.
- See matching turn signal light on Peterson LED Catalog page 15.
Standard Order Quantity: 50
| 821R-7 | Lumen X ® PL3 Oval Stop / Turn / Tail Light; grommet; poly bag |
| 822R-7 | Lumen X ® PL3 Oval Stop / Turn / Tail Light; flange; poly bag |
| 821KR-7 | Lumen X ® PL3 Oval Stop / Turn / Tail Light; grommet kit; poly bag |
| 822KR-7 | Lumen X ® PL3 Oval Stop / Turn / Tail Light; flange kit; poly bag |
| V822KR-7 | Lumen X ® PL3 Oval Stop / Turn / Tail Light; flange kit; Viz Pack |
| V821KR-7 | Lumen X ® PL3 Oval Stop / Turn / Tail Light; grommet kit; Viz Pack |
| M822R-7 | Lumen X ® PL3 Oval Stop / Turn / Tail Light; flange; bulk pack |
| Bulb Technology | LED |
| Bulb/Diode Count | 7 |
| Container Type | Bulk Pack |
| Height | 2.31 Inch |
| Integral Reflex | No |
| Length | 6.5 Inch |
| Lens Color | Red |
| Light Color | Red |
| Maximum Voltage | 16 Volts |
| Minimum Voltage | 9 Volts |
| Mounting Type | Grommet |
| Multi-Volt | No |
| Regulatory Compliance | DOT |
| Shape | Oval |
| Submersible | Yes |
| termination | PL3 |
| Voltage | 12 Volts |
| Width | 1.45 Inch |
| Bargman Interchange | 273561 |
