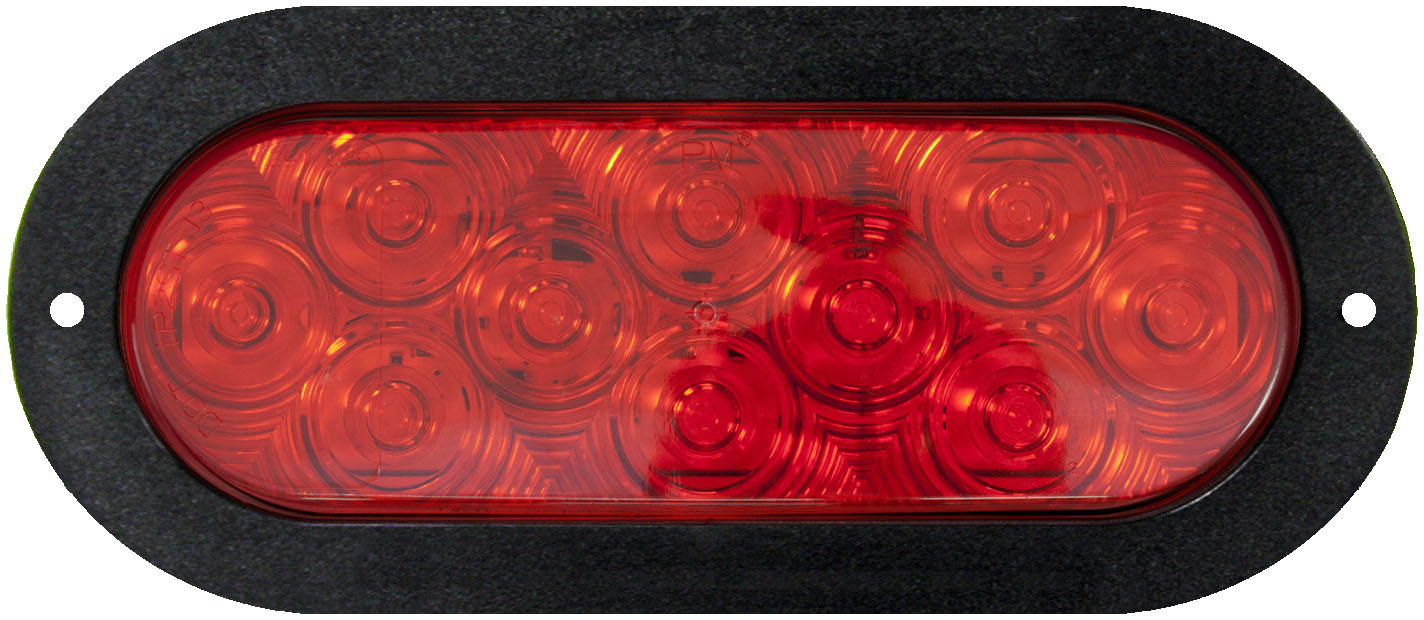

M823RTL-10
LED Stop/Turn/Tail, Oval, AMP, Narrow Flange-Mount 7.88 inch x 3.31 inch Multi-volt, red, bulk pack
M823RTL-10
LED Stop/Turn/Tail, Oval, AMP, Narrow Flange-Mount 7.88 inch x 3.31 inch Multi-volt, red, bulk pack
- 10 diodes.
- 820 kit includes light, grommet and 817-49 plug.
- 823 kit includes light and 817-49 plug.
- 823-10 has flange welded to light, forming a single unit.
- 9-32 volt operating range is compatible with 12V and 24V vehicles.
- Advanced optics fully illuminate lens.
- AMP-compatible connector integrated into housing.
- Assembled in USA.
- Defender harness & lighting system approved.
- Lumenx ® lens and circuitry.
- Meets FMVSS 108 requirements in horizontal, vertical or any 360 degree position.
- Multivolt version available.
- Regulated design provides voltage protection and consistent light output over a wide voltage range.
- Voltage Regulated.
- White diodes behind red lens.
Standard Order Quantity: 50
| 823KR-10-MP | Lumen X ® AMP Oval Stop / Turn / Tail Light; flange, male plug kit; poly bag |
| 820KR-10-MP | Lumen X ® AMP Oval Stop / Turn / Tail Light; grommet, male plug kit; poly bag |
| M820CR-10 | Lumen X ® AMP Oval Stop / Turn / Tail Light; grommet; bulk pack |
| M823CR-10 | Lumen X ® AMP Oval Stop / Turn / Tail Light; flange; bulk pack |
| 823KCR-10 | Lumen X ® AMP Oval Stop / Turn / Tail Light; flange kit; poly bag |
| 820KCR-10 | Lumen X ® AMP Oval Stop / Turn / Tail Light; grommet kit; poly bag |
| 823KR-10 | Lumen X ® AMP Oval Stop / Turn / Tail Light; flange kit; poly bag |
| 820KR-10 | Lumen X ® AMP Oval Stop / Turn / Tail Light; grommet kit; poly bag |
| 823R-10 | Lumen X ® AMP Oval Stop / Turn / Tail Light; flange; poly bag |
| 820R-10 | Lumen X ® AMP Oval Stop / Turn / Tail Light; grommet; poly bag |
| M823R-10 | Lumen X ® AMP Oval Stop / Turn / Tail Light; flange; bulk pack |
| M820R-10 | Lumen X ® AMP Oval Stop / Turn / Tail Light; grommet; bulk pack |
| Bulb Technology | LED |
| Bulb/Diode Count | 10 |
| Container Type | Bulk Pack |
| Height | 3.63 Inch |
| Integral Reflex | No |
| Length | 7.88 Inch |
| Lens Color | Red |
| Light Color | Red |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Mounting Type | Flange |
| Multi-Volt | Yes |
| Regulatory Compliance | DOT |
| Shape | Oval |
| Submersible | Yes |
| termination | AMP |
| Voltage | 12V / 24V |
| Width | 1.45 Inch |
