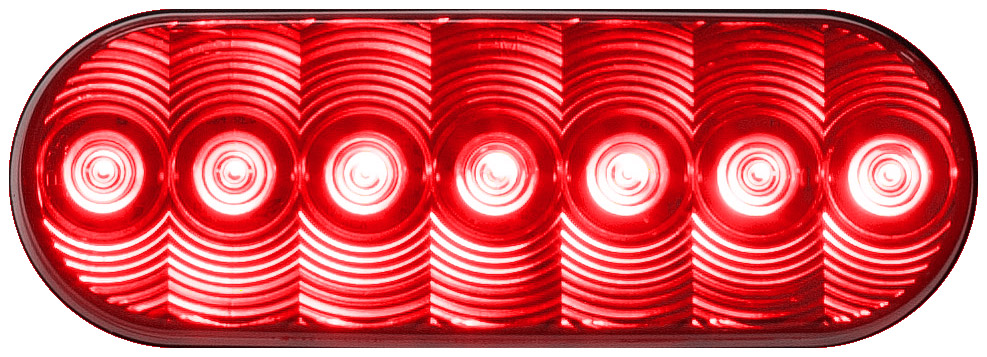

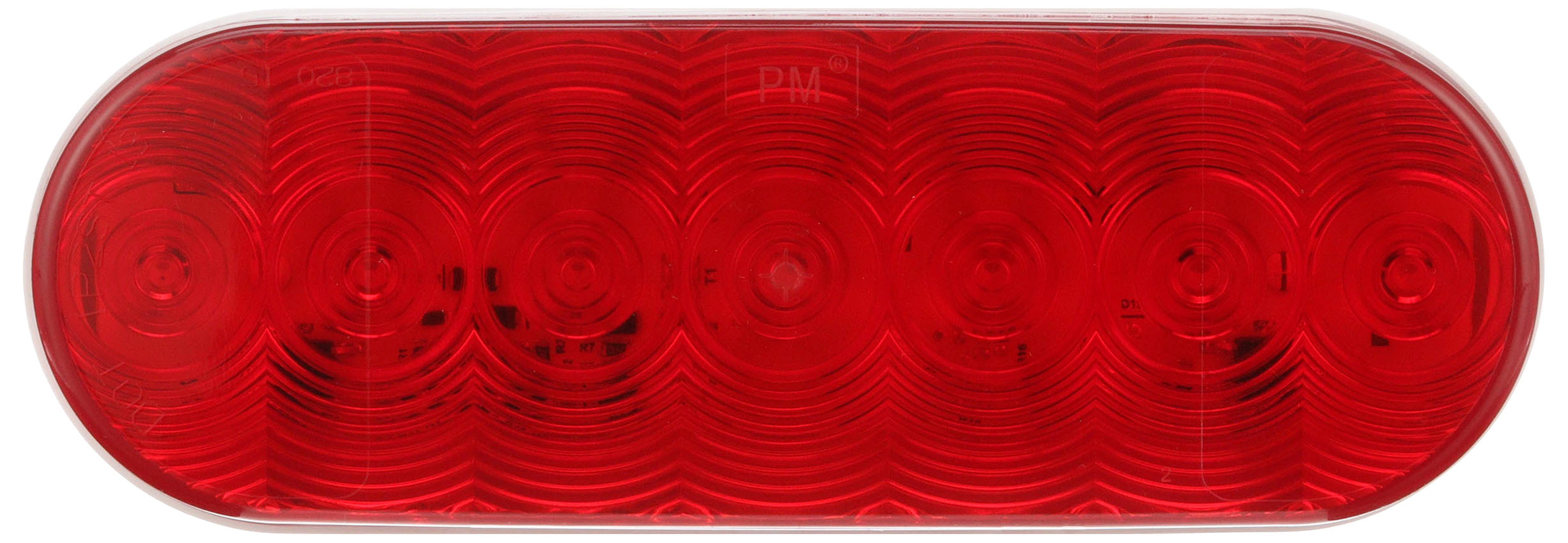

820R-7
Lumen X ® AMP Oval Stop / Turn / Tail Light, grommet, poly bag
820R-7
Lumen X ® AMP Oval Stop / Turn / Tail Light, grommet, poly bag
- 820 kit includes light, grommet and 817-49 plug.
- 823 kit includes light and 817-49 plug.

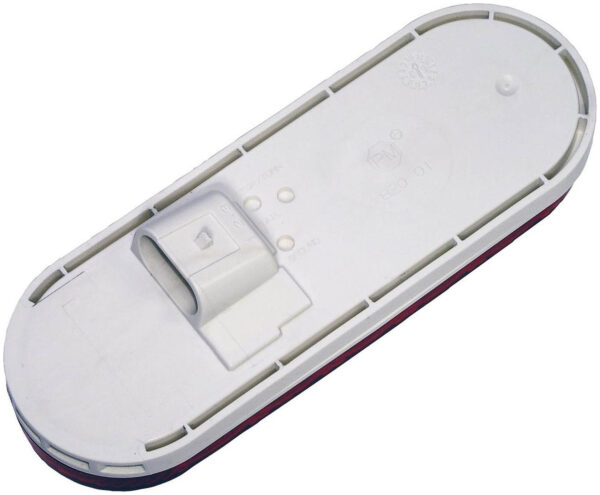

- Integral 30 degree angle silicone-sealed AMP receptacle.
- Meets DOT requirements in any horizontal / vertical / 360 degree position.
- Oval Stop / Turn / Tail Light
- See matching backup light on Peterson LED Catalog page 48.
- See matching turn signal light on Peterson LED Catalog page 15.
Standard Order Quantity: 6
| 823KR-7 | Lumen X ® AMP Oval Stop / Turn / Tail Light, grommet kit, poly bag |
| 823RTL-7 | Lumen X ® Narrow Flange AMP Oval Stop / Turn / Tail Light, narrow, 2-screw flange, poly bag |
| 823R-7 | Lumen X ® AMP Oval Stop / Turn / Tail Light, flange, poly bag |
| 820KR-7 | Lumen X ® AMP Oval Stop / Turn / Tail Light, flange kit, poly bag |
| M823RTL-7 | Lumen X ® Narrow Flange AMP Oval Stop / Turn / Tail Light, narrow, 2-screw flange, bulk pack |
| M823R-7 | Lumen X ® AMP Oval Stop / Turn / Tail Light, flange, bulk pack |
| M820R-7 | Lumen X ® AMP Oval Stop / Turn / Tail Light, grommet, bulk pack |
| Bulb Technology | LED |
| Bulb/Diode Count | 7 |
| Container Type | Poly Bag |

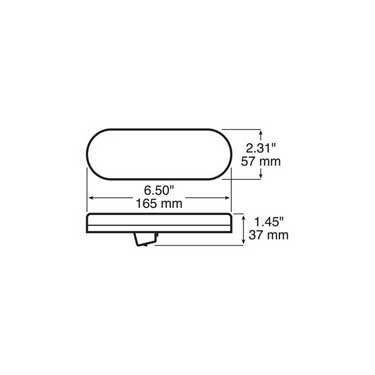

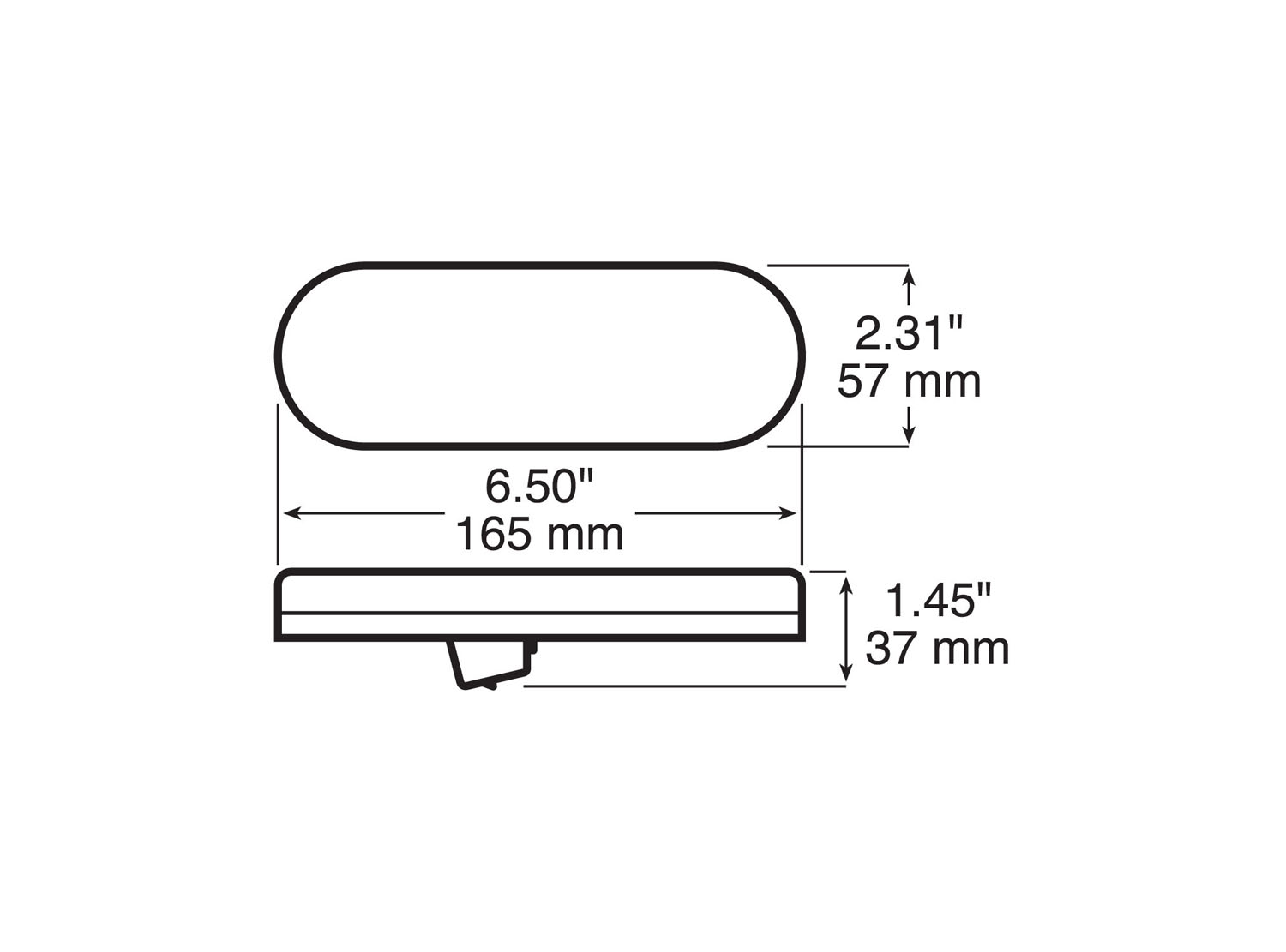

| Height | 2.31 Inch |
| Integral Reflex | No |
| Length | 6.5 Inch |
| Lens Color | Red |
| Light Color | Red |
| Maximum Voltage | 16 Volts |
| Minimum Voltage | 9 Volts |
| Mounting Type | Grommet |
| Multi-Volt | No |
| Regulatory Compliance | DOT |
| Shape | Oval |
| Submersible | Yes |
| termination | AMP |
| Voltage | 12 Volts |
| Width | 1.45 Inch |
| Grote Interchange | 54142 |
| Grote Interchange | 54722 |
| Truck-Lite Interchange | 60250R |
| Truck-Lite Interchange | 60260R |
| Truck-Lite Interchange | 60885R |
| Truck-Lite Interchange | 66250R |
