1223A-R-MV
LED ECE Surface-Mount Combination Stop / Rear Turn / Tail Light; amber + red, Multi-volt; bulk pack
1223A-R-MV
LED ECE Surface-Mount Combination Stop / Rear Turn / Tail Light; amber + red, Multi-volt; bulk pack
- 20 diodes.
- Certified to meet ECE requirements for all functions in horizontal or vertical position.

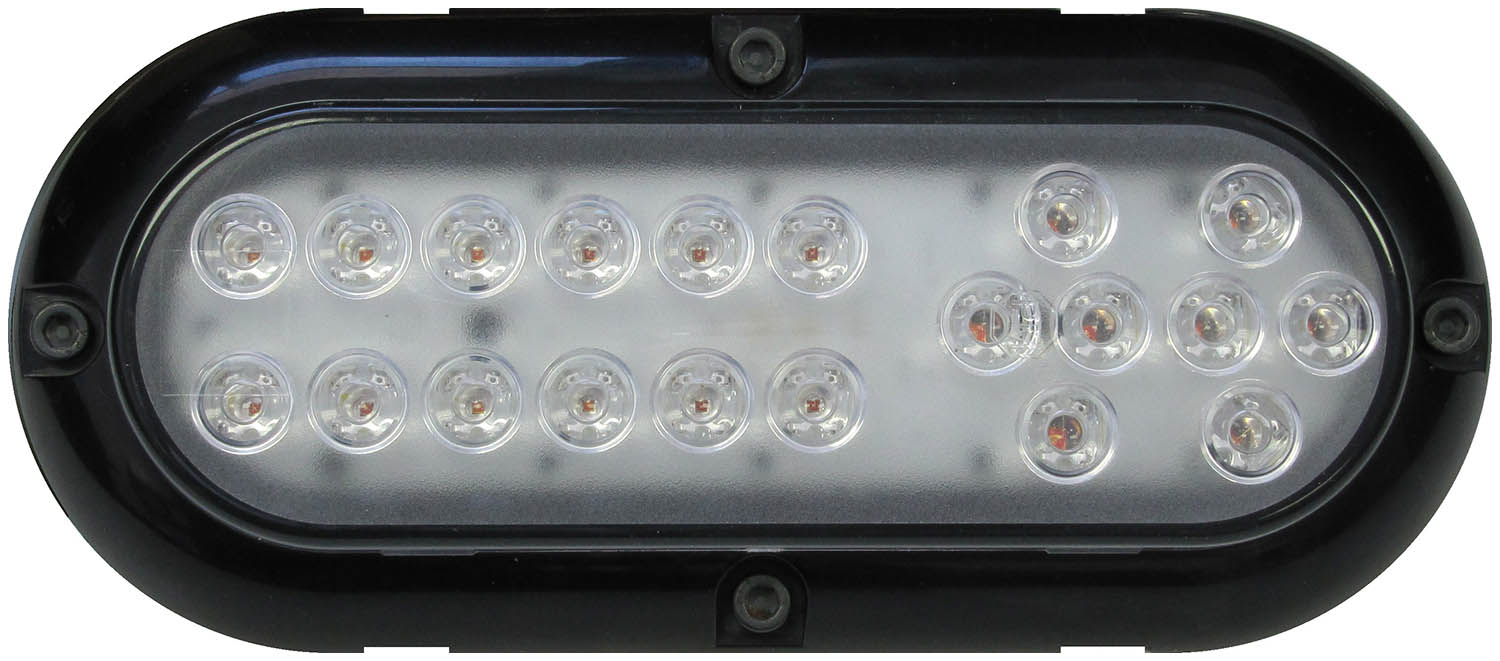

- Clear lens with clear diodes that light up red and amber.
- Clear lens with colored light.
- Convenient surface mounting with four screws.
- ECE compliant.
- Hardwired design with 8" lead wires.
- Hardwired design.
- Multi-volt design is compatible with both 12 and 24 volt systems.
- Multi-volt version available.

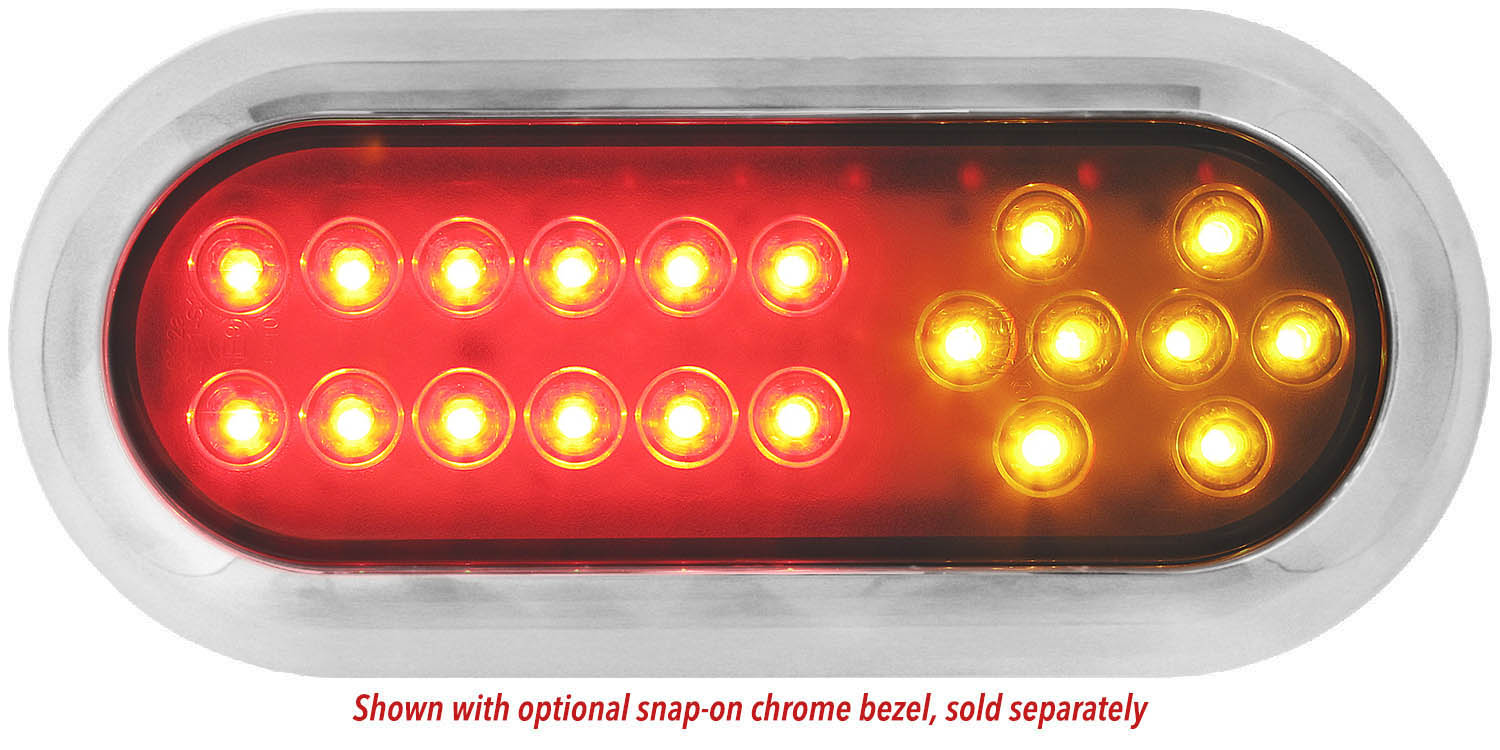

- Oval design w/ black surface-mount housing & optional chrome bezel.
- Sealed lens and housing meets IP67 ingress level.
- See matching red rear stop and tail light above.
Standard Order Quantity: 50
| Bulb Technology | LED |
| Bulb/Diode Count | 20 |
| Container Type | Bulk Pack |
| Ground Type | Wire |
| Height | 3.25 Inch |
| Integral Reflex | No |
| Length | 7.5 Inch |
| Lens Color | Clear |
| Light Color | Amber + Red |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Mounting Type | Surface |
| Multi-Volt | Yes |
| Regulatory Compliance | ECE |
| Shape | Oval |
| termination | Stripped Wire |
| Voltage | 12V / 24V |
| Width | 0.88 Inch |
