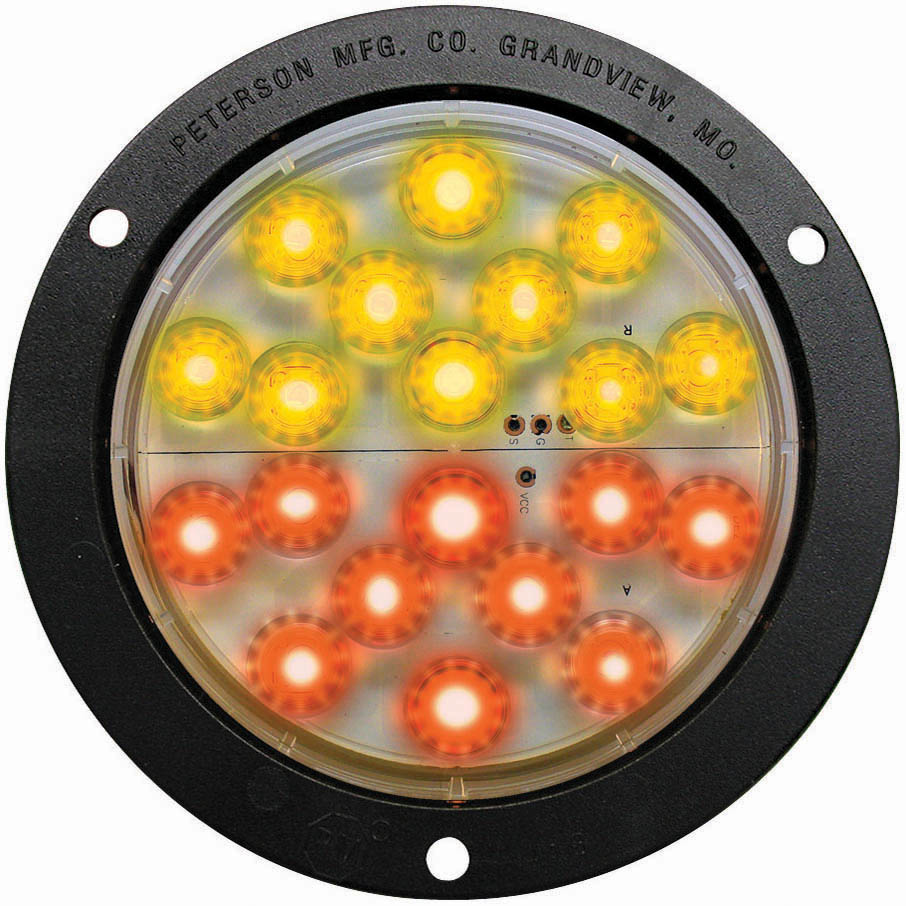

1218A-R-SW
LED S/T/T LGT RND ECE FLNG MNT 12 inch LDS 4 inch MV, bulk pack
1218A-R-SW
LED S/T/T LGT RND ECE FLNG MNT 12 inch LDS 4 inch MV, bulk pack

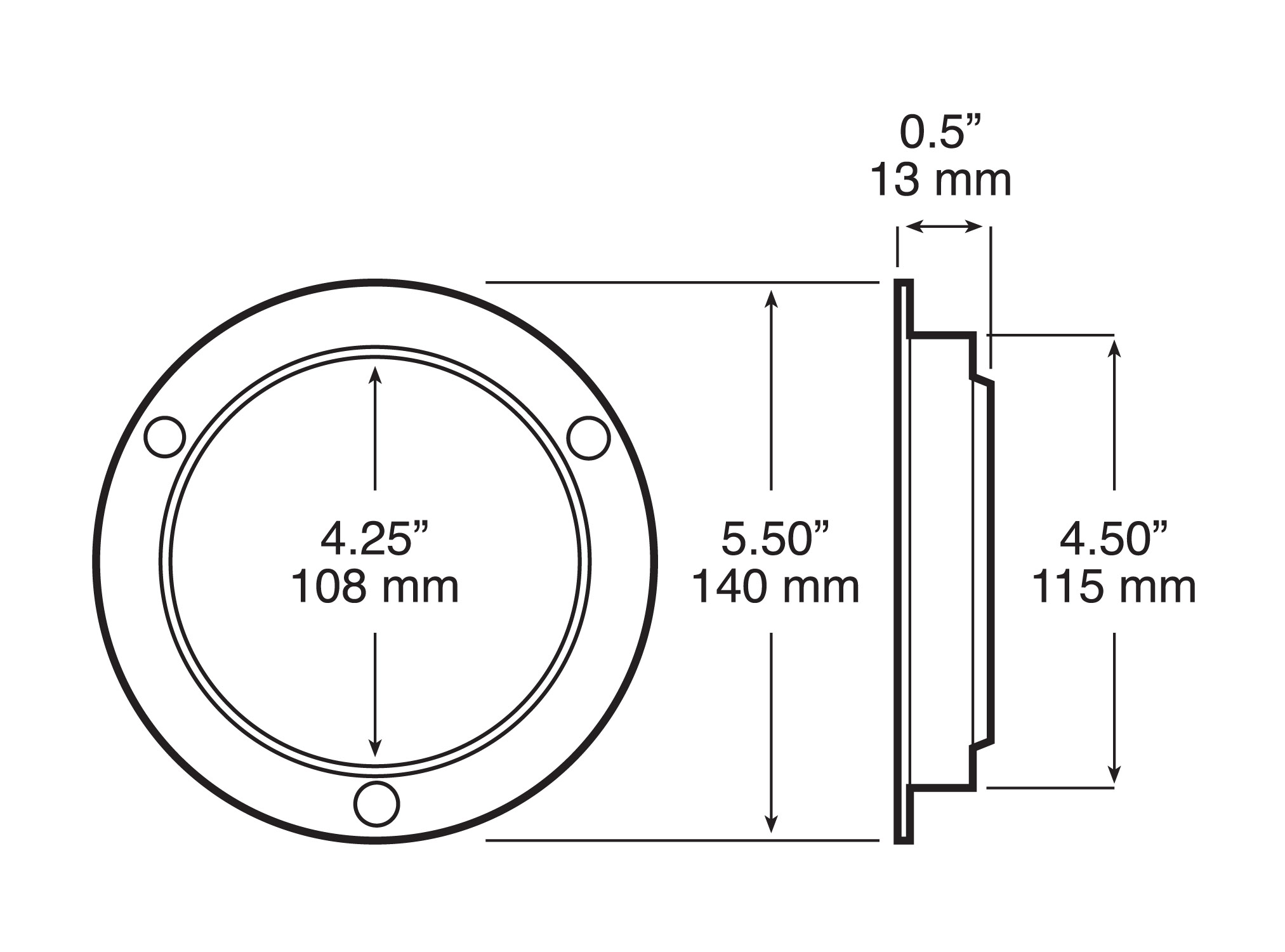

- 108 mm (4-1 / 4") round rear combination light.
- 20 diodes.
- Available in grommet mount or flange mount version.
- Certified to meet ECE requirements for all functions.
- Clear lens with clear diodes that light up amber and red.
- Clear lens with colored light.
- ECE complaint.
- Grommet version fits 114 mm hole in material up to 6 mm.
- Hardwired design.
- Multi-volt design is compatible with both 12 and 24 volt systems.
- Multivolt version available.
- Sealed lens and housing meets IP67 ingress level.
- See Peterson Master Catalog pages 184-185 & 187 for mounting options.
- Turn function in upper half, tail and stop functions in lower half.
- Voltage Regulated.
Standard Order Quantity: 50
| Bulb Technology | LED |
| Bulb/Diode Count | 20 |
| Container Type | Bulk Pack |
| Diameter | 5.5 Inch |
| Ground Type | Wire |
| Height | 5.5 Inch |
| Integral Reflex | No |
| Length | 5.5 Inch |
| Lens Color | Clear |
| Light Color | Amber + Red |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Mounting Type | Flange |
| Multi-Volt | Yes |
| Regulatory Compliance | ECE |
| Shape | Round |
| termination | Stripped Wire |
| Voltage | 12V / 24V |
| Width | 1.49 Inch |
