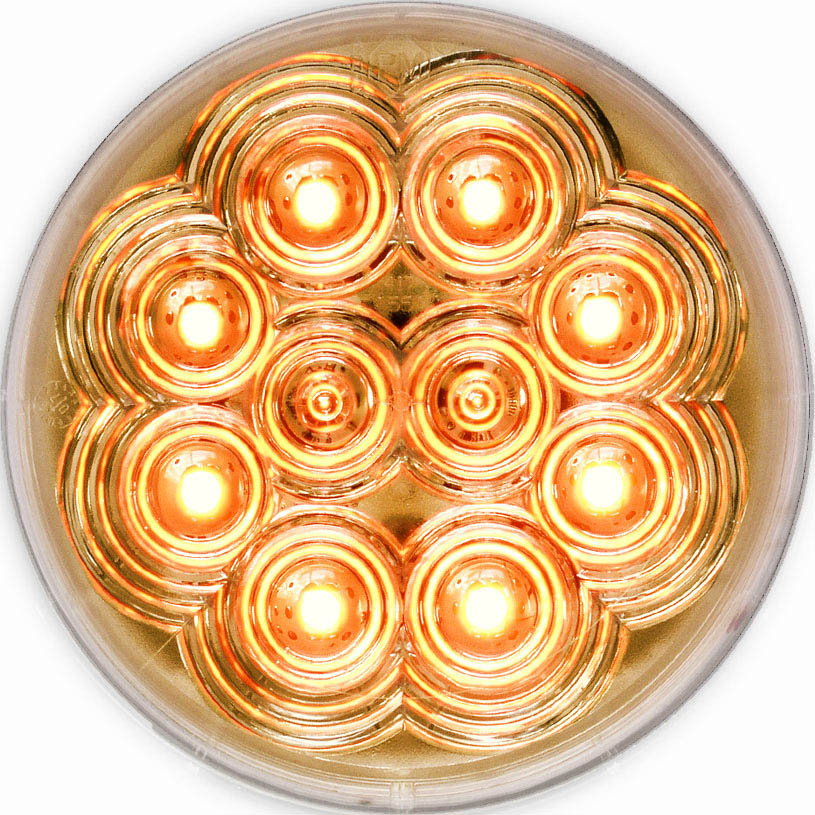

817TA-2C
LED Rear Turn, Round, 10 Diode Clear Lens Grommet-Mount 4 inch Multi-volt, amber, clear lens, poly bag
817TA-2C
LED Rear Turn, Round, 10 Diode Clear Lens Grommet-Mount 4 inch Multi-volt, amber, clear lens, poly bag
- 11 diodes.
- 818TA-2C has flange welded to light, forming a single unit.
- 9-32 volt operating range is compatible with 12V and 24V vehicles.
- AMP-compatible connector integrated into housing.
- Assembled in USA.
- Clear lens with colored light.
- Compatible with connecting plugs shown on Peterson Master Catalog pages 204-207.
- Defender harness & lighting system approved.
- Does not require “Top” positioning to meet FMVSS 108 standard.
- Features amber diodes behind clear lens.
- Multivolt version available.
- New design 817CA-9 & 818CA-9 coming soon.
- Voltage Regulated.
Standard Order Quantity: 1
| Height | 4.25 Inch |
| Length | 4.25 Inch |
| Voltage | 12V / 24V |
| Width | 1.42 Inch |
| Mounting Type | Grommet |
| Lens Color | Clear |
| Regulatory Compliance | DOT |
| Container Type | Poly Bag |
| termination | AMP |
| Shape | Round |
| Light Color | Amber |
| Multi-Volt | Yes |
| Bulb Technology | LED |
| Bulb/Diode Count | 10 |
| Diameter | 4.25 Inch |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Integral Reflex | No |
| Submersible | Yes |
