2217F-C
LED ECE Combination Reverse & Rear Fog Light, red/white Combination; grommet mount; bulk pack
2217F-C
LED ECE Combination Reverse & Rear Fog Light, red/white Combination; grommet mount; bulk pack

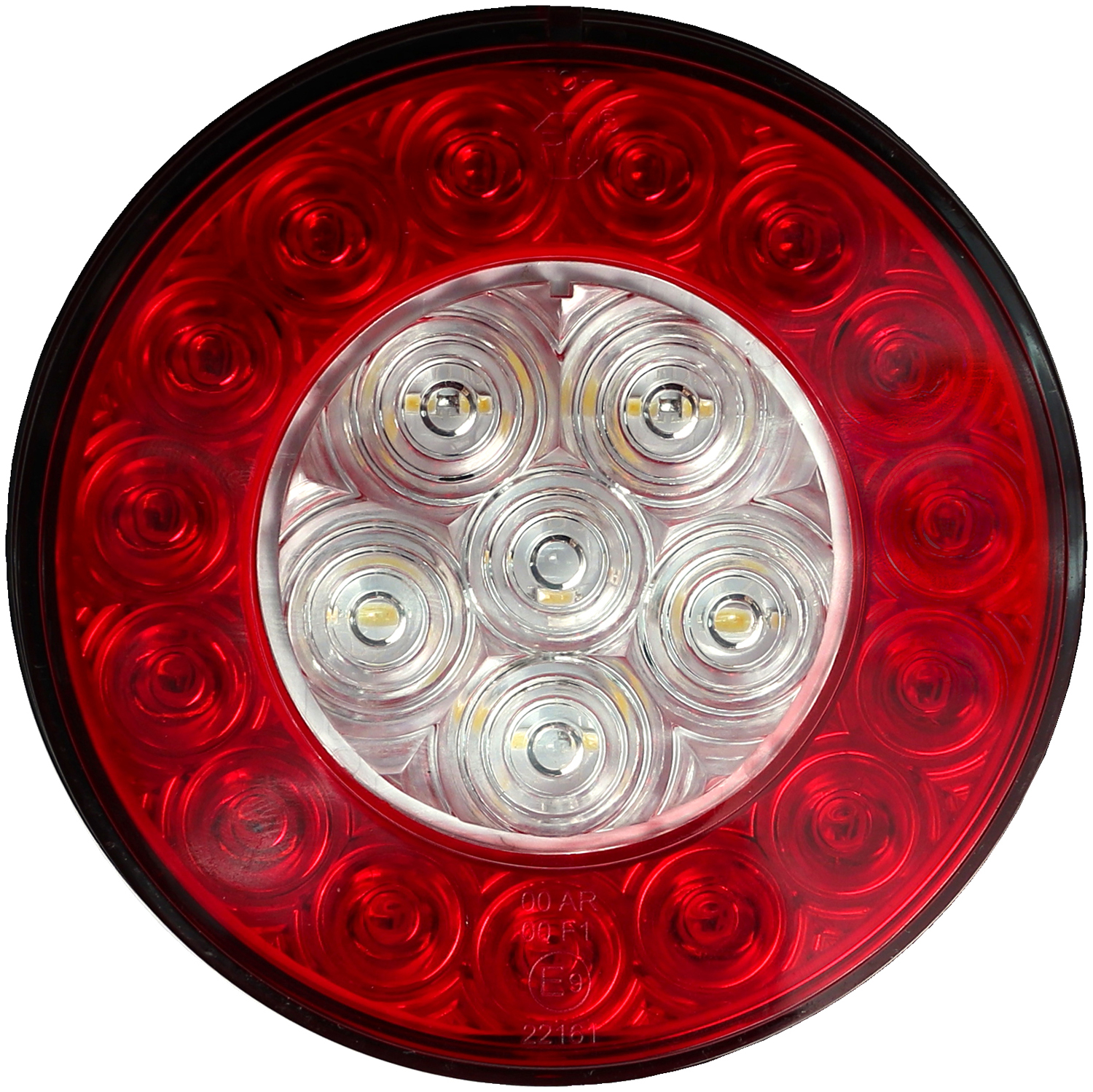

- 108 mm (4-1 / 4") round rear combination light.
- 18 diodes.
- Certified to meet ECE requirements for all functions.
- ECE compliant.
- Grommet version fits 114 mm hole in material up to 6 mm.
- Hardwired design features 12" (300 mm) leads.
- Hardwired design.
- Multi-volt design is compatible with both 12 and 24 volt systems.
- Multi-volt version available.
- Reverse function in center, rear fog function in outer ring.
- Sealed lens and housing meets IP67 ingress protection level.
Standard Order Quantity: 50
| Voltage | 12V / 24V |
| Lens Color | Red + Clear |
| Multi-Volt | Yes |
| Regulatory Compliance | ECE |
| Shape | Round |
| Bulb/Diode Count | 18 |
| Mounting Type | Grommet |
| Light Color | Red + White |
| Ground Type | Wire |
| termination | Stripped Wire |
| Bulb Technology | LED |
| Container Type | Bulk Pack |
| Integral Reflex | No |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |

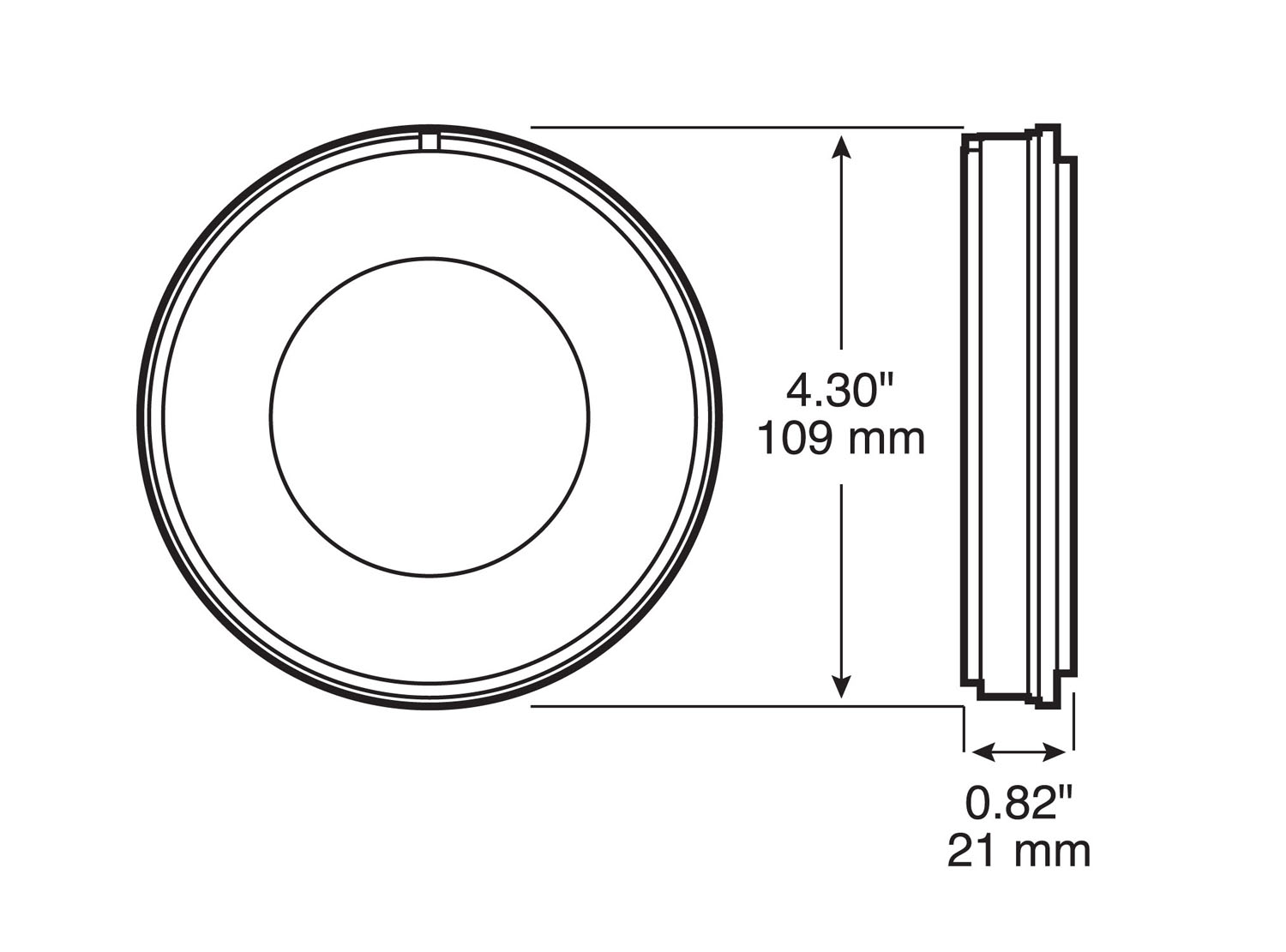

| Diameter | 4.3 Inch |
| Height | 4.3 Inch |
| Length | 4.3 Inch |
| Width | 0.82 Inch |
