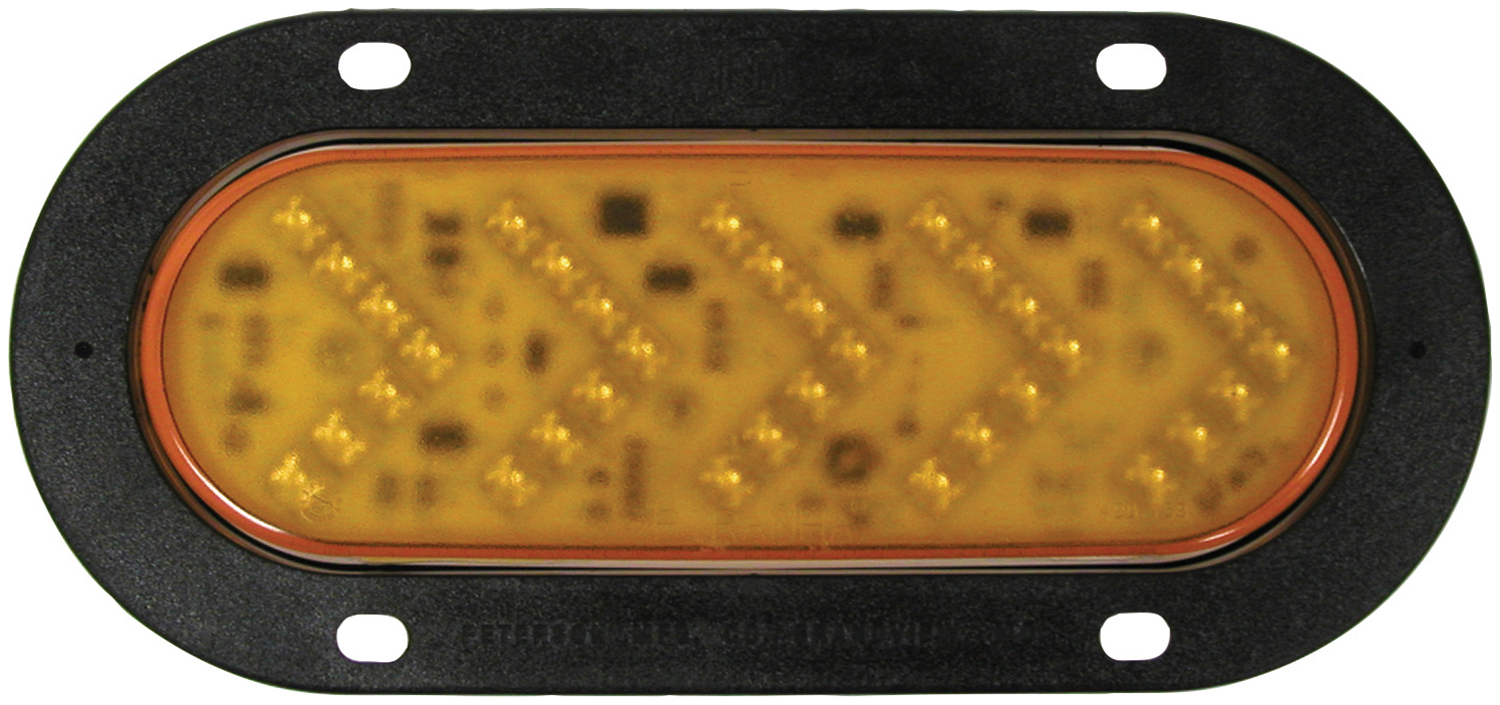

823QA
Sequential AMP Oval Auxiliary / Marker Light, flange, poly bag
823QA
Sequential AMP Oval Auxiliary / Marker Light, flange, poly bag
- Auxiliary / Marker Light
- For auxiliary applications such as mid-turn signal or warning light; not certified to meet legally required turn signal requirements.
- Integral 30 degree angle silicone-sealed AMP receptacle.
- Low light function meets DOT side marker light requirement.
- Multi-volt design compatible with 12 & 24 volt systems.
- Requires AMP-compatible plug to complete installation.
- See clear lens version on Peterson LED Catalog page 45.

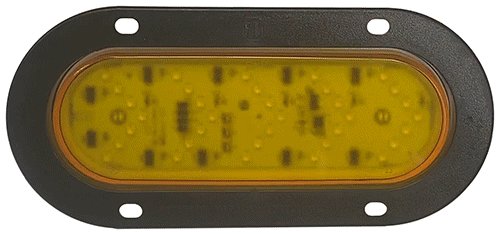

- Sequential-arrow light cycles through multiple sequential arrows until fully illuminated without external flasher unit.
Standard Order Quantity: 6
| Length | 7.88 Inch |
| Lens Color | Amber |
| Shape | Oval |
| Width | 1.45 Inch |
| Mounting Type | Flange |
| Voltage | 12V / 24V |
| Container Type | Poly Bag |
| Regulatory Compliance | DOT |
| Bulb/Diode Count | 35 |
| termination | AMP |
| Light Color | Amber |
| Multi-Volt | Yes |
| Bulb Technology | LED |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Height | 3.63 Inch |
| Integral Reflex | No |
| Submersible | Yes |
| Truck-Lite Interchange | 60282Y |
| Truck-Lite Interchange | 60286Y |
