M193SR

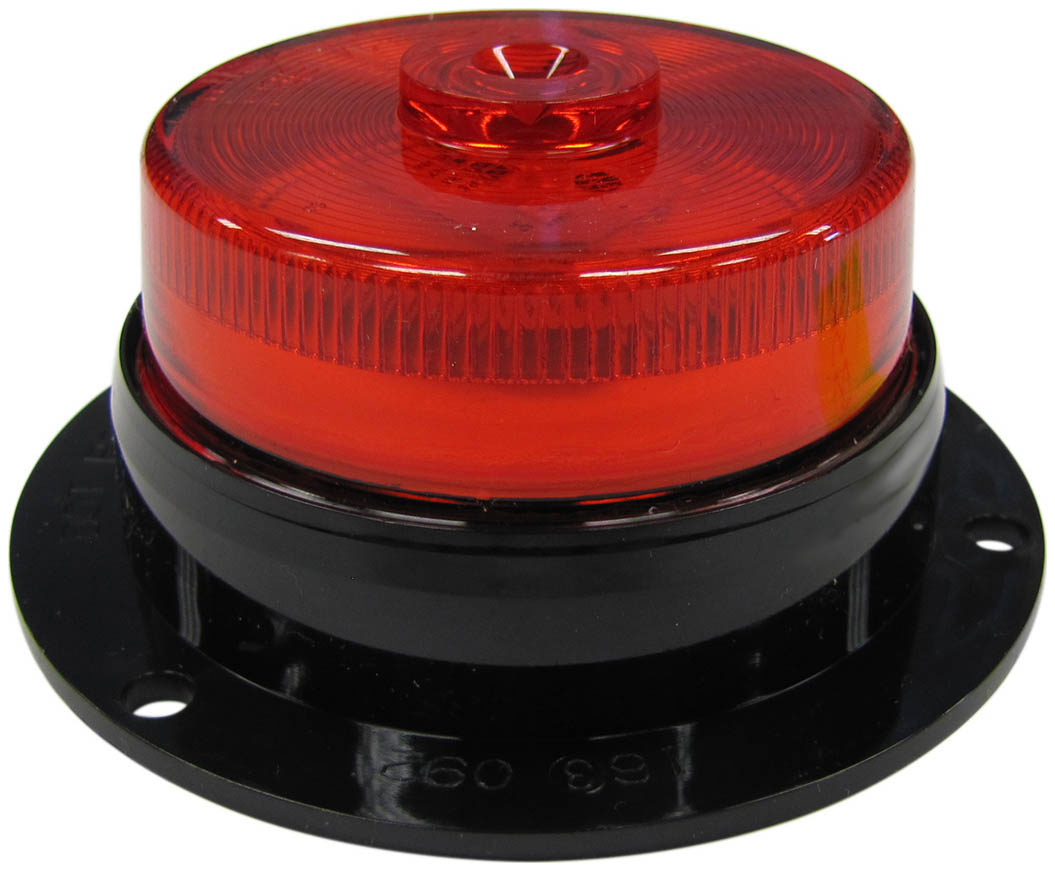

LED Marker/ Clearance, PC-Rated, Round, AMP, w/ Side Marker Flange, 2.5 inch, red, bulk pack
M193SR
LED Marker/ Clearance, PC-Rated, Round, AMP, w/ Side Marker Flange, 2.5 inch, red, bulk pack
- 143-18 grommet and compatible plug required for installation.
- 5 diodes.
- 9-16 volt operating range, 9-32 volts for "-MV" multi-volt units.
- Assembled in USA.
- Does not require “Top” positioning to meet FMVSS 108 standard.
- Functions as clearance & side marker light when mounted at 45 degree angle.

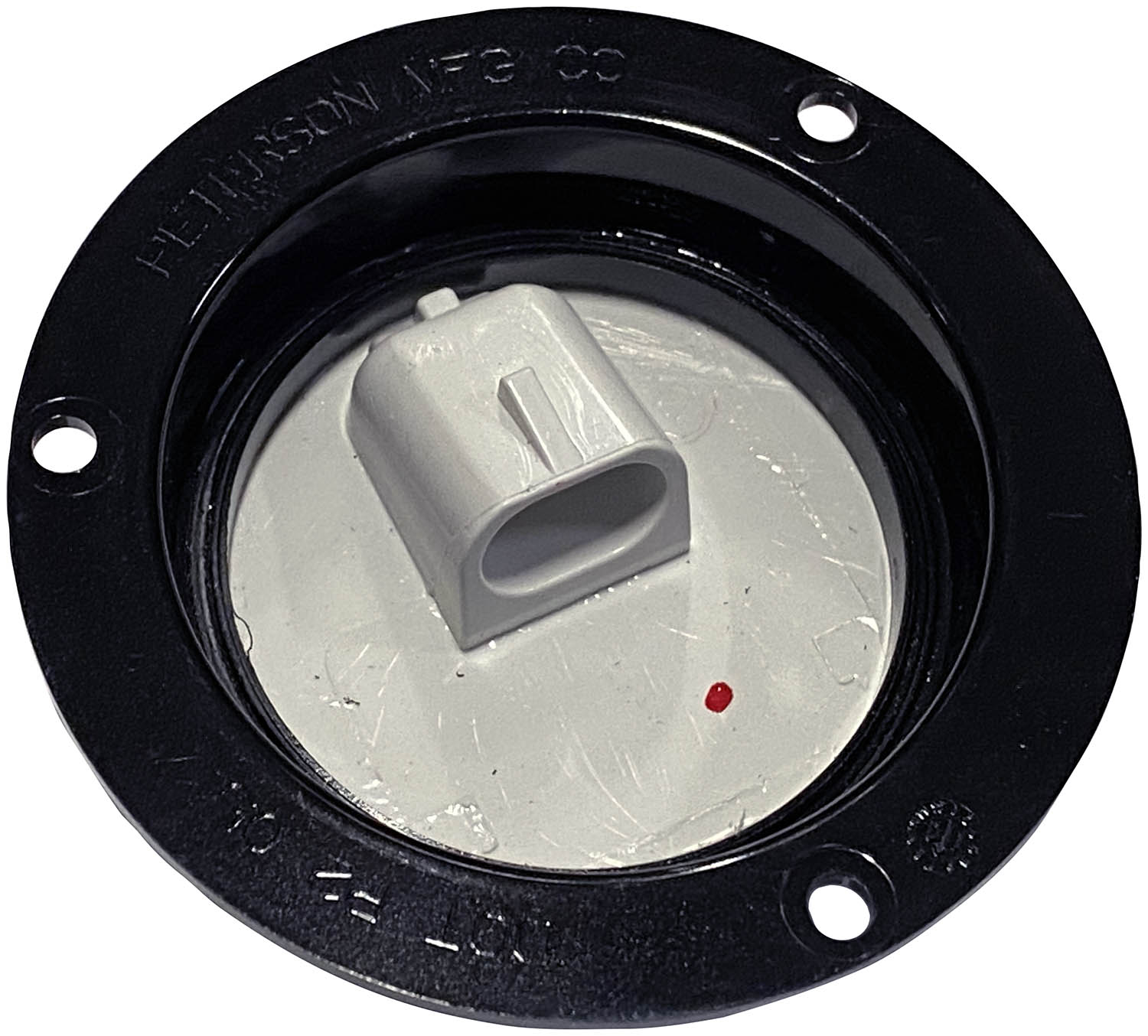

- Integrated receptacle accepts AMP-style sealed connector.
- Multivolt version available.
- PC Rated.
- See mounting accessories section for additional mounting options.
Standard Order Quantity: 50
| Maximum Voltage | 16 Volts |
| Minimum Voltage | 9 Volts |

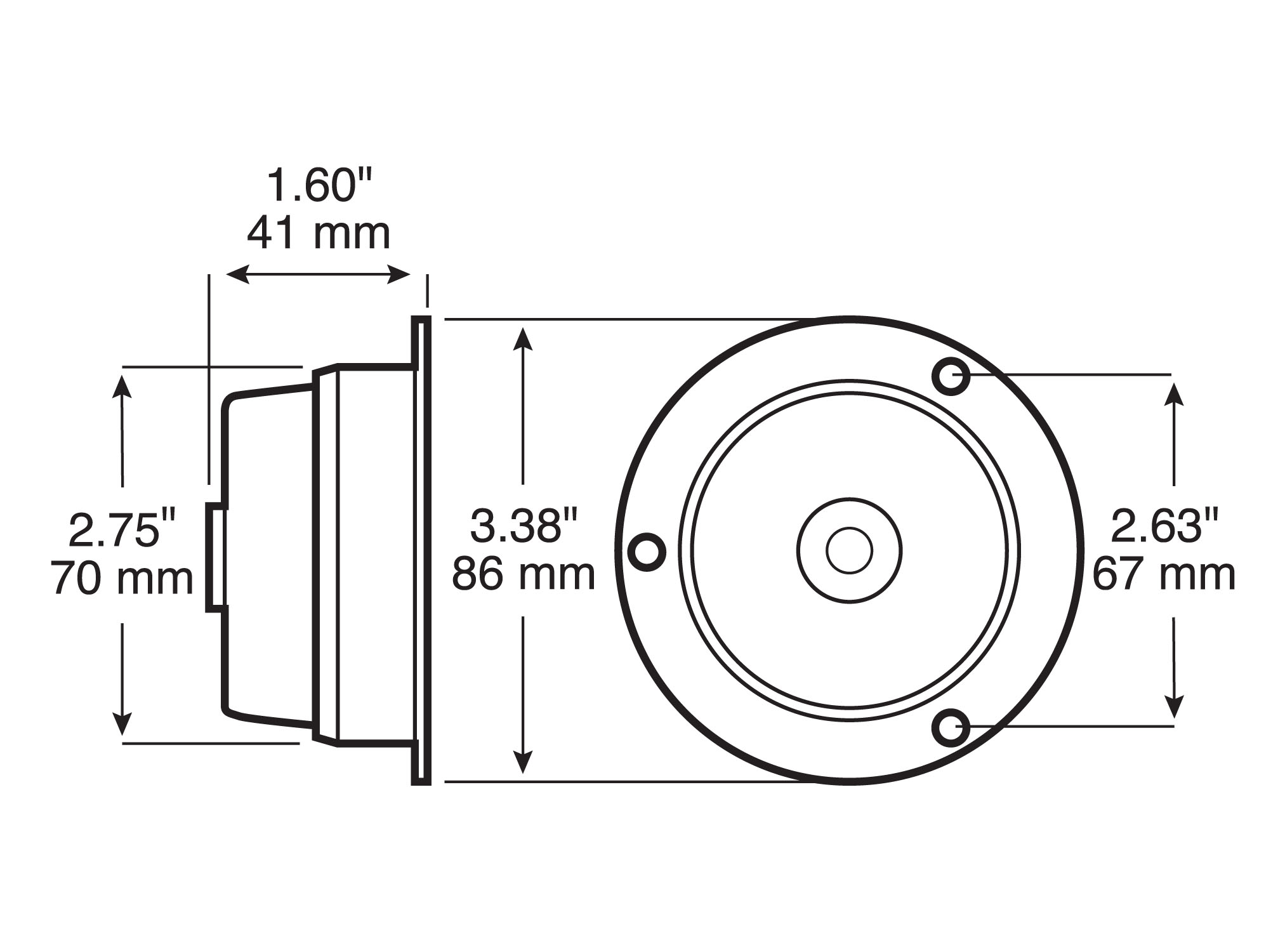

| Diameter | 3.38 Inch |
| Height | 3.38 Inch |
| Length | 3.38 Inch |
| Voltage | 12 Volts |
| Width | 1.6 Inch |
| Integral Reflex | No |
| Mounting Type | Grommet |
| PC Rated | Yes |
| Light Color | Red |
| Bulb/Diode Count | 5 |
| Lens Color | Red |
| Bulb Technology | LED |
| Regulatory Compliance | DOT |
| Shape | 2-1/2-inch Round |
| Container Type | Bulk Pack |
| Multi-Volt | No |
| Submersible | Yes |
