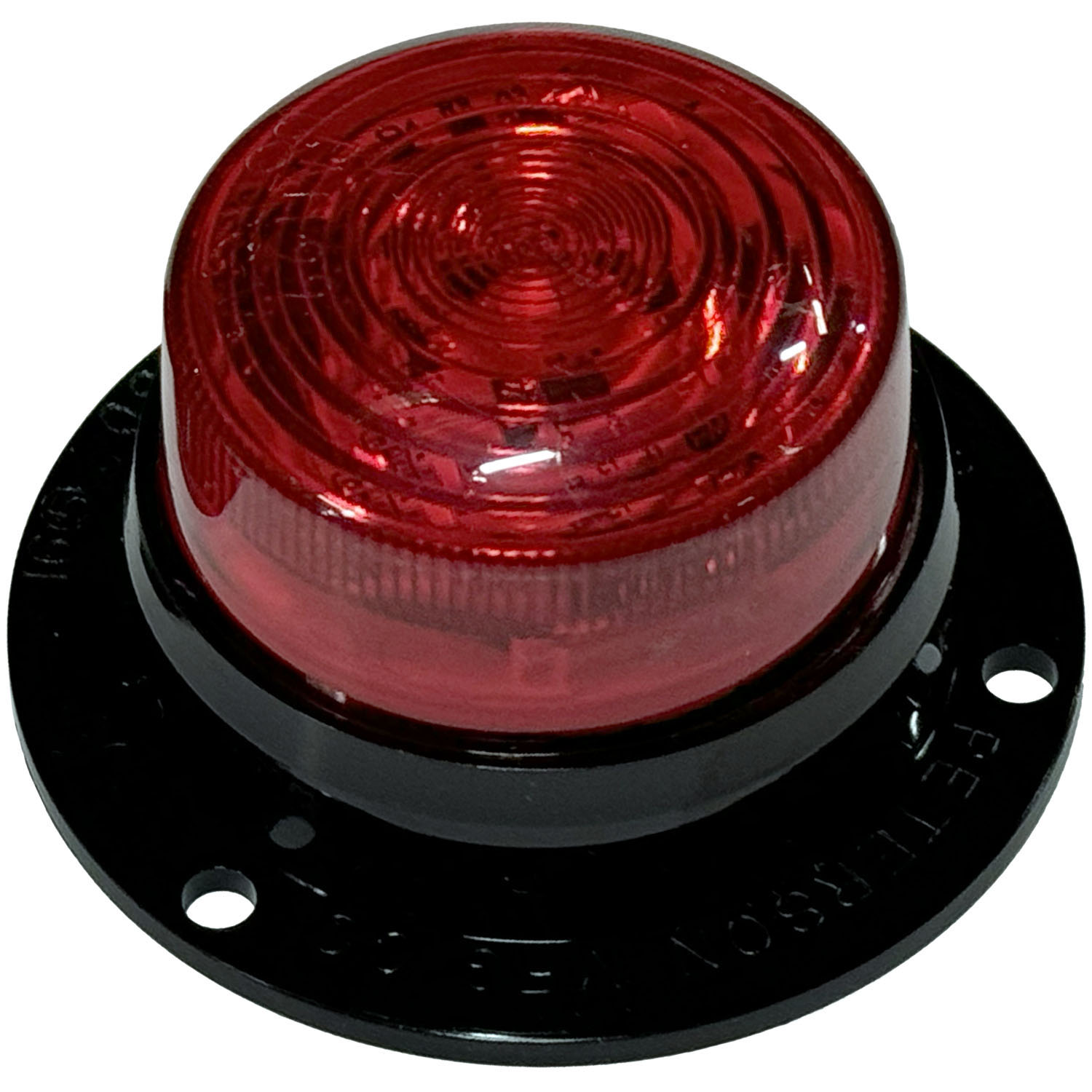

209SR-MV
PC-Rated 2 inch Clearance & Side Marker Light; red surface; poly bag
209SR-MV
PC-Rated 2 inch Clearance & Side Marker Light; red surface; poly bag
- Attractive multi-diode look.
- Clearance & Side Marker Light

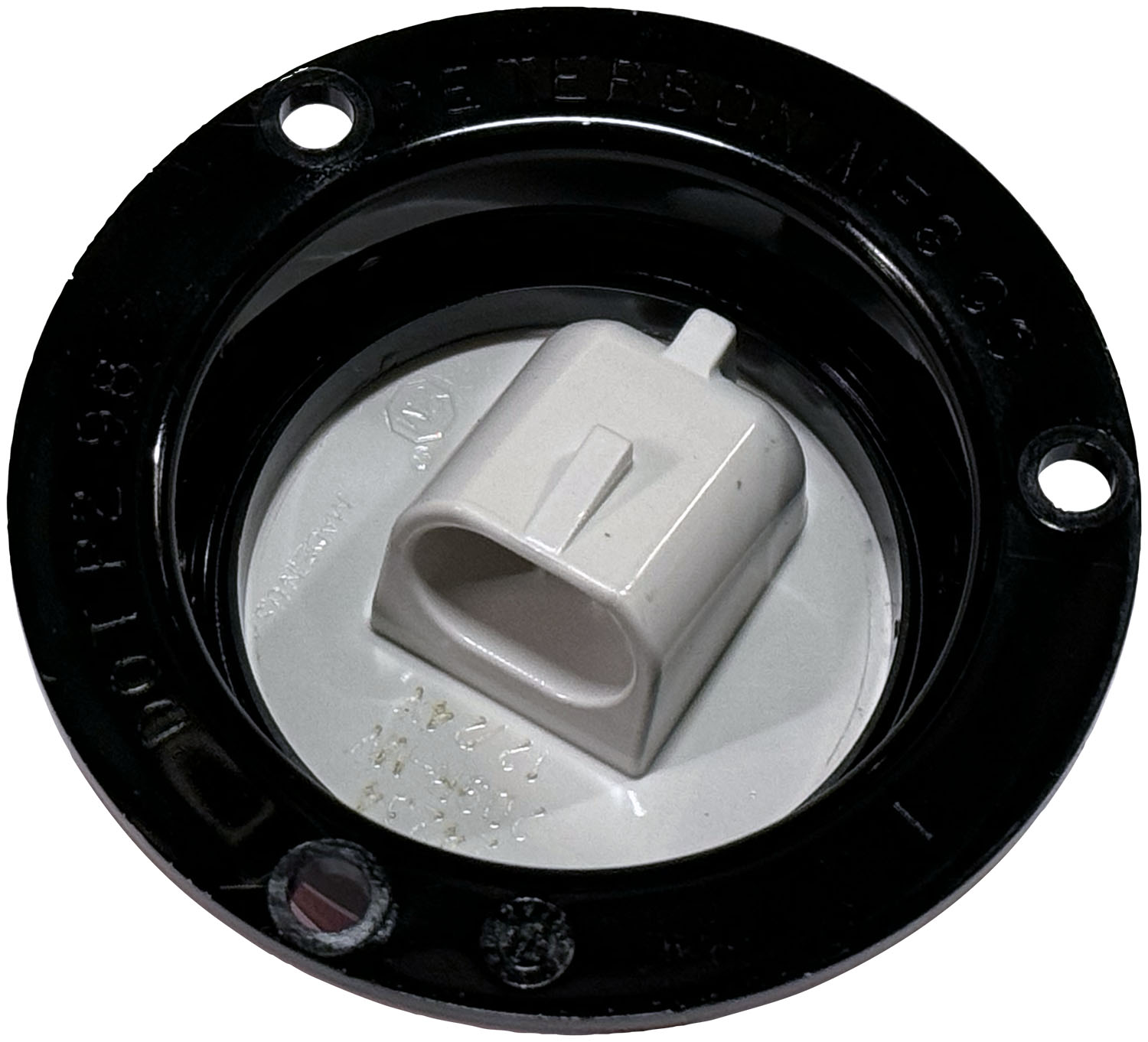

- Integral 30 degree angle silicone-sealed AMP receptacle.
- Multi-volt design compatible with 12 & 24 volt systems.
- PC-rated light functions as both clearance and side marker when properly mounted.
- Use 146-18 grommet for PC-rated grommet installation.
Standard Order Quantity: 1
| 209FR-MV | PC-Rated 2 inch Clearance & Side Marker Light; red flange; poly bag |
| 209FA-MV | PC-Rated 2 inch Clearance & Side Marker Light; amber flange; poly bag |
| 209KA-MV | PC-Rated 2 inch Clearance & Side Marker Light; amber grommet kit; poly bag |
| M209SR-MV | PC-Rated 2 inch Clearance & Side Marker Light; red surface; bulk pack |
| M209SA-MV | PC-Rated 2 inch Clearance & Side Marker Light; amber surface; bulk pack |
| M209R-MV | PC-Rated 2 inch Clearance & Side Marker Light; red grommet; bulk pack |
| M209A-MV | PC-Rated 2 inch Clearance & Side Marker Light; amber grommet; bulk pack |
| M209FR-MV | PC-Rated 2 inch Clearance & Side Marker Light; red flange; bulk pack |
| M209FA-MV | PC-Rated 2 inch Clearance & Side Marker Light; amber flange; bulk pack |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Diameter | 2.94 Inch |
| Height | 2.94 Inch |
| Length | 1.52 Inch |
| Voltage | 12V / 24V |
| Width | 2.94 Inch |
| Integral Reflex | No |
| Mounting Type | Surface |
| PC Rated | Yes |
| Light Color | Red |
| Bulb/Diode Count | 5 |
| Lens Color | Red |
| Bulb Technology | LED |
| Regulatory Compliance | DOT |
| Shape | 2-inch Round |
| Container Type | Poly Bag |
| Multi-Volt | Yes |
| Submersible | Yes |
