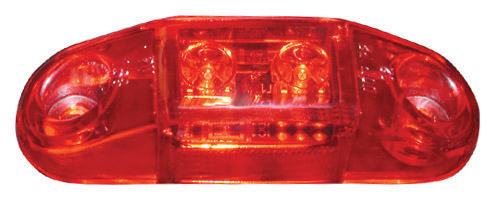

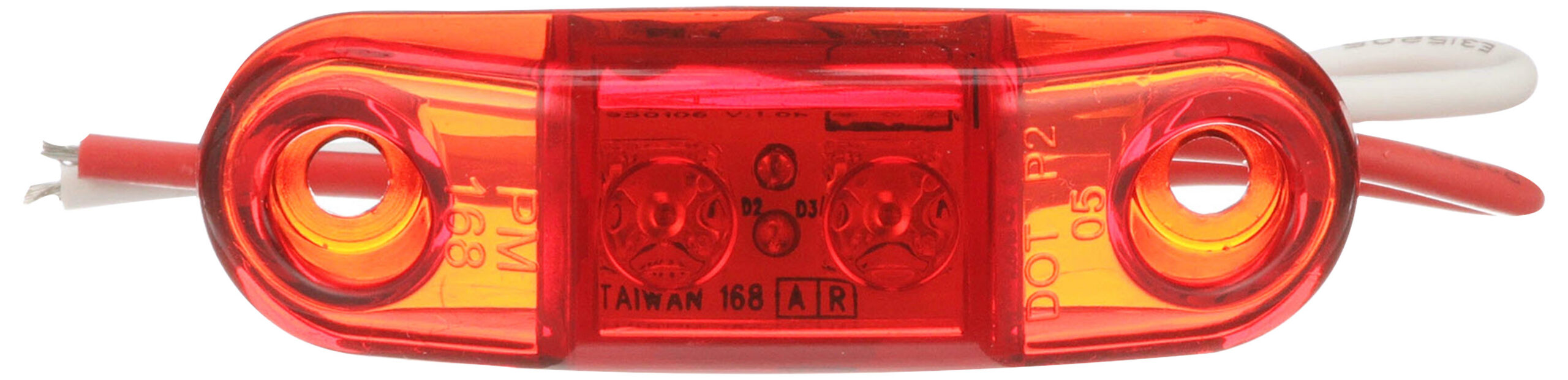

M168R
Mini Surface-Mount Clearance/Side Marker Light, 12 Volt; red; bulk pack
M168R
Mini Surface-Mount Clearance/Side Marker Light, 12 Volt; red; bulk pack
- Clearance/Side Marker Light, 12 Volt

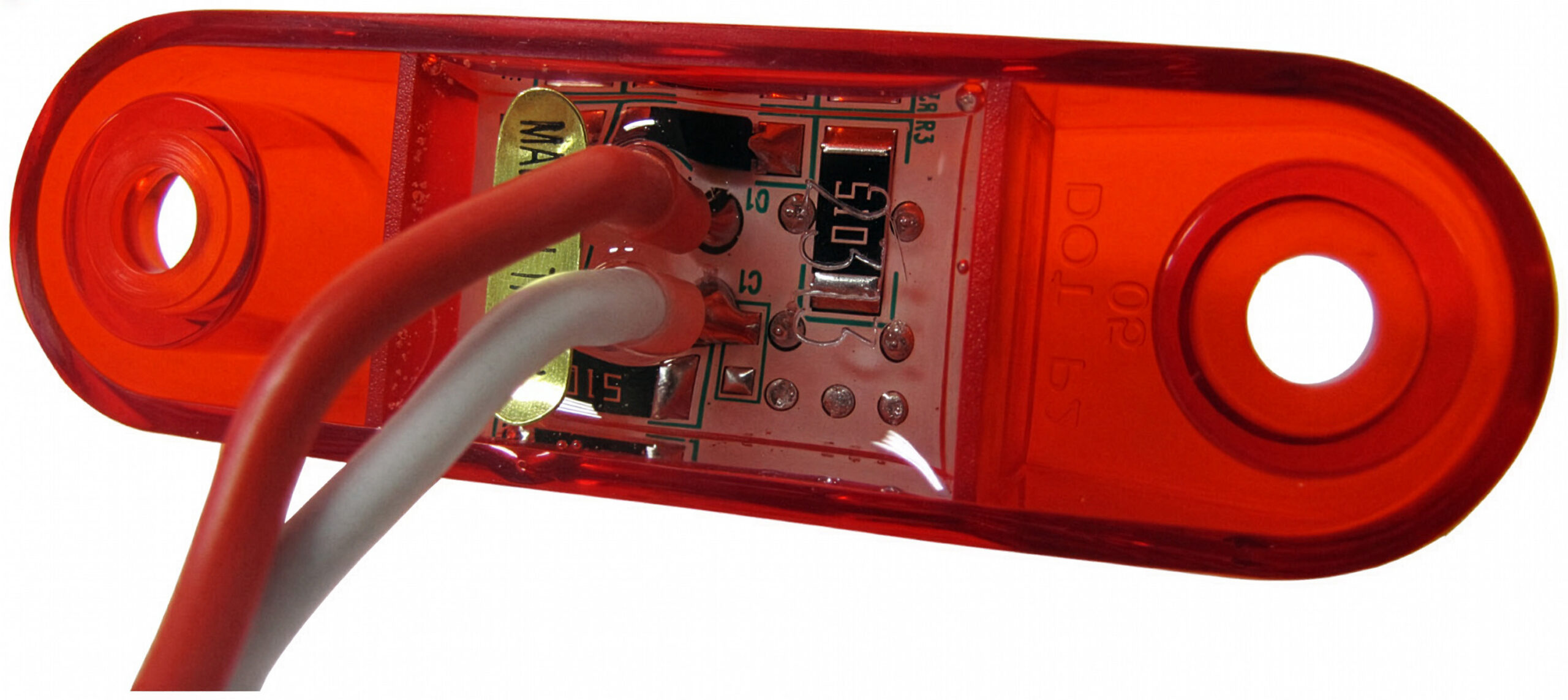

- Hardwired with separate 5.75" lead and ground wires. (4484 series features 9.5" long lead wires.)
- Mounts on 1-15 / 16" centers; optional 168-09 bracket mounts on either 1-15 / 16" or 1-1 / 8" centers.
- See clear lens versions on Peterson LED Catalog page 46.
- XA / XR versions include 168-10 chrome bezel, also available separately.
Standard Order Quantity: 50
| V168R | Mini Surface-Mount Clearance/Side Marker Light, 12 Volt; red; Viz Pack |
| V168A | Mini Surface-Mount Clearance/Side Marker Light, 12 Volt; amber; Viz Pack |
| 4484R-1 | Mini Surface-Mount Clearance/Side Marker Light, 12 Volt; red w/ .180 bullets; bulk pack |
| 4484A-1 | Mini Surface-Mount Clearance/Side Marker Light, 12 Volt; amber w/ .180 bullets; bulk pack |
| M168CR-BT2 | Mini Clearance/Side Marker Light; red clear lens, .180 bullets; bulk pack |
| M168CA-BT2 | Mini Clearance/Side Marker Light; amber clear, .180 bullets; bulk pack |
| M168A | Mini Surface-Mount Clearance/Side Marker Light, 12 Volt; amber; bulk pack |
| 168R | Mini Surface-Mount Clearance/Side Marker Light, 12 Volt; red; poly bag |
| 168A | Mini Surface-Mount Clearance/Side Marker Light, 12 Volt; amber; poly bag |
| V168XR | Mini Surface-Mount Clearance/Side Marker Light, 12 Volt; red kit w/ bezel; Viz Pack |
| V168XA | Mini Surface-Mount Clearance/Side Marker Light, 12 Volt; amber kit w/ bezel; Viz Pack |
| 100 | alum. brush guard kit (bulk pack - std qty ) |
| 12 | alum. brush guard kit (poly bag - std qty ) |
| 100 | black bracket (bulk pack - std qty ) |
| 12 | black bracket (poly bag - std qty ) |
| 100 | chrome bezel kit (bulk pack - std qty ) |
| 12 | chrome bezel kit (poly bag - std qty ) |
| 100 | gasket for 168-092 (bulk pack - std qty ) |
| 100 | mounting gasket (bulk pack - std qty ) |
| 12 | mounting gasket (poly bag - std qty ) |
| Maximum Voltage | 16 Volts |
| Minimum Voltage | 9 Volts |
| Height | 0.75 Inch |
| Length | 2.75 Inch |
| Voltage | 12 Volts |
| Width | 0.63 Inch |
| Integral Reflex | No |
| Mounting Type | Surface |
| PC Rated | No |
| Light Color | Red |
| Bulb/Diode Count | 2 |
| Lens Color | Red |
| Bulb Technology | LED |
| Regulatory Compliance | DOT |
| Shape | Oval |
| Container Type | Bulk Pack |
| Multi-Volt | No |
| Mounting Centers | 1.94 Inch |
| Submersible | Yes |
| Grote Interchange | 47012-3 |
| Bargman Interchange | 47-107047 |
