P4177R

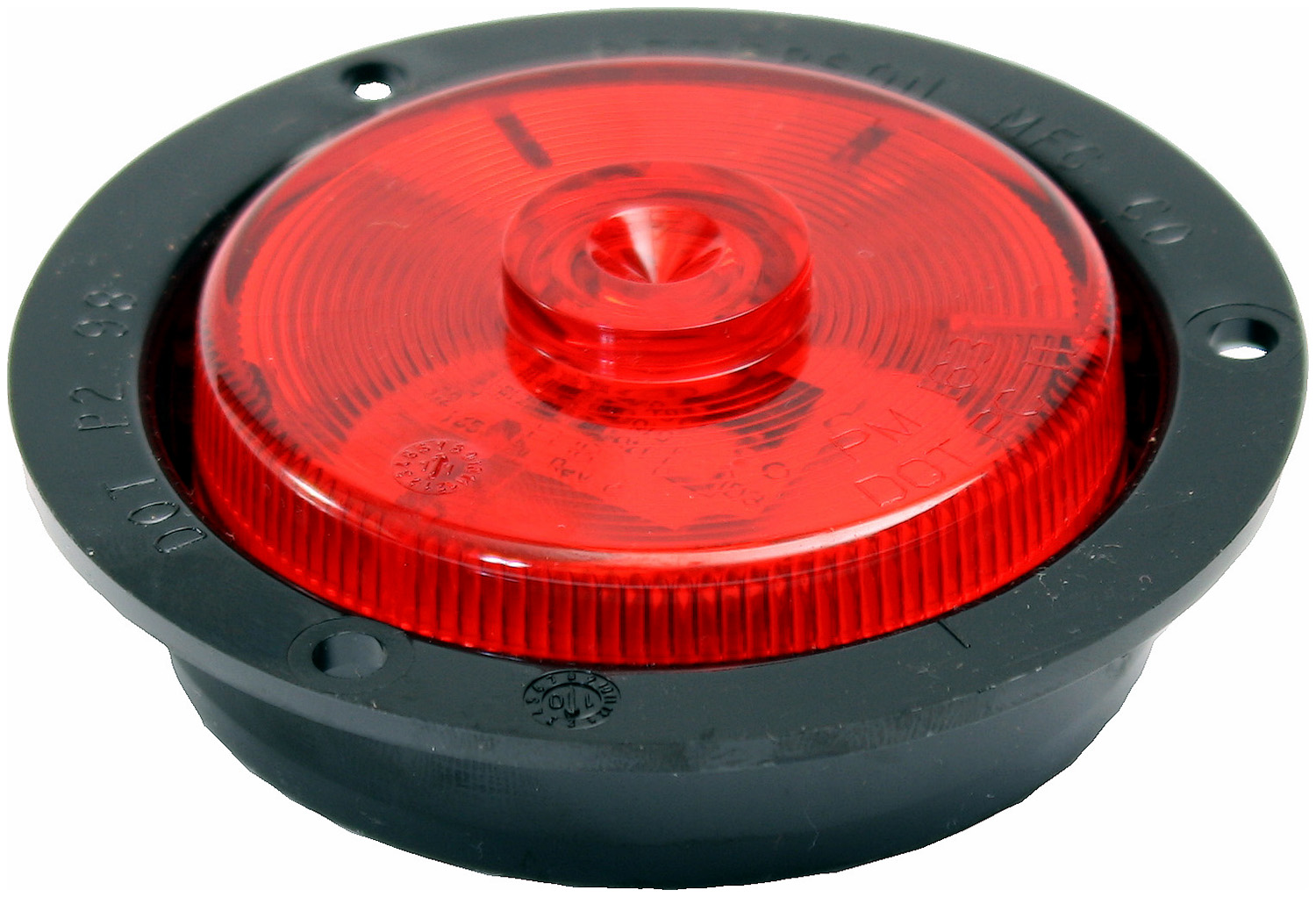

LED M/C PC Round W/Packard Plug 2.5 inch
P4177R
LED M/C PC Round W/Packard Plug 2.5 inch
- 143-18 grommet required for installation.
- 5 diodes.
- 9-16 volt operating range.
- Assembled in USA.
- Does not require “Top” positioning to meet FMVSS 108 standard.
- Functions as clearance & side marker light when mounted at 45 degree angle.

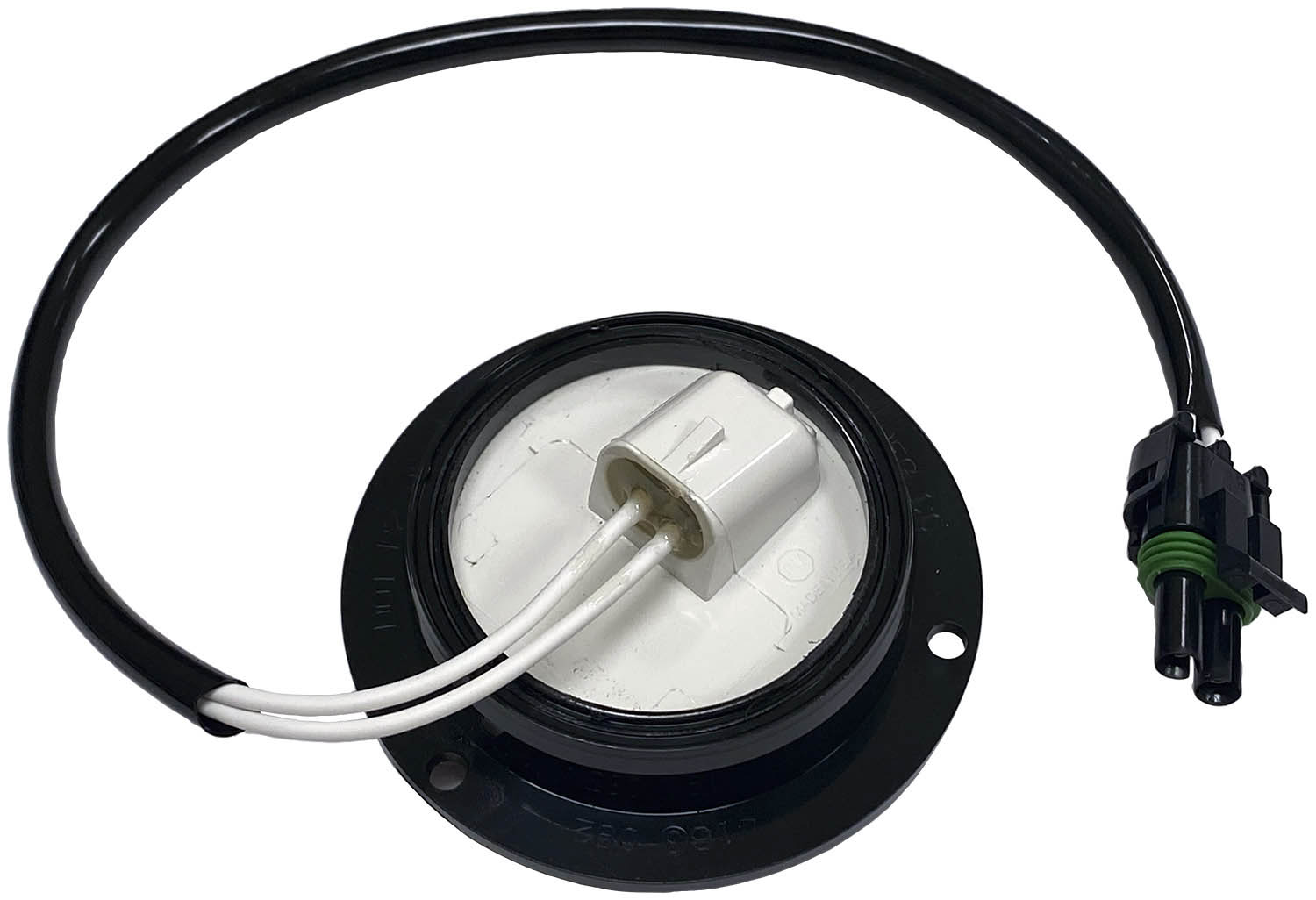

- Hardwired with Packard-style sealed connector.
- Housing, lens, circuitry, and diodes match Peterson 193FR clearance/marker light.
- PC Rated.
- See mounting accessories section for additional mounting options.
Standard Order Quantity: 1
| Bulb Technology | LED |
| Lens Color | Red |
| Voltage | 12 Volts |
| Light Color | Red |
| PC Rated | Yes |
| Bulb/Diode Count | 5 |
| Shape | 2-1/2-inch Round |
| Integral Reflex | No |
| Mounting Type | Grommet |
| termination | Packard |
| Container Type | Poly Bag |
| Multi-Volt | No |
| Regulatory Compliance | DOT |
| Height | 2.5 Inch |
| Length | 1.54 Inch |
| Maximum Voltage | 16 Volts |
| Minimum Voltage | 9 Volts |
| Width | 2.5 Inch |
| Diameter | 2.5 Inch |
| Submersible | Yes |
