186-3R
Identification Light Bar; red stripped; poly bag
186-3R
Identification Light Bar; red stripped; poly bag
- All leads are plugged into pre-installed gang harness.
- Defender Harness System approval applies to M186-3R-BT2 version.

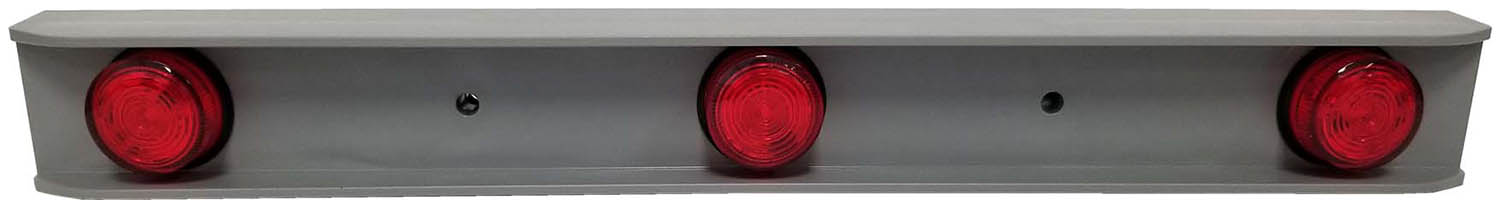

- Identification Light Bar

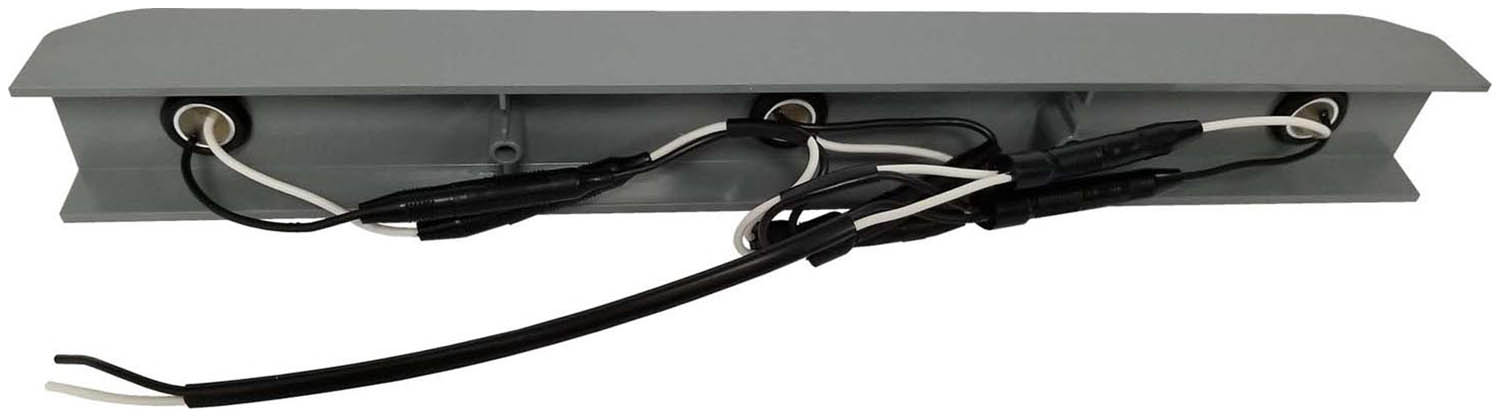

- Individual lights have hardwired leads terminated with .180 bullets.
- Three individual single-diode 1-3/8" diameter Lumen X ® Dot XL ™ lights pre-mounted in rugged, one-piece, corrosion-resistant polymer housing.
Standard Order Quantity: 1
| M186-3R | Identification Light Bar; red stripped; bulk pack |
| M186-3R-BT2 | Identification Light Bar; red .180 Bullets; bulk pack |
| Lens Color | Red |
| Shape | Bar |
| Voltage | 12 |
| Bulb/Diode Count | 3 |
| Bulb Technology | LED |
| Ground Type | Wire |
| Regulatory Compliance | DOT |
| termination | Stripped Wire |
| Light Color | Red |
| Mounting Type | Surface |
| Container Type | Poly Bag |
| Multi-Volt | No |
| Minimum Voltage | 9 |

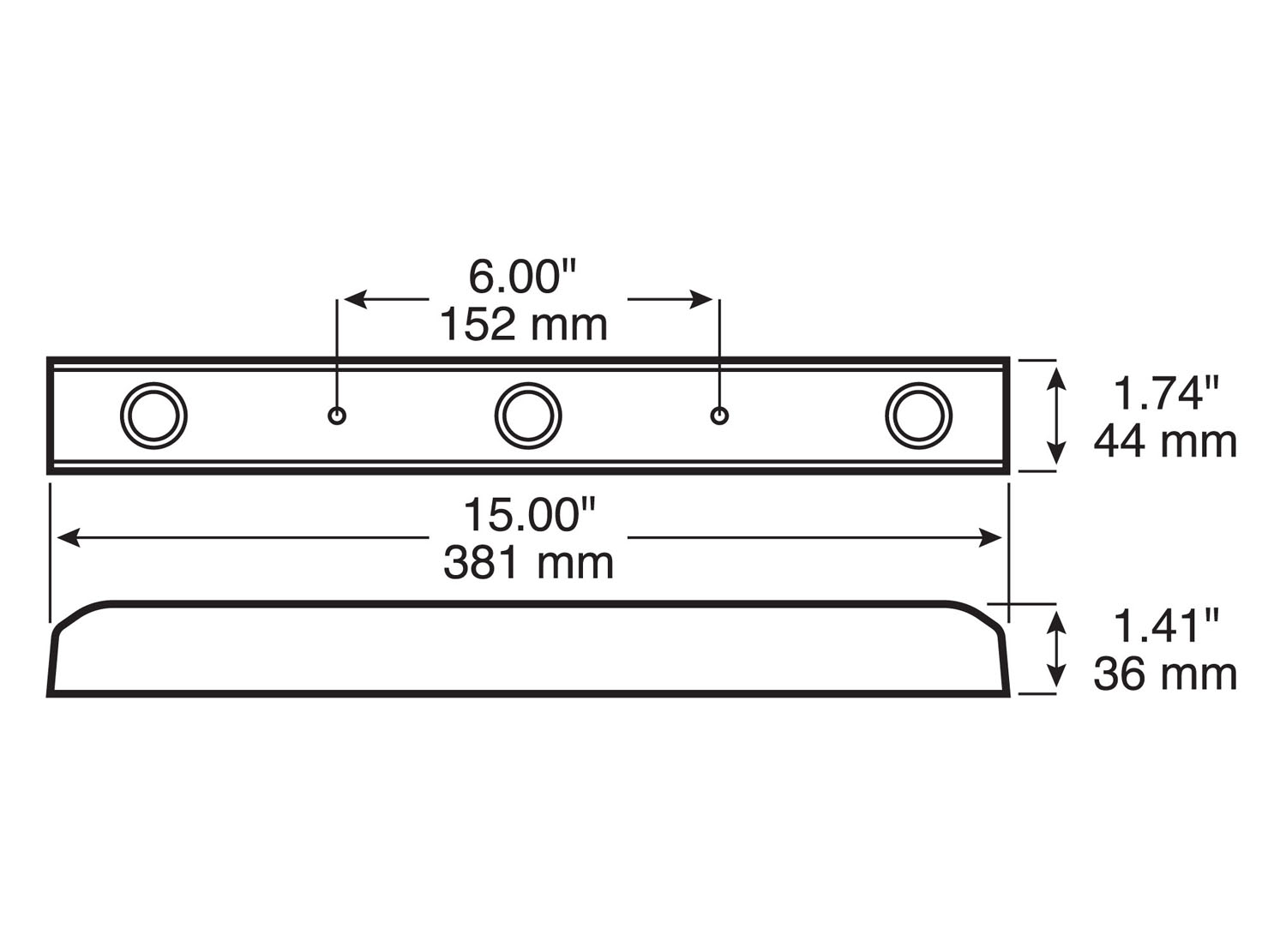

| Mounting Centers | 6 |
| Height | 1.74 |
| Length | 15 |
| Width | 1.41 |
| Maximum Voltage | 16 |
| Submersible | Yes |
