V701KC-2
7″ Round PAR 56 Headlight, 2 headlight kit, Viz Pack
V701KC-2
7″ Round PAR 56 Headlight, 2 headlight kit, Viz Pack
- 7" Round PAR 56 Headlight
- Drop-in LED replacement for all PAR56 7-inch standard headlights.
- Multi-volt design is compatible with both 12V and 24V systems.
- DOT-legal; exceeds FMVSS-108 and CMVSS-108 requirements.
- Standard H4 3-blade terminals integrated into cast alloy rear housing.
- 1100 / 1650 lumen output (low / high beam).
- Draws only 0.7-1.9 amps.
- 5400 – 6400k color temperature closely matches natural daylight.
- Certified to meet IP66 ingress protection rating.
- Heavy-duty polycarbonate lens and cast alloy housing.
- Does not function as a daytime running light (DRL).
- Requires 701-491 anti-flicker harness for use on CANBUS-equipped vehicles, including '07 and newer Jeep Wrangler.

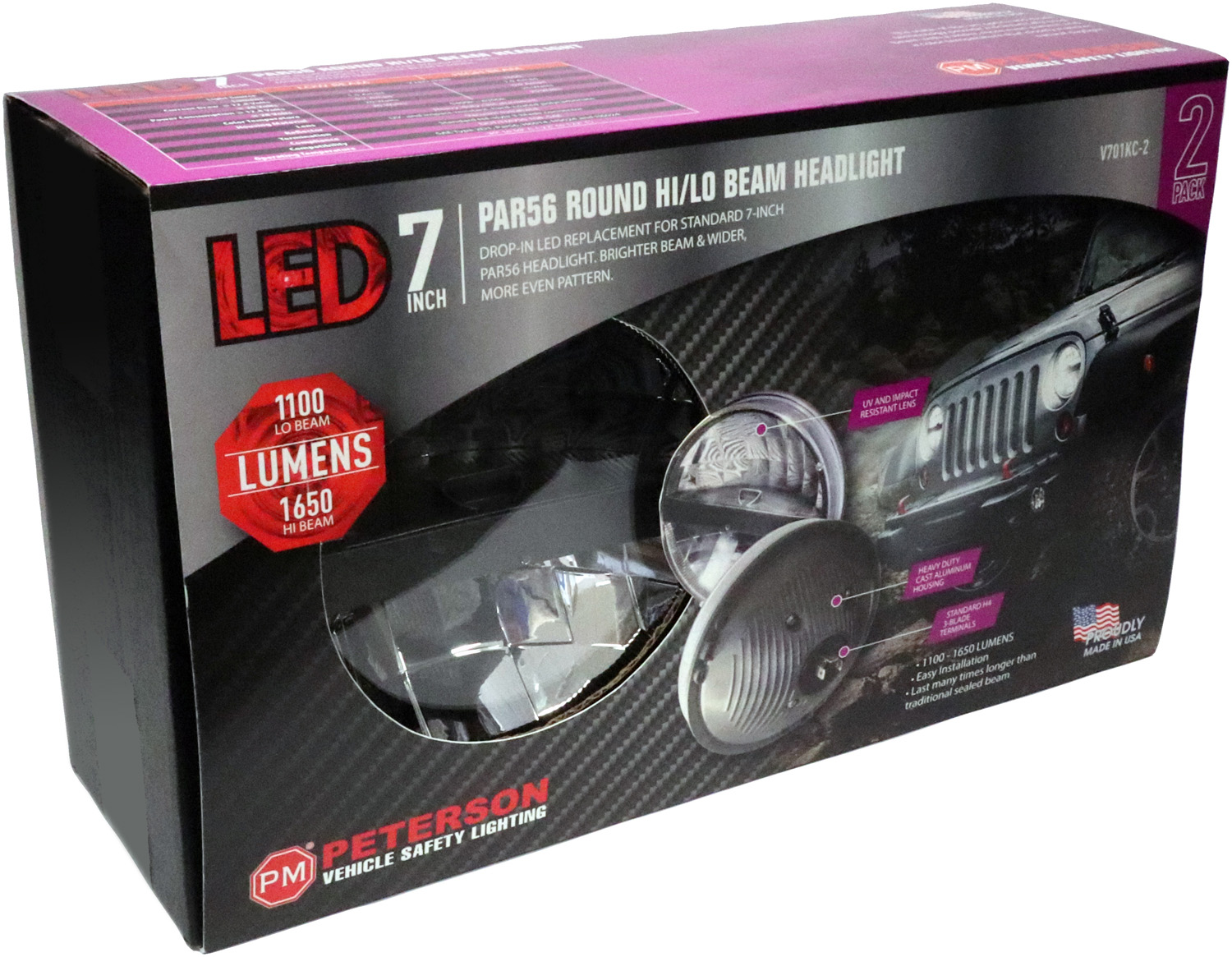

- V701KC-2 Kit includes 2 headlights & two 701-491 anti-flicker harnesses.
- For left-hand traffic, see ECE version on Peterson's website.
Standard Order Quantity: 2
| 701-491 | anti-flicker harness (Viz Pack - std qty ) |
| Bulb Technology | LED |
| Lens Color | Clear |
| Shape | Round |
| Voltage | 12V / 24V |
| Color Temperature | 5400 - 6400k |
| Multi-Volt | Yes |
| Light Color | White |
| Regulatory Compliance | DOT |
| Container Type | Viz Pack |
| Bulb/Diode Count | 2 |
| termination | H4 |
| Average Current Draw | 1.66 Ampere |
| Brightness | 1650 Lumens |
| Diameter | 7 Inch |
| Height | 7 Inch |
| Length | 7 Inch |
| Maximum Amperage Draw | 1.992 Ampere |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Width | 3.9 Inch |
