702C
Rectangular Quad Low-Beam Headlight; 4 inchx6 inch low beam; box
702C
Rectangular Quad Low-Beam Headlight; 4 inchx6 inch low beam; box
- Rectangular Quad Low-Beam Headlight
- SAE Type 2A1 low beam for use in integrated 4-lamp system.
- Multi-volt design is compatible with both 12V and 24V systems.
- DOT-legal; exceeds FMVSS-108 and CMVSS-108 requirements.
- Hardwired leads terminated w/ standard H4 3-blade connector.
- 800 source lumens.
- Draws only 10.25 watts.
- 5200 – 6000k color temperature closely matches natural daylight.
- Certified to meet IP66 ingress protection rating.
- Heavy-duty polycarbonate / cast alloy housing.
- Physical and electrical compatibility does not guarantee legal compliance in OE or retrofit applications. Refer to vehicle manufacturer, government standards, and SAE standards regarding use and aiming requirements.
- 702C low-beam function headlight is designed only for use in integrated 4-lamp system. It is not designed or sold as a dual function (high / low beam) replacement headlight. Federal law requires horizontal adjustment be disabled for 702C.
Standard Order Quantity: 1
| V702C | Rectangular Quad Low-Beam Headlight; 4 inchx6 inch low beam; display box |
| Bulb Technology | LED |
| Lens Color | Clear |
| Shape | Rectangular |
| Voltage | 12V / 24V |
| Color Temperature | 5200 - 6000k |
| Multi-Volt | Yes |
| Light Color | White |
| Regulatory Compliance | DOT |
| Container Type | Box |
| Bulb/Diode Count | 1 |
| termination | H4 |

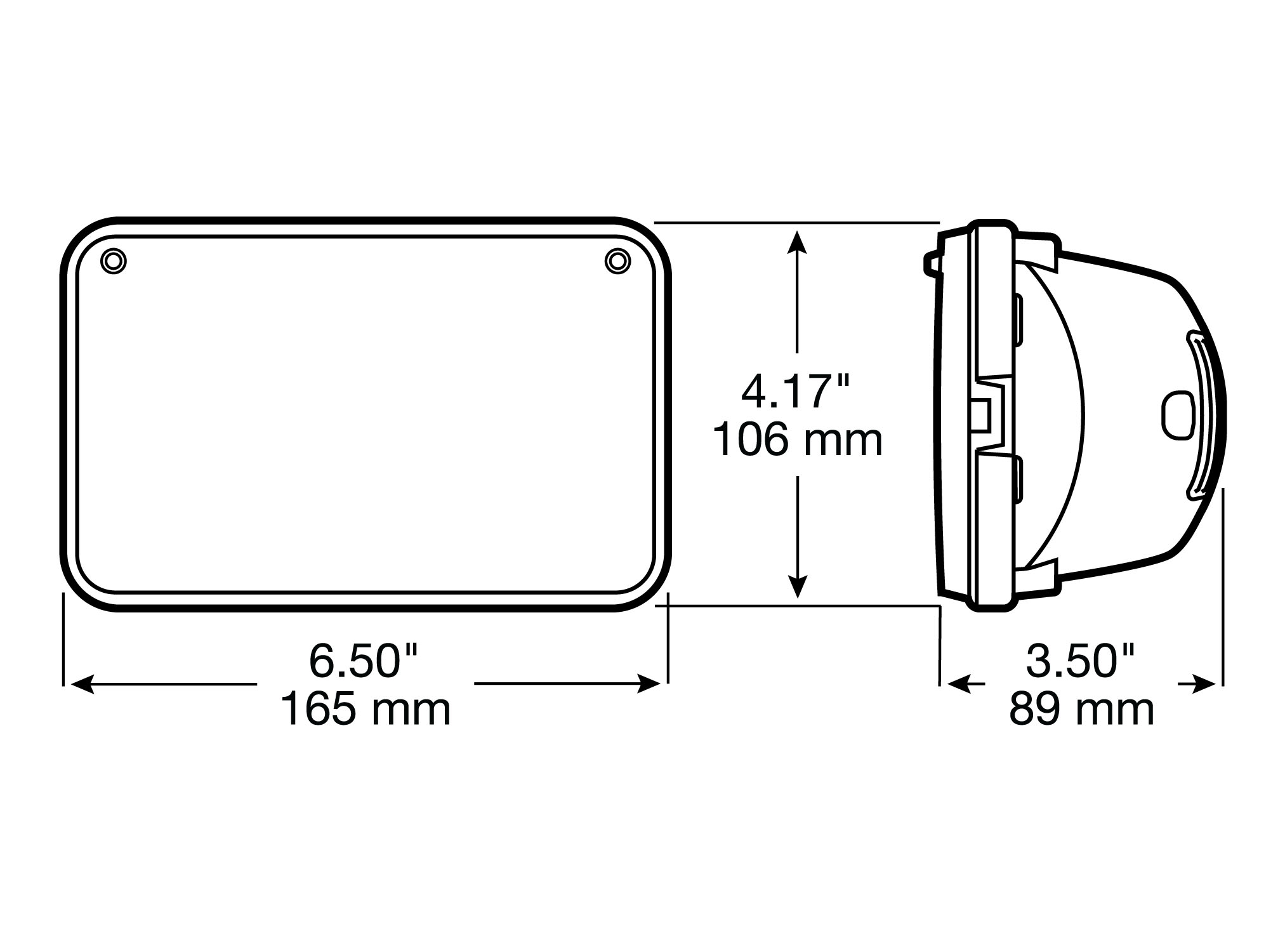

| Height | 4.17 Inch |
| Length | 6.5 Inch |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Width | 3.5 Inch |
| Bulbs Included | Yes |
| Grade Type | Premium |
| Headlight Type | Sealed Beam |
| Mounting Hardware Included | No |
| Street Legal | Yes |
| Truck-Lite Interchange | 27640C |
