703C
Rectangular Quad High Beam Headlight; 4 inchx6 inch high beam; box
703C
Rectangular Quad High Beam Headlight; 4 inchx6 inch high beam; box
- Rectangular Quad High Beam Headlight
- SAE Type 1A1 high beam for use in integrated 4-lamp system.
- Multi-volt design is compatible with both 12V and 24V systems.
- DOT-legal; exceeds FMVSS-108 and CMVSS-108 requirements.
- Hardwired leads terminated w/ standard H4 3-blade connector.
- 1000 source lumens.
- Draws only 17 watts.
- 5200 – 6300k color temperature closely matches natural daylight.
- Certified to meet IP66 ingress protection rating.
- Heavy-duty polycarbonate / cast alloy housing.
- Physical and electrical compatibility does not guarantee legal compliance in OE or retrofit applications. Refer to vehicle manufacturer, government standards, and SAE standards regarding use and aiming requirements.
Standard Order Quantity: 1
| V703C | Rectangular Quad High Beam Headlight; 4 inchx6 inch high beam; display box |
| Bulb Technology | LED |
| Lens Color | Clear |
| Shape | Rectangular |
| Voltage | 12V / 24V |
| Color Temperature | 5200 - 6300k |
| Multi-Volt | Yes |
| Light Color | White |
| Regulatory Compliance | DOT |
| Container Type | Box |
| Bulb/Diode Count | 1 |
| termination | H4 |

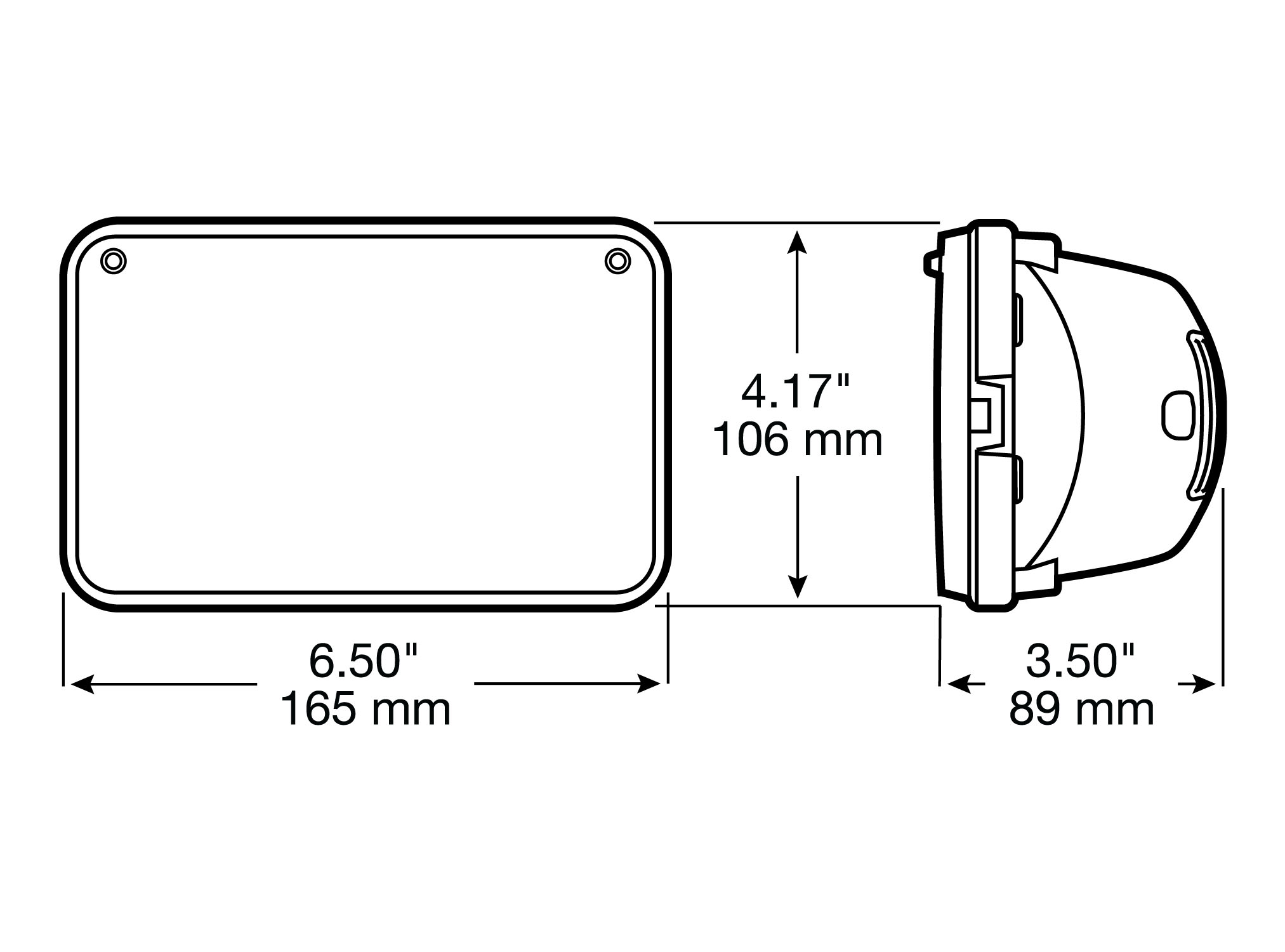

| Height | 4.17 Inch |
| Length | 6.5 Inch |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Width | 3.5 Inch |
| Bulbs Included | Yes |
| DOT Approved | Yes |
| Grade Type | Premium |
| Headlight Type | Sealed Beam |
| Mounting Hardware Included | No |
| Street Legal | Yes |
| Truck-Lite Interchange | 27645C |
